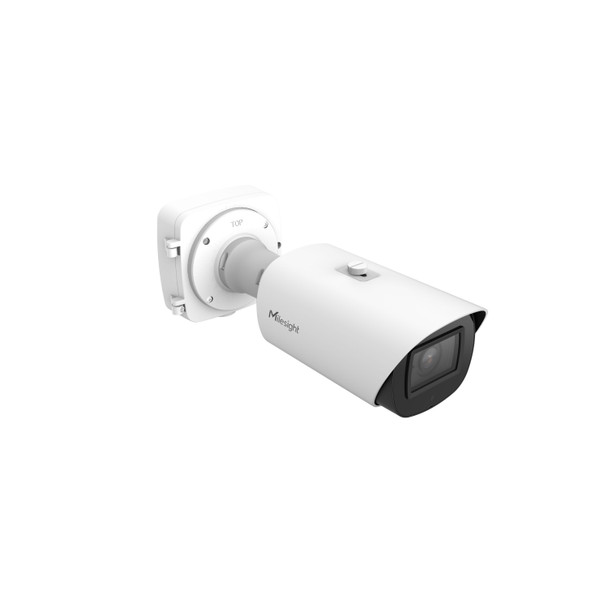

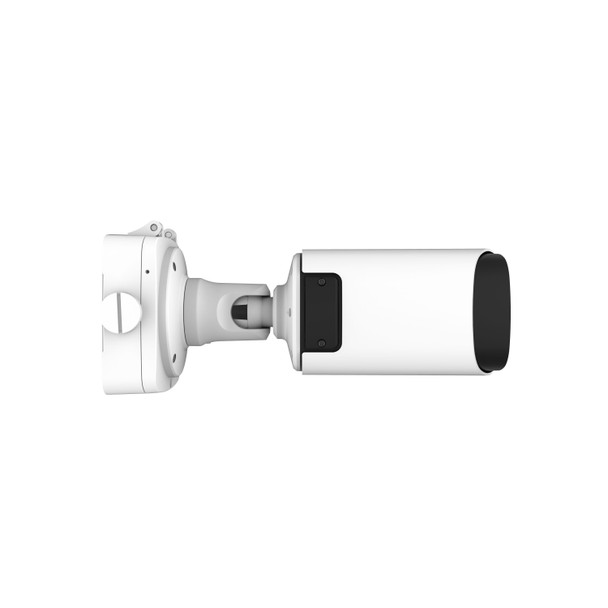

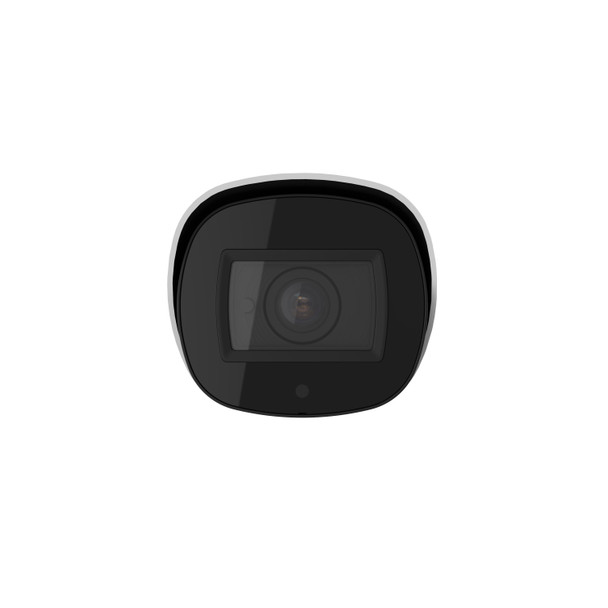

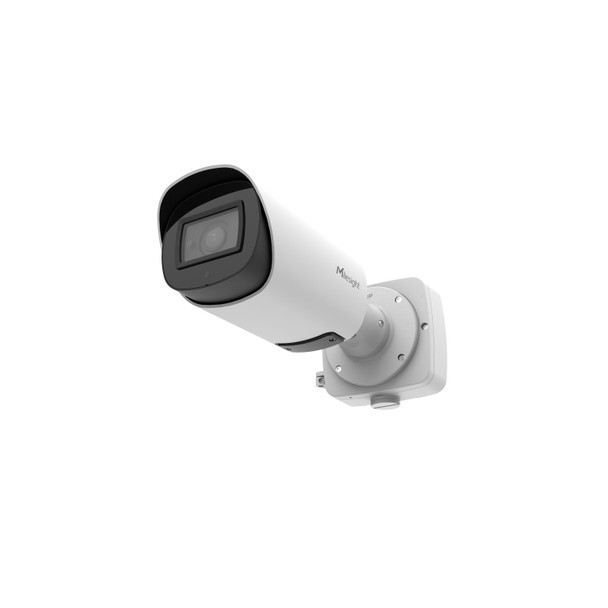

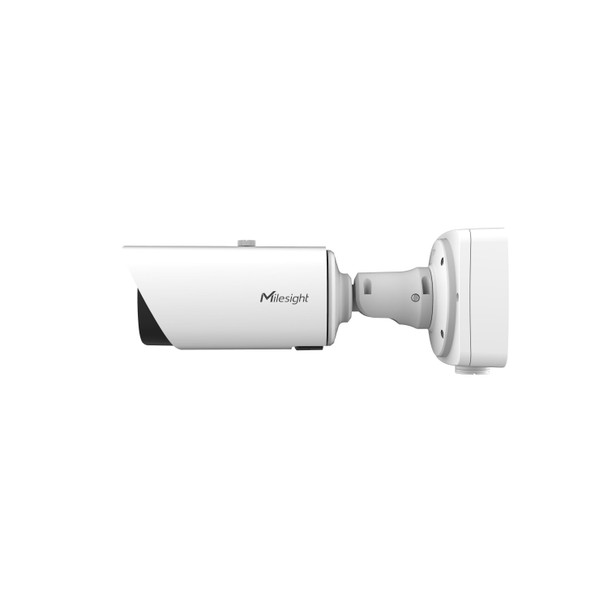

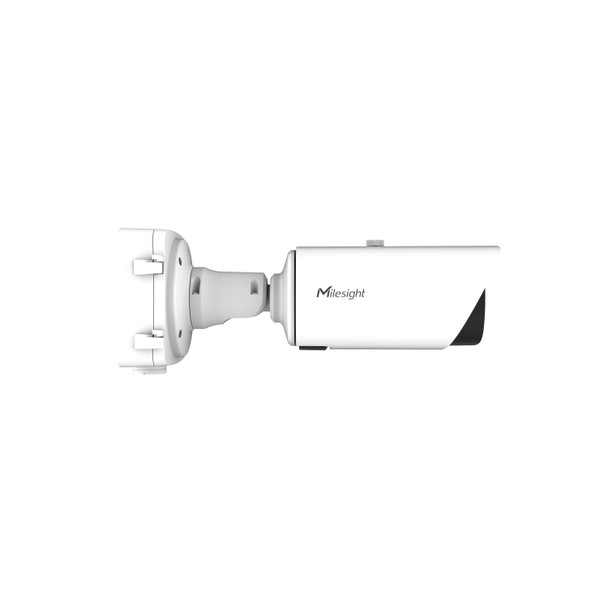

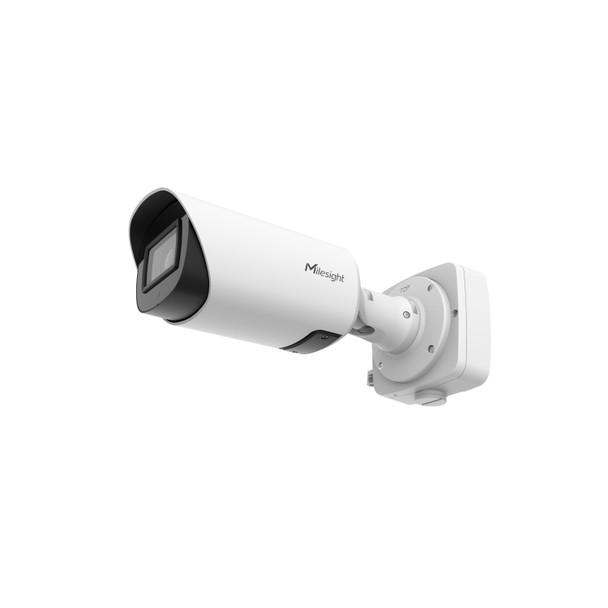

Milesight MS-C5366-FIPE 5MP AI Motorized Pro Plus IR Bullet IP Security Cameras

Milesight MS-C5366-FIPE 5MP AI Motorized Pro Bullet Plus IP Security Cameras provide a perfect balance of superior High detail and low light performance with a wide range of added advances. The 5-megapixel image sensor is backed with a motorized P-Iris lens, true WDR and powerful IR night vision as well as of course efficient video compression methods like H.265 and H.264 ensuring optimal video. Numerous more benefits are included in both hardware as well as software aspects. With the addition of Artificial Intelligence for enhanced detection accuracy and capabilities to ONVIF compliance for universal 3rd party system integration, the devices are ideal for new or existing security camera systems. Other aspects like plug-in free, full function web browser support and on-board storage support via micro-SD also allow stand-alone operation. Consider its strict weatherproof and vandalproof standards including an integrated junction box and the units are clearly ready for harsh outdoor applications nearly anywhere.

Milesight MS-C5366-FIPE Pro+ Bullet Main Features:

• 1/2.8 5 MegaPixel 2592x1944 @ 30fps REAL-TIME
• Motorized lens: 2.7~13.5mm - P-Iris - HFOV 113° ~ HFOV 33°/ VFOV 83° ~ VFOV 25°
• Powerful IR Night Vision 65m (100m & 7~22mm Lens Special Order)
• Color: 0.008 Lux @F1.4 / B/W: 0 Lux IR ON
• Super Wide Dynamic Range (WDR 120dB)
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• Multi-Web Browser Support
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Audio External I/O device
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact Rating
• A62 Junction Box Included
• PoE OR 12VDC Power Support

MS-C5366-FIPE More Specifications:

5MP NDAA AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @F1.4, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
IR Distance Up to 65m (3.0~10.5mm/2.7~13.5mm), up to 100m(7~22mm)
S/N: >55dB
Motorized Lens: 2.7~13.5mm (Default) 3.0~10.5mm/7~22mm (Special Order) @F1.4, P-Iris
Field of View: HFOV 113° ~ HFOV 33°/DFOV 138° ~ DFOV 42° /VFOV 83° ~ VFOV 25° (2.7~13.5mm)
HFOV 94° ~ HFOV 33°/ DFOV 116° ~ DFOV 42° / VFOV 71° ~ VFOV 25° (3.0~10.5mm Special Order)
HFOV 42° ~ HFOV 16°/DFOV 53° ~ DFOV 20° /VFOV 32° ~ VFOV 12° (7~22mm Special)
Lens Mount: Φ14
Focus Control: Auto/Manual
Iris Control: P-Iris Auto/Manual
Video Max. Image Resolution: 5 Megapixel 2592x1944
Frame Rates Per Stream:
Main Stream:
60Hz: 30fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 351x288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access: Support IE/Firefox/Chrome/Safari Browser
Audio Compressions: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support

Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 input/output for External Mic/Speaker
Alarm I/O: 1/1 input/output for External Sensor/Relay
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face: Attribute Recognition, Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas

System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API

General
Working Temperature: -40°~60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3af) / DC 12V±10%
Power Consumption: 6W MAX, 13W MAX (With IR on)
Weather Proof: Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Surge Protection: 4KV
Dimensions: 301mm X 108mm X 98mm
Weight: 1630g
Warranty: 3 Years (5 Year option)
