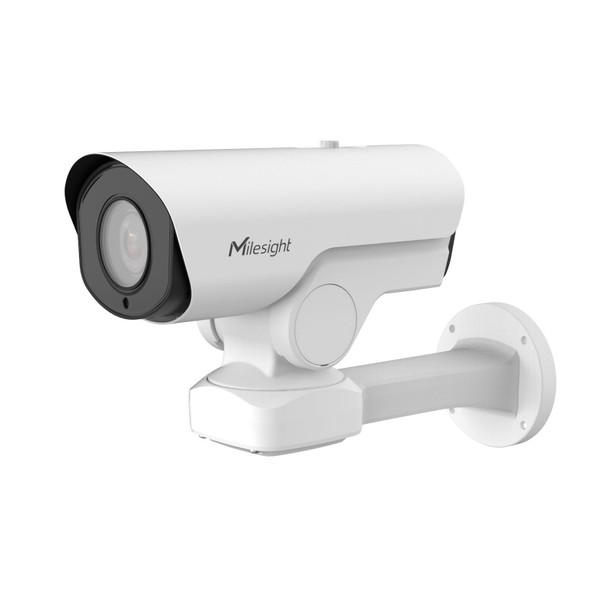

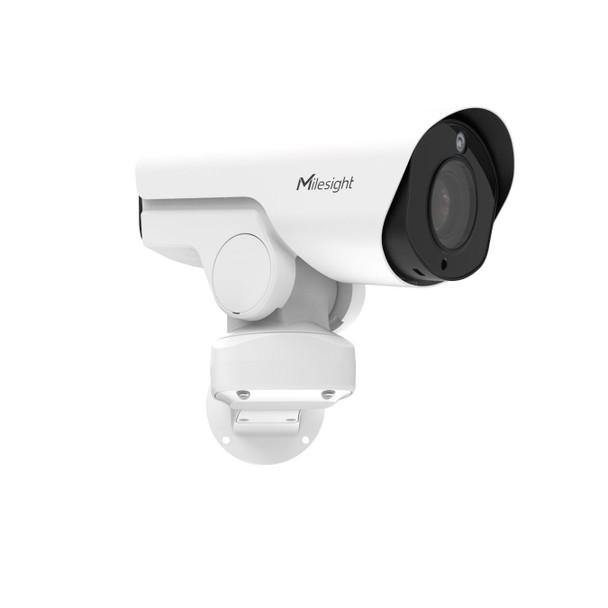

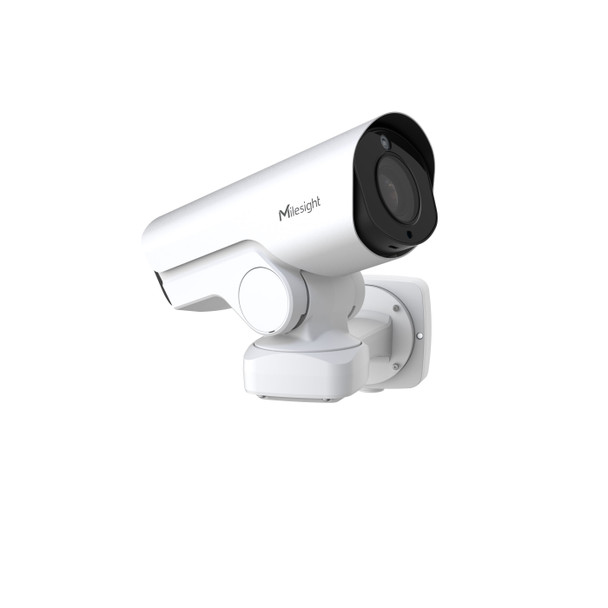

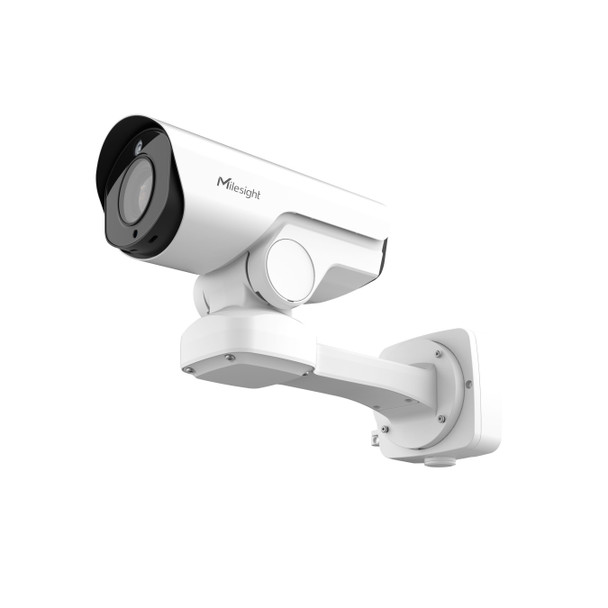

Milesight MS-C5367-X12TPE 5MP AI 12X IR PTZ Bullet Plus IP Security Camera

Milesight MS-C5367-X12TPE 5MP A.I. 12X PTZ Bullet Plus IP Security Cameras feature a new breed of Pan-tilt-Zoom Bullet Camera design that mimic traditional PTZ positioning systems in an ultra compact form factor while boasting similar high performance atttributes. Built with a 5 Megapixel low light image sensor paired with a 12x Optical Zoom plus high-powered IR Night Vision the device delivers uniquely capable active video surveillance. Further cutting edge image enhancements like WDR to Defog combine with the latest video streaming compressions like H.265 ensuring optimal image quality and effeciency. Numerous advantages of the Milesight Bullet PTZ Cameras design can be realized when analyzing its vast IT network protocol support including SIP or VoIP standards, broadcast formats like RTSP or RTMP to the latest ONVIF standards are all on-board promising deep integration support even with 3rd party systems or solutions. The inclusion of AI Deep Learning video analysis with abilities to classify humans and vehicles to aspects like high capacity edge storage or plug-in free full function web browser interface only further assure the endless possiblities.

Milesight MS-C5367-X12TPE 5 MegaPixel AI 12X PTZ Bullet Plus IP Security Camera offers top tier price for performance ratio with rich functionality and pro attributes on every level. Device integration with external I/O devices including alarms sensors, relays to microphone and speakers is all supported. The PTZs further provide flexible 12VDC or PoE (802.3at) operation and are biult to withstand harsh weather conditions with a wide temperature operating range and a robust IP66 weatherproof build. Likewise the Milesight PTZ Bullet Plus IP Cameras offer plentiful Presets, Patrols and Patterns to power off memory or functions like inteligent PTZ Auto-Tracking to guarantee these units ability to meet or exceed the widest range of professional surveillance system requirements. With more advantages that can be quickly summarized, another notable feature is the units built-in White LED which can be used to illuminate or warn would be intruders.

Milesight MS-C5367-X12TPE Main Features:

• 1/2.8" 5MP 2592x1944 @ 30fps Real-time Frame Rate
• 12X AF Optical Zoom Lens 5.3~64mm (HFOV 61° ~ HFOV 5° / VFOV 36° ~ VFOV 2°)
• Color: 0.008 Lux @F1.6 and B/W: 0 Lux IR On
• Super Wide Dynamic Range (WDR 120dB)
• Powerful Long Range IR Night Vision up to 180m
• High Efficiency Video H.265+, H.265, H.264+, H.264
• A.I. based Video Content Analysis Human/Vehicle, People Counting
• ONVIF for Universal Security Camera System Support
• Next-generation PTZ Motor, PTZ Position Display, 3D positioning
• 300 Preset Points, 8 Patrols, 48 presets per patrol; 4 Patterns
• 360° endless Pan, Pan Manual Speed: 0.1°~50°/s, Preset Speed: 50°/s
• -45°~30° Tilt, Tilt Manual Speed: 0.1°~30°/s, Preset Speed: 30°/s
• Multi-port: Alarm I/O and Audio I/O for External Devices
• Supports Micro SD card (1TB max)
• IP66 Weatherproof Rated for harsh outdoor environments
• Wide Operating Temperature Range: -40° ~ 60° C
• Supports PoE+ Or 12VDC Power Source
• NDAA Compliant

Milesight MS-C5367-X12TPE Specifications:

5MP NDAA AI 12X PTZ Bullet Plus Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @F1.5, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
Digital Zoom: 16X
S/N: >55dB
Lens Focal Length: 5.3~64mm, 12X Optical Zoom
Zoom Speed: Approx 4s(Wide-Tele)
Field of View: HFOV 61° ~ HFOV 5°/ DFOV 69°~ DFOV 5°/ VFOV 36° ~ VFOV 2°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 1000/1500mm (Wide/Tele)
Aperture: F1.6~F2.8
Iris Control: Auto
PTZ:
Pan Range/Pan Speed: 360° endless/ Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed: -45°~30°/ Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Functions: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 180m
Video Max. Image Resolution: 2592x1944 (5 Megapixel)
Frame Rates Per Stream:
Primary Stream:
60Hz: 30fps@(2592x1944), 30fps@(2048x1536), 30fps@ (1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 25fps@(2048x1536), 25fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@(704x576), 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576), 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream
60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 Input/Output for External Microphone and Speaker
Alarm I/O: 1/1 Input/Output for External Sensor and Relay
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics / Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
3rd Party Security System Compatibility: ONVIF Profile G & M & S & T, API
Operating Temperature Range: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3at) / DC 12V/3A±10%
Power Consumption: 13W MAX, 23W MAX (With IR on)
Weather Proof Up to IP66-rated for Weather-resistant Performance
Dimensions: 110mm X 337mm X 220mm
Weight: 2.9Kg
Warranty: 2 Years (3 Years Optional)
