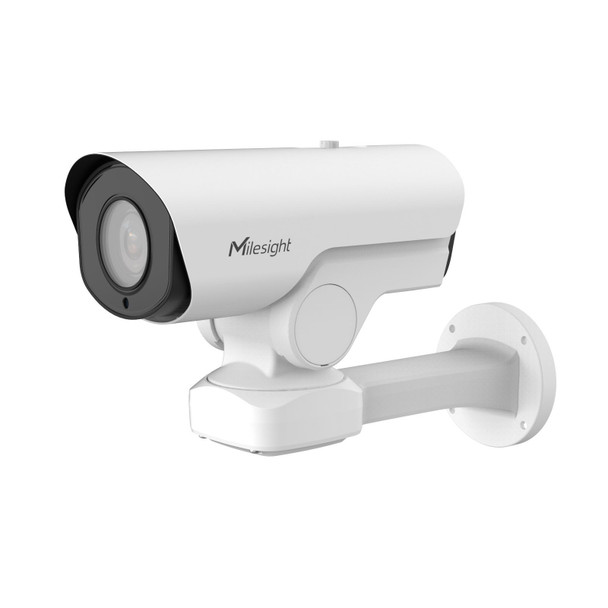

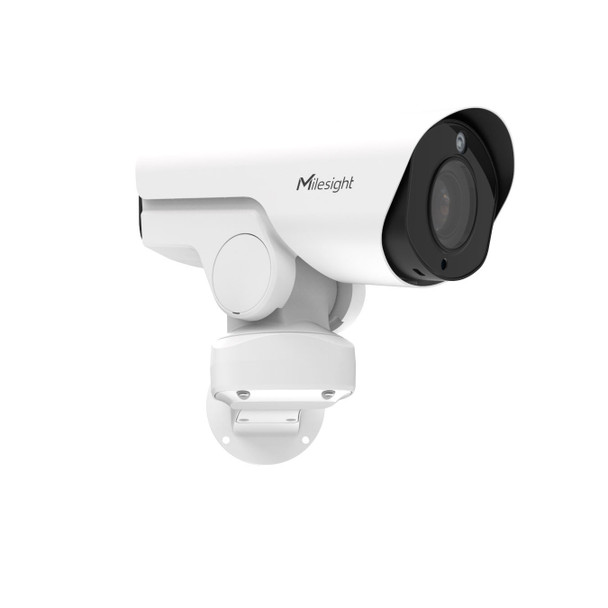

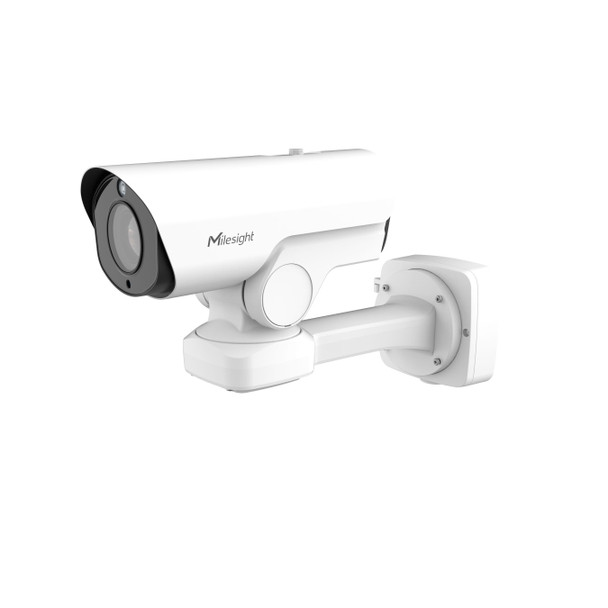

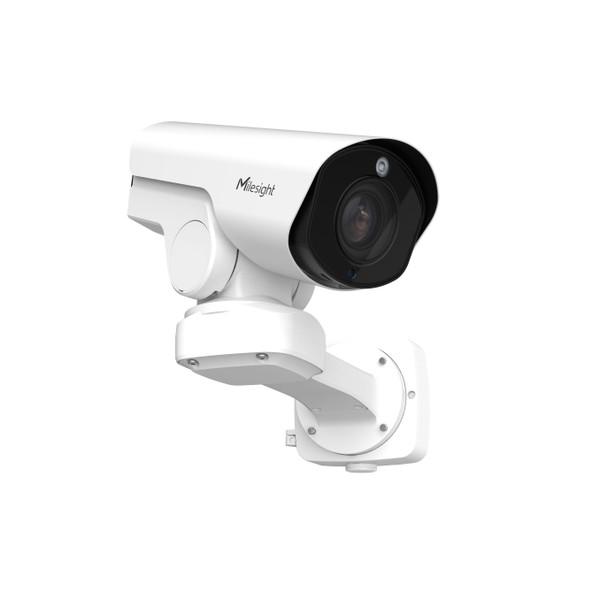

Milesight MS-C5367-X23TPE 5MP AI 23X IR PTZ Bullet Plus IP Security Camera

Milesight MS-C5367-X23TPE 5MP AI 23X PTZ Bullet Plus IP Security Cameras deliver top tier performance solution that rivals the traditional Pan-Tilt-Zoom positioning system in a compact, cost effective bullet style design. Boasting powerful 23x optical zoom paired with Sony Starvis Low Light 5 Megapixel Image Sensor and impressive long range IR Night Vision, the device delivers superb video quality even in zero light scenarios. Added image enhancements like WDR, 3DNR, Defog and rich image adjustment assure excellent video surveillance in all sorts of challenging lighting conditions. This is further combined with the latest video compression methods like H.265 or H.264 and support for multiple video streams to enable easy adaptation to all sorts of video system demands. Despite its compact size or lower cost compared to full size Pan-Tilt-Zoom systems, these units deliver top tier pro attributes often lacking even in higher cost, larger style PTZ systems.

Loaded with high-end functions, Milesight MS-C5367-X23TPE 5MP A.I. 23X PTZ Bullet Plus IP Camera grants plug-in free full function web browser interface, high capacity on-board storage, rich 3rd party system integration with ONVIF, RTSP, RTMP, SIP and other IT protocols. Unique qualities like effective PTZ Auto-tracking to a unique built-in White Light LED for illumination and warning of nearby subjects are all included. As for Pan-Tilt-Zoom operation the device offers continous 360° pan, and -45° to 30° tilt range allowing it to provide active coverage over vast areas. Patrols, Presets, Patterns all are well provided within its functionality while other advantages like 3D Positioning, Auto-Home, Auto-Scan, Power Off Memory and more are also featured. Constructed to weatherproof IP66 standards and supporting a wide temperature operating range the device is fully ready to face harsh outdoor conditions. Supplied with a wall mount bracket optional pole mounts or other mounting options are available.

Milesight MS-C5367-X23TPE Main Features:

• 1/2.8" 2592x1944 (5 Megapixel) @ 30fps Real-time Frame Rates
• 23X AF Optical Zoom Lens 5~117mm (HFOV 55° ~ HFOV 3° / VFOV 42° ~ VFOV 2°)
• Color: 0.008 Lux @F1.5 and B/W: 0 Lux IR On
• Super Wide Dynamic Range (WDR 120dB)
• Powerful Long Range IR Night Vision up to 180m
• High Efficiency Video H.265+, H.265, H.264+, H.264
• A.I. based Video Content Analysis Human/Vehicle, People Counting
• ONVIF for Universal Security Camera System Support
• Next-generation PTZ Motor, PTZ Position Display, 3D positioning
• 300 Preset Points, 8 Patrols, 48 presets per patrol; 4 Patterns
• 360° endless Pan, Pan Manual Speed: 0.1°~50°/s, Preset Speed: 50°/s
• -45°~30° Tilt, Tilt Manual Speed: 0.1°~30°/s, Preset Speed: 30°/s
• Multi-port: Alarm I/O and Audio I/O for External Devices
• Supports Micro SD card (1TB max)
• IP66 Weatherproof Rated for harsh outdoor environments
• Wide Operating Temperature Range: -40° ~ 60° C
• Supports PoE+ Or 12VDC Power Source
• NDAA Compliant

Milesight MS-C5367-X23TPE Specifications:

5MP NDAA AI 23X PTZ Bullet Plus Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @F1.5, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
Digital Zoom: 16X
S/N: >55dB
Lens Focal Length: 5~117mm, 23X Optical Zoom
Zoom Speed: Approx 6s(Wide-Tele)
Field of View: HFOV 55° ~ HFOV 3°/ DFOV 68°~ DFOV 4°/ VFOV 42° ~ VFOV 2°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 1000/1500mm (Wide/Tele)
Aperture: F1.5~F3.5
Iris Control: Auto
PTZ:
Pan Range/Pan Speed: 360° endless/ Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed: -45°~30°/ Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Functions: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 180m
Video Max. Image Resolution: 2592x1944 (5 Megapixel)
Frame Rates Per Stream:
Primary Stream:
60Hz: 30fps@(2592x1944), 30fps@(2048x1536), 30fps@ (1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 25fps@(2048x1536), 25fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@(704x576), 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576), 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream
60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 Input/Output for External Microphone and Speaker
Alarm I/O: 1/1 Input/Output for External Sensor and Relay
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
3rd Party Security System Compatibility: ONVIF Profile G & M & S & T, API
Operating Temperature Range: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3at) / DC 12V/3A±10%
Power Consumption: 13W MAX, 23W MAX (With IR on)
Weather Proof Up to IP66-rated for Weather-resistant Performance
Dimensions: 110mm X 337mm X 220mm
Weight: 2.9Kg
Warranty: 2 Years (3 Years Optional)
