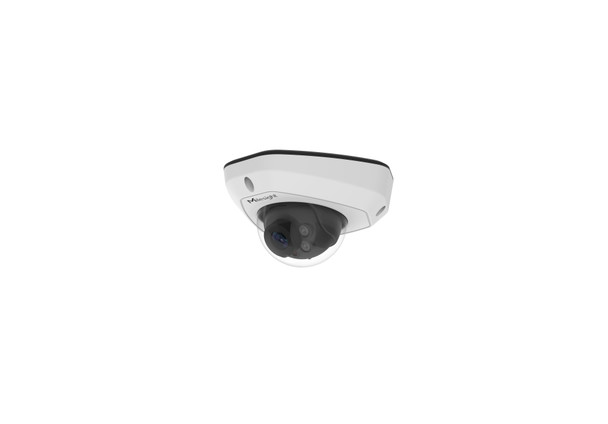

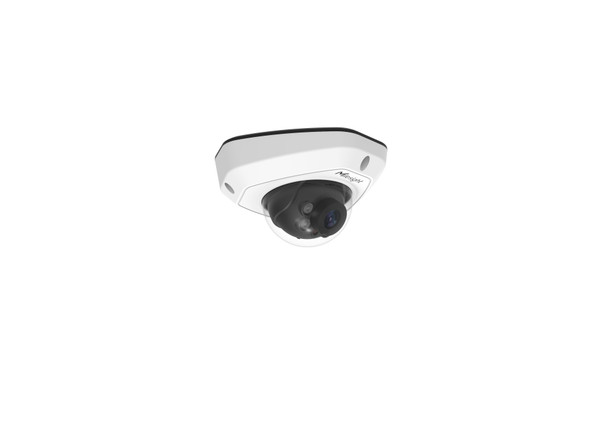

Milesight MS-C5373-PD 5MP AI Vandalproof Mini IP Dome Security Camera

Milesight MS-C5373-PD 5MP AI Vandalproof Mini IP Dome Security Cameras provide the perfect balance of performance and super HD IP video surveillance, not to mention tons of attractive specifications. The 5 Megapixel Image sensor combines with excellent low light performance even without IR illumination activated. Additionally everything from highly effecient video compressions like H.265 or high quality audio codec selections like AAC are all on-board. Equipped with a 2.8mm lens by default (others optional) they also provide superb wide area coverage. Add in factors like the cutting-edge AI (Artificail Intelligence) based detection to numerous universal integration protocols and there is little these ultra-compact, low profile IP dome cameras don't offer. The support for flexible power input, rugged design with IP67 weather rating, IK10 high impact vandal ratings as well as EN50155 mobile surveillance ratings all attest to these units highly adaptable install abilities.



Milesight MS-C5373-PD Main Features:



Milesight MS-C5373-PD



5MP AI Vandal-proof Mini Dome Network Camera

Image Sensor: 1/2.8" Progressive Scan CMOS

Min. Illumination Color: 0.005 Lux @ F1.2, Color: 0.008 Lux @ F1.6, B/W: 0 Lux with IR on

WDR 120dB (Super Wide Dynamic Range)

Lens Options: 2.8mm (Default) 4mm (Optional) 6mm (Special Order) @ F1.6

Lens Mount: M12

Field of View: HFOV 105°/ DFOV 131°/ VFOV 78°(2.8mm default)

               HFOV 86°/ DFOV 108°/ VFOV 63°(4mm optional)

Shutter Time: 1/100000s~1s

Day/Night Mode: Day/Night/Auto/Customize/Schedule

IR Distance Up to 30m

S/N >55dB

Video Max. Image Resolution: 5MP 2592x1944

Frame Rates Per Stream

Main Stream:

60Hz: 30fps @ (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 25fps @ (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream:

60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (704x576, 640x480, 640x360, 352x288)

Tertiary Stream:

60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)

Privacy Masking: Up to 4 areas

ROI: Up to 8 areas

Image Settings: Saturation/Brightness/Contrast/Sharpness

Interface Ethernet: 1*RJ45 10M/100M Ethernet Port

Audio I/O: Built-in Microphone; 1/1 I/O (Multi-interface Version for external Mic/Speaker)

Alarm: I/O Alarm Input/Relay Output 1/1 (Multi-interface Version)

Network Storage: NAS(Support NFS, SMB/CIFS), ANR

Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Audio Compression: G.711/AAC/G.722/G.726

Audio Sampling Rate: 8/16/32/48KHz

Audio Bit Rate: 16~256kbps

Two-way Audio: Supported

Intelligent Analytics: Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

Edge Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 256G

Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur

SIP/VoIP Support: Yes, Voice&Video-over-IP

Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)

Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)

3rd Party System Integration: ONVIF Profile G & Q & S & T, API

Operating Working Temperature: -40° ~ 60°C

Working Humidity: 0~90%(Non-condensing)

Power Supply: PoE(802.3af); PoE(802.3af) or DC 12V ±10% (Multi-interface Version)

Power Consumption: 4W MAX, 6W MAX (With IR on)

Housing Up to IP67-rated for weather-resistant performance

Vandal-proof IK10-rated metal housing

EN50155 Support

Weight: 500g

Dimensions: 118.5mmX110.8mmX65mm

Warranty: 3 Years (5 YEAR Option)
