Milesight MS-C5375-FPD 5MP AI Motorized 5x Vandal IR Turret IP Security Cameras

Milesight MS-C5375-FPD 5MP AI Motorized Vandalproof Turret IP Security Cameras are an ideal choice for superior pro surveillance results. The units incorporate a wealth of highly desired features which of course start with superior HD detail and efficient video compression but add the granular advantages too like Super WDR and IR Night vision with a motorized lens for perfect scene adjustment. The addition of built-in microphone to micro-SD card support are also all on-board while other modern advances like A.I. ensure optimal detection to complete a rich security system solution. Weatherproof and Vandalproof the units are ready to adapt to indoor or outdoor applications plus ONVIF compliance enables easy 3rd party security systems integration.

Milesight MS-C5375-FPD Main Features:

• 5 MegaPixel (2592 x 1944) @ 30fps Real-time
• Motorized lens 2.7~13.5mm / HFOV 94° ~ HFOV 31° & VFOV 68°~ VFOV 23°
• Color: 0.005Lux @ F1.2 / B/W: 0 Lux IR on
• Superb Wide Dynamic Range 120dB
• Powerful IR Night Vision to 50m

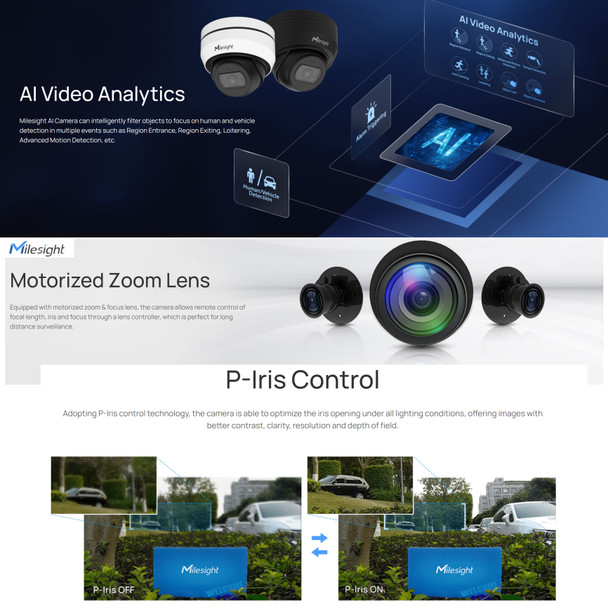

• A.I. (Artificial Intelligence) Vehicle/Human Detection

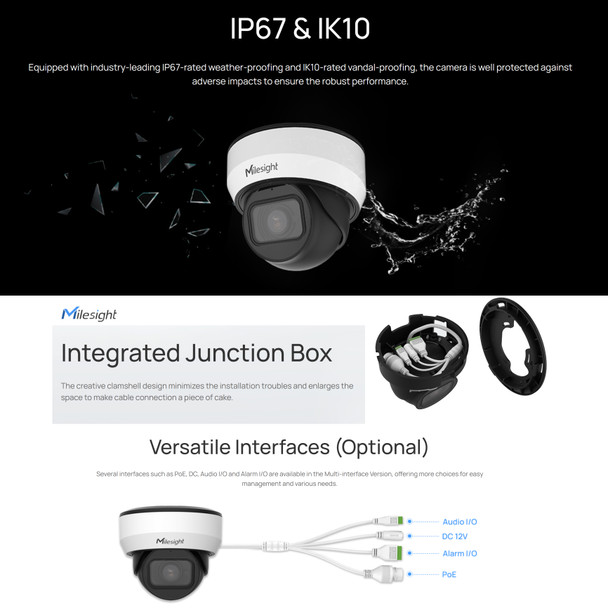

• Weatherproof Outdoor IP67 Rating
• High Impact Vandal IK10 Rating
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Built-in Microphone
• Optional Special Order Audio External I/O / Alarm/Relay External I/O
• Optional Special Order Black Housing (White Default)
• PoE Power Support (w/12VDC Special Order)

Milesight MS-C5375-FPD Specifications:

5MP NDAA AI Motorized Turret Network Camera

Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.008 Lux @F1.4, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
IR Night Vision Range: 50m
S/N: >55dB
Motorized Lens: 2.7~13.5mm / (7 ~ 22mm special order) @F1.4
Field of View: H94° ~ H31°/ D120° ~ D38°/ V68° ~ V23°(2.7~13.5mm)
H37° ~ H15°/ D46° ~ D19°/V28° ~ V11° (7 ~ 22mm Special Order)
Mount: Φ14
Focus Control: Auto/Manual
Video Max. Image Resolution: 5MP (2592x1944)
Frame Rates Per Stream:
Main Stream:
60Hz: 30fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking Up to: 4 areas
ROI Up to: 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: Built-in Microphone; 1/1 (Special Order Multi-Interface Version)
Alarm I/O: 1/1 (Special Multi-interface Version)
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compressions: G.711/AAC/G.722/G.726
Audio Sampling Rates: 8/16/32/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support (Requires External Multi-Interface Version)
Intelligent Analytics
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &Report Count the number of people entering or exiting
System
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
3rd Party System Compatibility: ONVIF Profile G & S & T, API
Operating Temperature Range: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af) / (DC 12V±10% w/Multi-Interface Version)
Power Consumption: 5.5W MAX, 6.5W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance
Vandal-proof IK10-rated metal housing
Weight: 780g
Dimensions: Φ 130mm X 115mm
Warranty: 3 Years (5 Year Option)
