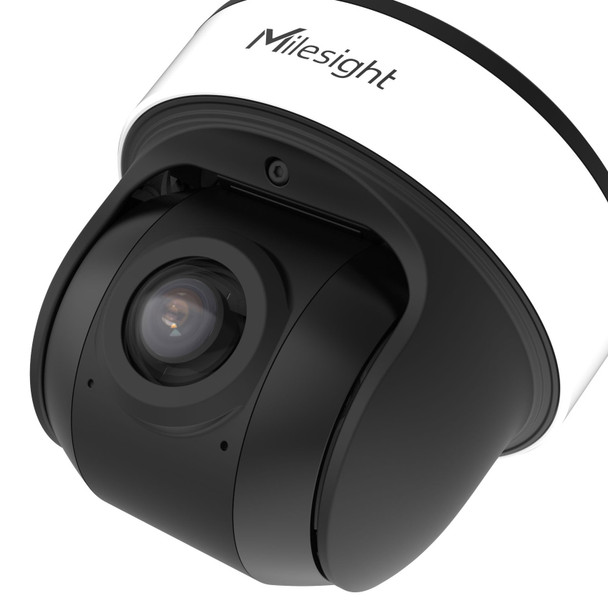

Milesight MS-C5376-PE 5MP AI 180° Panoramic Mini IR Vandal Dome IP Security Camera

Milesight MS-C5376-PE 5MP AI 180° Panoramic Mini IR Vandal Dome IP Security Camera is the superior choice for maximum area coverage with added artificial intelligence. The device boasts a 5 Megapixel image sensor with exceptional low light performance, plus absolute Panoramic IR Night vision as well as true WDR for all types of lighting demands. The unit is also equipped with a built-in Microphone for comprehensive scene awareness and supports integration with 3rd party systems via ONVIF compliance and other modern IT network protocols. The Panoramic Mini IP Dome Camera also can operate as a stand-alone device including a full function web browser interface with multi-browser plug-in free support as well as of course on-board Micro SD card storage slot. The device is also ready for tough environments boasting a weatherproof and vandalproof construction in a unique sort of hybrid Turret and Mini Dome design. The unit additionally has support for 12VDC or PoE and features an integrated junction box for clean, professional installation while of course additional optional accessories are available to accommodate a wide range of install needs.

Milesight MS-C5376-PE Main Features:

• 1/2.8" 5MP 2592x1944 @ 30fps Real-time
• Panoramic Fixed lens: 1.68mm @ F2.0 for HFOV 180° / VFOV 95°
• Panoramic IR Night Vision 15
• Color: 0.008 Lux @F2.0 / B/W: 0 Lux IR ON
• Super WDR 120dB
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Built-in Microphone
• Black Housing Optional (White Default)
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10 rating
• Integrated Junction Box
• PoE OR 12VDC Power Support

Milesight MS-C5376-PE Specifications:

5MP NDAA AI 180° Panoramic Mini Dome Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.005 Lux @F1.2, Color: 0.008 Lux @F2.0, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range
Fixed Lens: 1.68mm @F2.0
Lens Mount: M12
Field of View: HFOV 180°/ VFOV 95°
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
IR Night Vision 180° with IR Illumination Up to 15m
S/N >55dB
Video Max. Image Resolution: 2592x1944(Original)
Primary Stream:
60Hz: 30fps@(2592x1944) (Original), 30fps@ (2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(2592x1944) (Original), 25fps@ (2560x1440, 1920x1080, 1280x720)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Browser Access Support: IE/Firefox/Chrome/Safari Browser
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio Interface: Built-in Microphone
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: N/A
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API
General Working Temperature -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af)/DC 12V±10%
Power Consumption: 5W MAX, 8W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated metal housing
Dimensions: Φ127mm X 107mm
Weight: 853g
Warranty: 3 Years (5 Year option)
