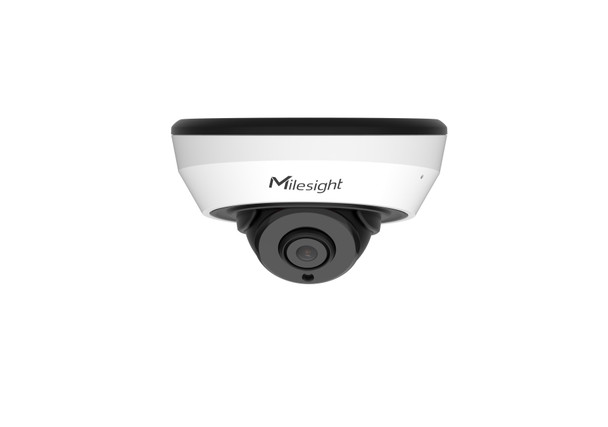

Milesight MS-C5383-PD 5MP A.I. IR Mini IP Turret Security Camera

Milesight MS-C5383-PD 5MP AI IR Mini Network Turret Security Camera is packed with rich features and powerful performance per price ratio for your pro video security system needs. The units deliver a balance of super HD video with cutting edge codecs as well as the latest smart video detection and analysis with Artificial Intelligence engine. Diverse capabilities despite a compact size enable both video and audio IP surveillance in a unit with highly flexible plus easy install design. Additionally, optional black housing or alternate lens options (both special order) as well as optional mounting accessories of multiple sorts promise endless installation possibilities for indoor applications. Furthermore, be it as part of a new or existing system these units can easily integrate with third party systems via supporting multiple modern ONVIF formats. Milesight MS-C5383-PD Mini IR Turret IP Cameras can also operate your video security all on their own with edge storage (SD card) or support other special needs such as with their SIP protocol support.

Milesight MS-C5383-PD Main Features:

• 5MP 2592x1944 @ 30fps Real-time
• Fixed Lens: 2.8mm - HFOV 105° DFOV 131° VFOV 78°
• Color: 0.005 Lux @ F1.2 or 0 Lux B/W w/IR On
• Wide Dynamic Range: 120dB
• IR Night Vision to 20m
• AI (Artificial Intelligence) Vehicle/Human Detection
• Multiple Pro Video Analytics
• Built-in Mic - Multiple Audio Codecs
• Micro SD Card Suppor
• Multiple ONVIF Formats

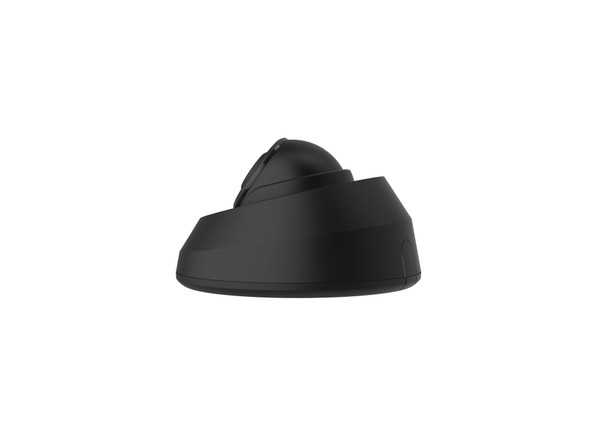

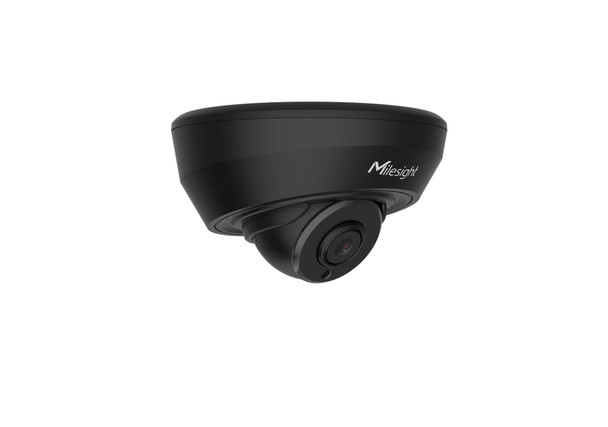

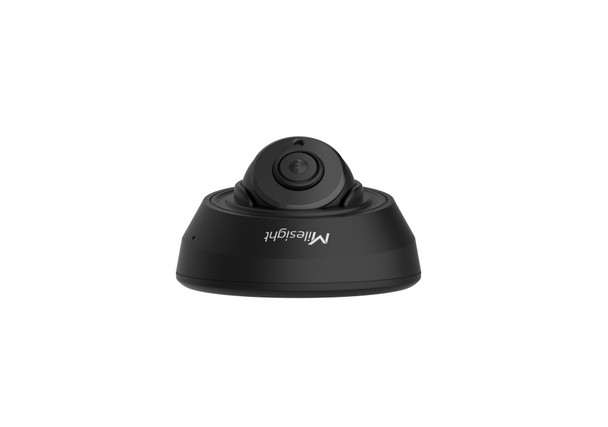

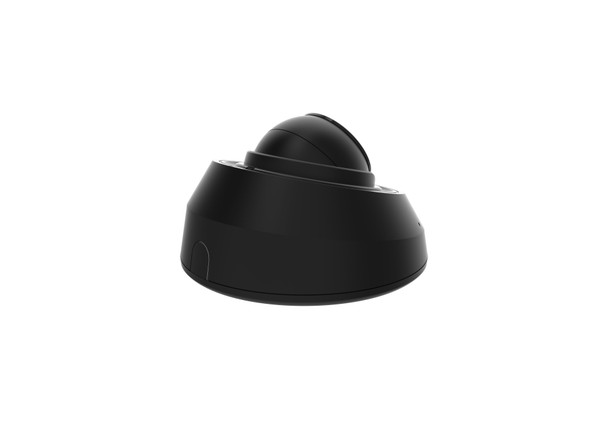

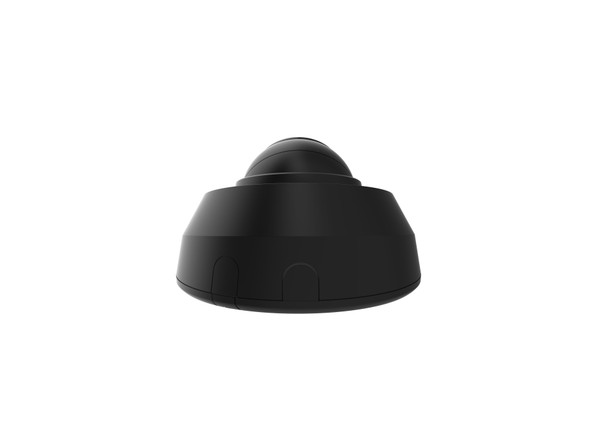

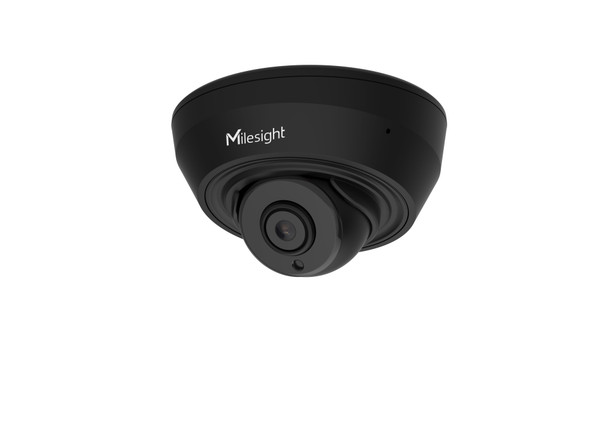

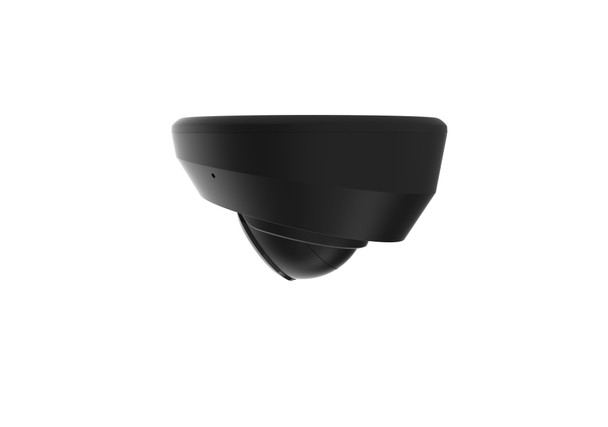

• White Color Casing (Black Special Order)
• PoE Power over Ethernet - Low Power

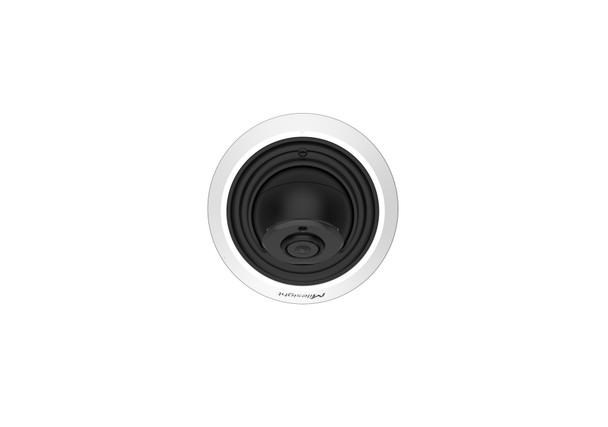

• Optional In-Ceiling Mount Accessory Available
• NDAA Compliant

Milesight MS-C5383-PD Specifications:

5MP AI IR Mini Turret Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR: 120dB Super Wide Dynamic Range
Lens: 2.8mm (Default) 4mm or 6mm (Special Order) @F1.6
Lens Mount: M12
Field of View: H105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time: 1/100000s∼1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
IR Night Vision Distance: Up to 20m
S/N: >55dB
Video Max. Image Resolution: 2592 x 1944
Frame Rates
Main Stream:
60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking: Up to 4 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio Interface: Built-in Microphone
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio: N/A
Intelligent Analytics: Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Image Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & Q & S & T, API
General Working Temperature -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af)
Power Consumption 3.3W MAX, 5W MAX (With IR on)
Weight: 200g
Dimensions: Φ97.8mm X 57.9mm
Warranty: 3 Years (5 Year Option)
Optional In-Ceiling Mount Accessory Available
