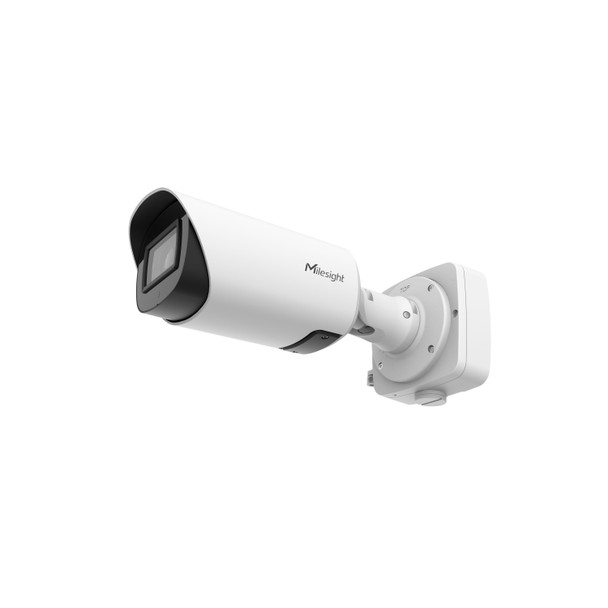

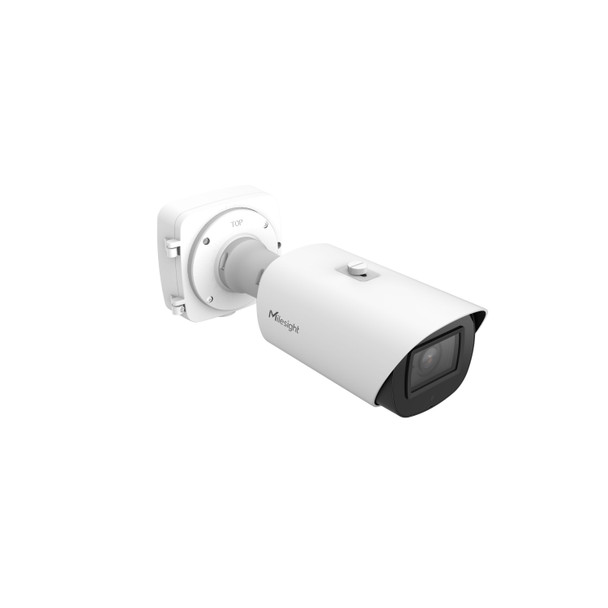

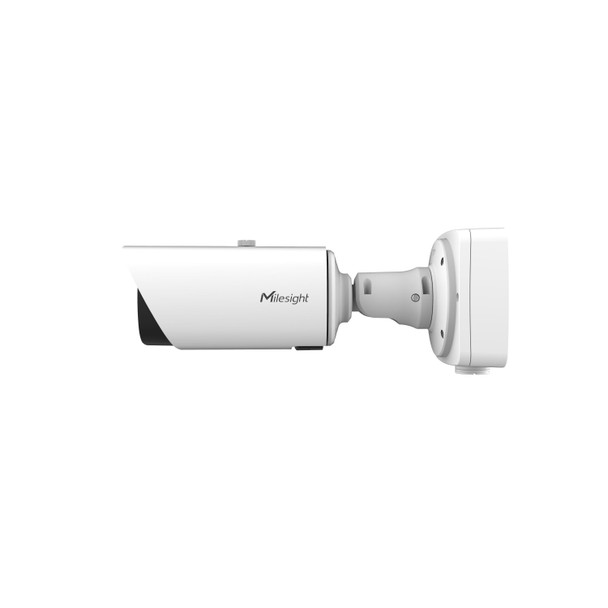

Milesight MS-C8166-FIPE 4K AI 5x Pro Plus IR Bullet IP Security Camera

Milesight MS-C8166-FIPE 4K AI Motorized Pro Plus IR Bullet IP Security Camera enables top of the line video surveillance. Equipped with an Ultra HD 8-megapixel image sensor for impressive 4K video in up to real-time 30fps the device also features a P-iris motorized lens to ensure absolute pixel clarity and easy adjustment to different viewing requirements. Powerful IR Night Vision and True Wide Dynamic Range are also on-board ensuring performance in all types of lighting conditions including those with zero light or high contrast scenes. The device is likewise rich in its software perks like plug-in free web browser support, video and audio compressions and ONVIF compliance for easy 3rd party security system integration. Another highly desired attribute is the Milesight MS-C8166-FIPE 4K IR Bullet IP Camera is equipped with A.I. (Artificial Intelligence) engine for enhanced detection of humans and vehicles and dramatically reduce false alarms compared to legacy detection types. Built with a Vandalproof, Weatherproof design as well as an integrated junction box promise professional install standards and complete readiness in harsh outdoor applications.

Milesight MS-C8166-FIPE Main Features:

• 1/2.8" 8 MegaPixel (4K 3840x2160) @ 30fps Real-time
• Motorized lens: 2.7~13.5mm - P-Iris: HFOV 110° ~ HFOV 33° / VFOV 60° ~ VFOV 18°
• Powerful IR Night Vision 65m
• Color: 0.012 Lux @F1.4 / B/W: 0 Lux IR ON
• Super Wide Dynamic Range (WDR 120dB)
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Multi-Web Browser Support
• Micro SD Card Support
• Audio External I/O device
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• A62 Junction Box Included
• PoE OR 12VDC Power Support

Milesight MS-C8166-FIPE More Specifications:

4K NDAA AI Motorized Pro Bullet Plus Network Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination: Color: 0.012 Lux @F1.4, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
IR Night Vision Range to 65m
S/N: >55dB
Motorized Lens: 2.7~13.5mm@F1.4, P-Iris
Field of View: HFOV 110° ~ HFOV 33°/DFOV 118° ~ DFOV 38°/VFOV 60° ~ VFOV 18°
Lens Mount: Φ14
Focus Control: Auto/Manual
Iris Control: P-iris with Auto/Manual
Video Max. Image Resolution: 4K UHD or 3840x2160 8 Megapixel
Frame Rates Per Stream:
Main Stream:
60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 351x288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access: Support IE/Firefox/Chrome/Safari Browser
Audio Compressions: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 input/output for External Mic/Speaker
Alarm I/O: 1/1 input/output for External Sensor/Relay
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face: Attribute Recognition, Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas

System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API

General
Working Temperature: -40°~60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3af) / DC 12V±10%
Power Consumption: 7W MAX, 9W MAX (With IR on)
Weather Proof: Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Surge Protection: 4KV
Dimensions: 301mm X 108mm X 98mm
Weight: 1630g
Warranty: 3 Years (5 Year option)
