Milesight MS-C8172-FIPE 4K AI 5x IR Vandal Dome IP Security Camera

Milesight MS-C8172-FIPE 4K AI Pro Motorized IR Vandal Dome IP Cameras deliver you the top-notch attributes and modern advantages of IP surveillance. Superior 4K Ultra HD video in up to real-time 30fps is combined with functions like motorized P-iris lens, true WDR plus IR night vision to ensure the best video results in all types of scenery. The aforementioned plus additional hardware benefits are equally matched with sophisticated software advantages ranging from ONVIF compliance to the highly sought new age of A.I. enhanced detection abilities. Other factors ensuring wide adaptability include built-in mic, vandalproof and weatherproof construction plus PoE or 12VDC power input for flexible install practically anywhere needed.

Milesight MS-C8172-FIPE Main Features:

• 1/2.8" 8 MegaPixel (4K 3840x2160) @ 30fps Real-time
• Motorized lens: 2.7~13.5mm - P-Iris: HFOV 96° ~ HFOV 33° / VFOV 53° ~ VFOV 18°
• Powerful IR Night Vision 50m
• Color: 0.012 Lux @F1.4 / B/W: 0 Lux IR ON
• Super WDR 120dB
• A.I. (Artificial Intelligence) Vehicle/Human Detection

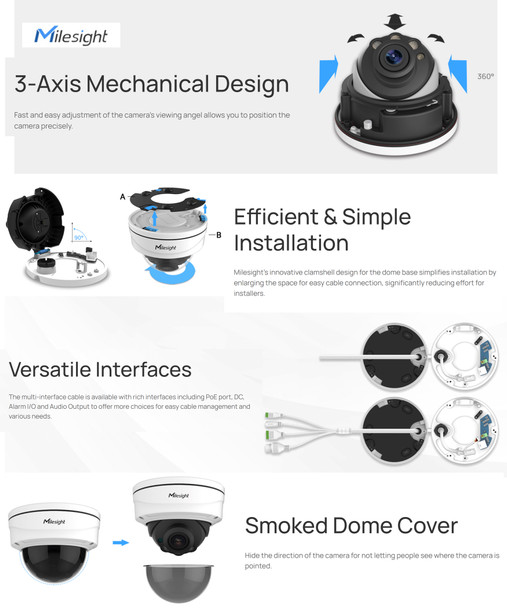

• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Built-in Microphone
• Audio External I/O device
• Alarm/Relay External I/O device support

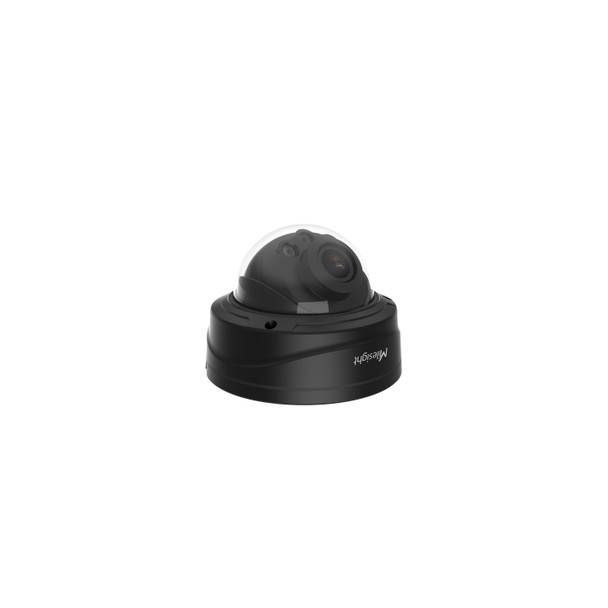

• Black Housing Optional (White Default)
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10 rating
• PoE OR 12VDC Power Support

Milesight MS-C8172-FIPE Specifications:

4K NDAA AI Motorized Pro Dome Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
IR Night Vision: Up to 50m
S/N: >55dB
Motorized 2.7~13.5mm @ F1.4, P-Iris
Field of View: HFOV 96° ~ HFOV 33°/ DFOV 112° ~ DFOV 37°/ VFOV 53° ~ VFOV 18°
Lens Mount: Φ14
Focus Control: Auto/Manual
Iris Control: P-Iris with Auto/Manual
Video Max. Image Resolution (4K 3840x2160 or 8 Megapixel)
Primary Stream:
60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: Built-in Microphone and 1 Audio Output interface
Alarm I/O: 1/1 input/output for external Sensor/Relay
Network
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compressions: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Intelligent Analytics
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face: Attribute Recognition, Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas
System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API
General Working Temperature: -40°~60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af) or DC 12V±10%
Power Consumption: 7W MAX, 9W MAX (With IR on)
Weather Proof: Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight: 1100g
Dimensions: Φ143mm X 108.4mm
Warranty: 3 Years (5 Year option)
