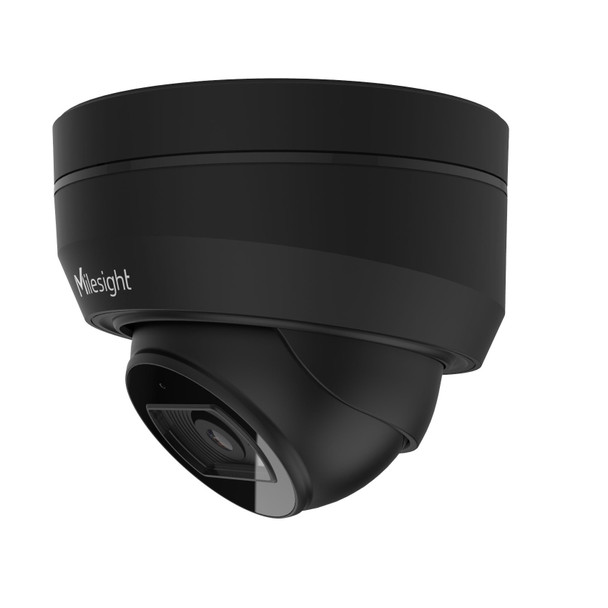

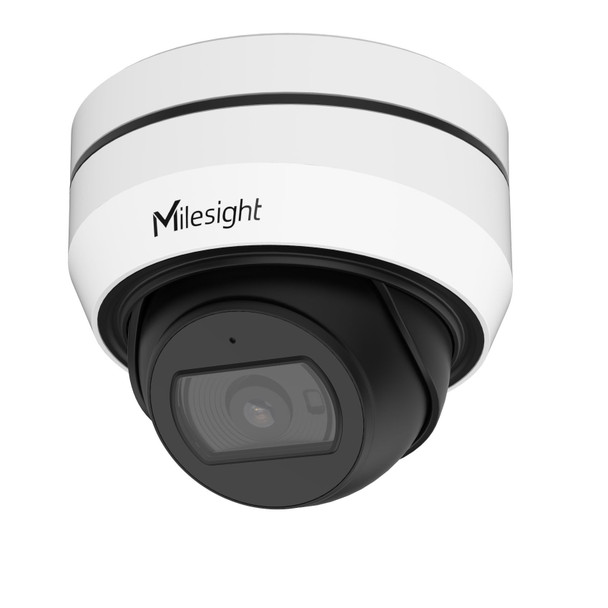

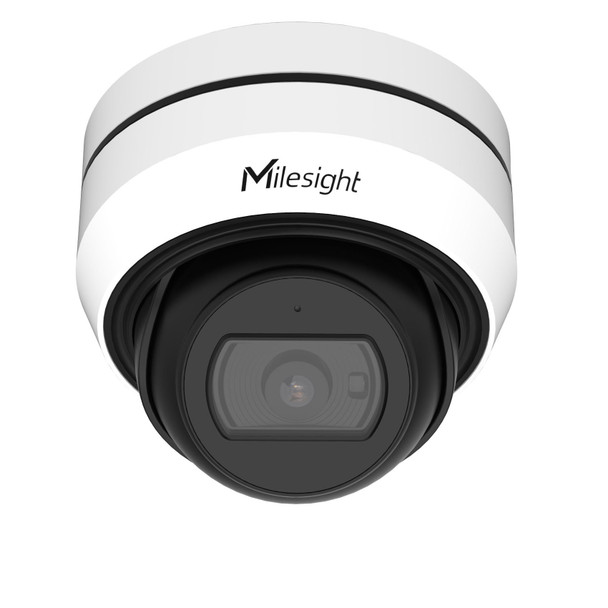

Milesight MS-C8175-FPD 4K AI 5x IR Vandal Turret IP Security Camera

Milesight MS-C8175-FPD 4K AI Motorized IR Vandal Turret Network Security Camera grants all the desired features for top tier IP surveillance. Boasting Ultra HD 4K resolution backed with unfailing IR Night Vision and Super WDR ensure excellent image detail in all sorts of challenging lighting conditions while other advantages include motorized lens and 3 axis gimbals for perfect scene viewing adjustment. All the core abilities from efficient video compression methods like H.265 or H.264 to a built-in microphone promise comprehensive project adaptiveness. The Milesight 4K Vandal Dome IP Cameras are further enhanced by functions like built-in A.I. detection allow a new age of ultra dependable event triggers. Constructed in weatherproof plus vandalproof casing these units also include large capacity micro-SD card support to ONVIF compliance enabling stand-alone security to versatile 3rd party security system support.

Milesight MS-C8175-FPD Main Features:

• 8 MegaPixel (4K 3840 x 2160) @ High Frame Rate 20fps
• Motorized lens 2.7~13.5mm / HFOV 110° ~ HFOV 29° & VFOV 59°~ VFOV 16°
• Color: 0.01Lux @ F1.2 / B/W: 0 Lux IR on
• Superb Wide Dynamic Range 120dB
• Powerful IR Night Vision to 50m
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• Weatherproof Outdoor IP67 Rating
• High Impact Vandal IK10 Rating
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Built-in Microphone
• Optional Special Order Audio External I/O / Alarm/Relay External I/O
• Optional Special Order Black Housing (White Default)
• PoE Power Support (w/12VDC Special Order)

Milesight MS-C8175-FPD Specifications:

4K NDAA AI Motorized Dome Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB (Super Wide Dynamic Range)
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
IR Night Vision Distance Range: 50m
S/N: >55dB
Motorized Lens: 2.7~13.5mm @F1.4
Field of View: HFOV 110° ~ HFOV 29°/ DFOV 129° DFOV 33°/ VFOV 59° ~ VFOV 16°
Mount: Φ14
Focus Control: Auto/Manual
Video Max. Image Resolution 3840x2160
Frame Rates Per Stream:
Main Stream:
60Hz/50Hz: 20fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking Up to: 4 areas
ROI Up to: 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: Built-in Microphone; 1/1 (Special Order Multi-Interface Version)
Alarm I/O: 1/1 (Special Multi-interface Version)
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compressions: G.711/AAC/G.722/G.726
Audio Sampling Rates: 8/16/32/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support (Requires External Multi-Interface Version)
Intelligent Analytics
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report: Count the number of people entering or exiting
System
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
3rd Party System Compatibility: ONVIF Profile G & S & T, API
Operating Temperature Range: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af) / (DC 12V±10% w/Multi-Interface Version)
Power Consumption: 7.4W MAX, 8.4W MAX (With IR on)
Housing: Up to IP67-rated for weather-resistant performance
Vandal-proof IK10-rated metal housing
Weight: 780g
Dimensions: Φ 130mm X 115mm
Warranty: 3 Years (5 Year Option)
