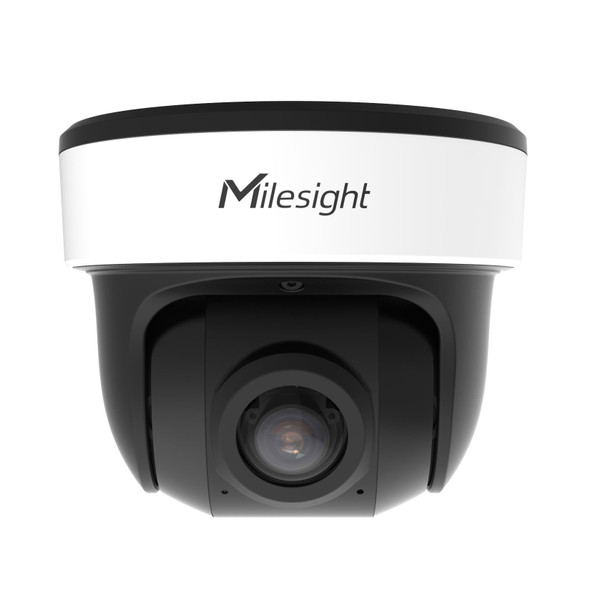

Milesight MS-C8176-PE 4K AI 180° Panoramic Mini IR Vandalproof Dome IP Security Camera

Milesight MS-C8176-PE 4K AI 180° Panoramic Mini IR Vandalproof Dome IP Security Camera delivers super wide area coverage and smart detection for superior IP surveillance. The 4K Ultra HD or 8 Megapixel sensor is equipped for low light performance including true day/night operation with IR night vision. The device has cutting edge video compressions as well as includes a built-in microphone for total scene awareness. Additionally, multi-browser support with plug-in free operations along with Micro SD slot allow the unit to provide a totally stand-alone solution while ONVIF compliance makes third party system integration yet one more of many possibilities. Constructed to strict weatherproof and vandalproof standards with a unique hybrid Turret and Mini dome design that also include a built-in junction box for a low-profile design promise install readiness nearly anywhere. Milesight MS-C8176-PE 4K AI 180° Panoramic Mini IR IP Camera provides easy connectivity with functions like P2P to enhanced video security with Artificial Intelligence (A.I.) powered Video Analytics such as human and vehicle classification to advanced Heat Map functions.

Milesight MS-C8176-PE Main Features:

• 1/2.8" 4K / 8 Megapixel Panoramic View at 20fps high frame rate
• Panoramic Fixed lens: 1.68mm @ F2.0 for HFOV 180° / VFOV 86°
• Panoramic IR Night Vision 15m
• Color: 0.012 Lux @F2.0 / B/W: 0 Lux IR ON
• Super WDR 120dB
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Built-in Microphone
• Black Housing Optional (White Default)
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10 rating
• Integrated Junction Box
• PoE OR 12VDC Power Support

Milesight MS-C8176-PE Specifications:

4K NDAA AI 180° Panoramic Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F2.0, B/W: 0Lux with IR on
WDR 120dB Super Wide Dynamic Range
Fixed Lens: 1.68mm @F2.0
Lens Mount: M12
Field of View: HFOV 180°/ VFOV 86°
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
IR Night Vision 180° with IR Illumination Up to 15m
S/N >55dB
Video Max. Image Resolution: 3840x2160 (4K Original)
Primary Stream:
60Hz: 25fps@(3840x2160), 30fps@ (3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(3840x2160), 25fps@ (3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Browser Access Support: IE/Firefox/Chrome/Safari Browser
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio Interface: Built-in Microphone
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: N/A
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API
General Working Temperature -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af)/DC 12V±10%
Power Consumption: 6W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated metal housing
Dimensions: Φ127mm X 107mm
Weight: 853g
Warranty: 3 Years (5 Year option)
