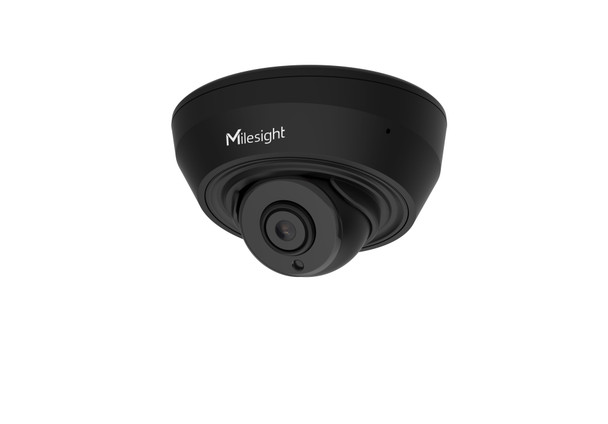

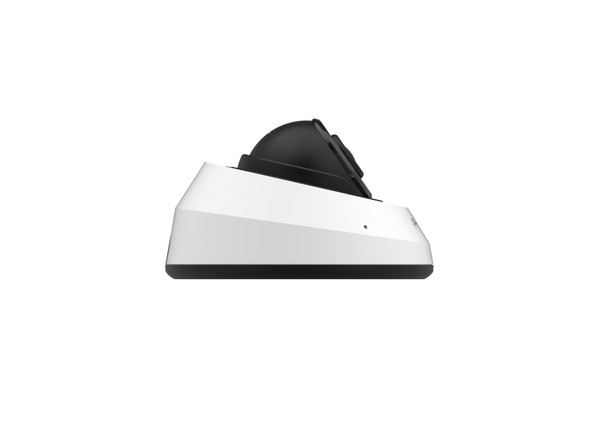

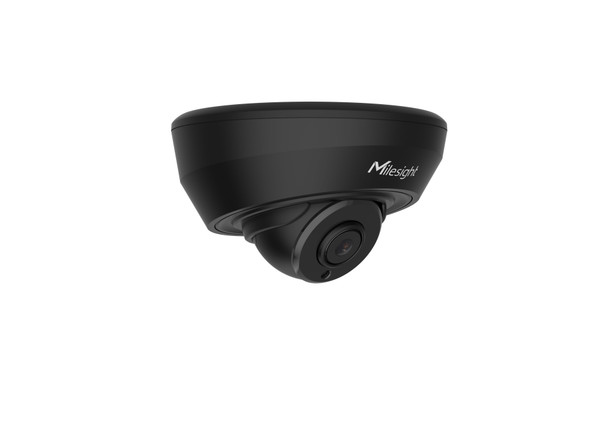

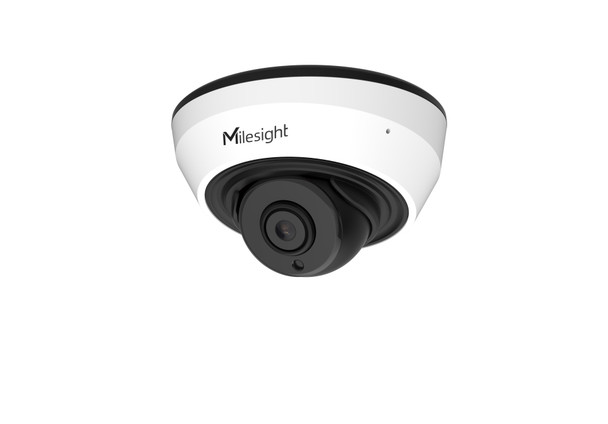

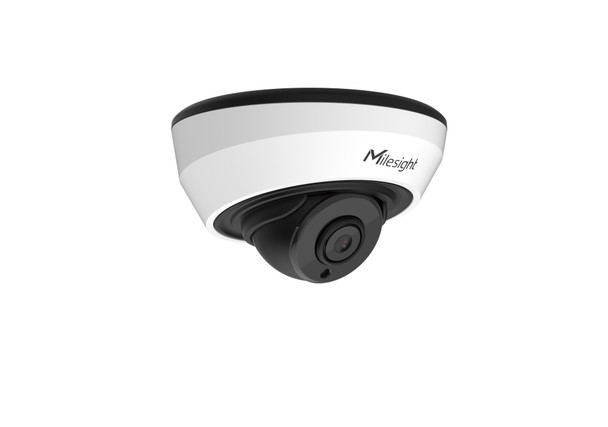

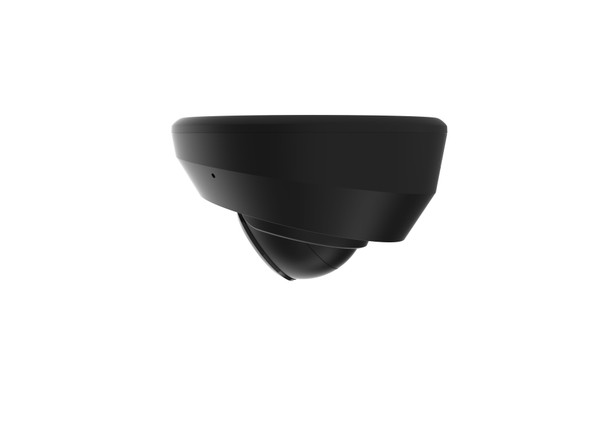

Milesight MS-C8183-SPD 4K AI IR Mini IP Turret Security Camera

Milesight MS-C8183-SPD 4K AI IR Mini Turret IP Security Cameras offer the top desired features in modern network video security and include best in class features at economic cost. Impressive ultra wide area coverage (2.8mm lens) along with Ultra HD 4K video combine with other perks like absolute night vision and built-in mic for comprehensive audio and video IP surveillance capabilities. Their compact low profile design is likewise ideal for discreet indoor installations while 3-axis camera oreintation helps make placement versatile. Additional factors like optional recessed housing for in-ceiling mount or optional (special order) black housing can help perfectly meld these units to all sorts of typical or challenging surfaces as well as perfect asthetic install needs. further equipped with modernized perks like AI (Artificial Intelligence) for superior detection abilities to PoE and universal integration protocols ensure Milesight MS-C8183-SPD 4K Mini IP Turret Cameras are ready to support new or existing IP security camera system demands.

Milesight MS-C8183-SPD Main Features:

• 8 MegaPixel (4K UHD) 3840 x 2160 @ 20fps
• Fixed Lens 2.8mm
• HFOV 110° DFOV 126° VFOV 60°
• Color: 0.01Lux @ F1.2 or B/W: 0 Lux w/IR On
• Wide Dynamic Range: 120dB
• IR Night Vision to 20m
• AI (Artificial Intelligence) Vehicle/Human Detection
• Multiple Pro Video Analytics
• Built-in Mic - Multiple Audio Codecs
• Micro SD Card Support
• Multiple ONVIF Formats
• White Color Casing (Black Special Order)
• PoE Power over Ethernet - Low Power
• Optional In-Ceiling Mount Accessory Available
• NDAA Compliant

Milesight MS-C8183-SPD Specifications:

4K AI IR Mini Turret Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @F1.2, Color: 0.012 Lux @F1.6, B/W: 0 Lux with IR on
WDR: 120dB Super Wide Dynamic Range
Lens: 2.8mm (Default) 4mm or 6mm @ F1.6
Lens Mount: M12
Field of View: H110°/D126°/V60°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time: 1/100000s ~ 1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
Infrared Night Vision Distance Up to 20m
S/N:>55dB
Video Max. Image Resolution: 3840 x 2160 (4K UHD)
Frame Rates
Main Stream:
60Hz/50Hz: 20fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking: Up to 4 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio Interface: Built-in Microphone
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio: N/A
Intelligent Analytics: Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Image Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & Q & S & T, API
General Working Temperature -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af)
Power Consumption 3.3W MAX, 5W MAX (With IR on)
Weight: 200g
Dimensions: Φ97.8mm X 57.9mm
Warranty: 3 Years (5 Year Option)
