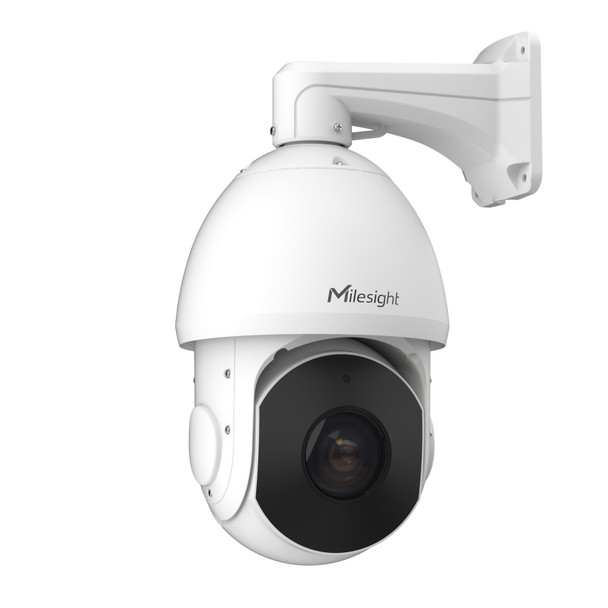

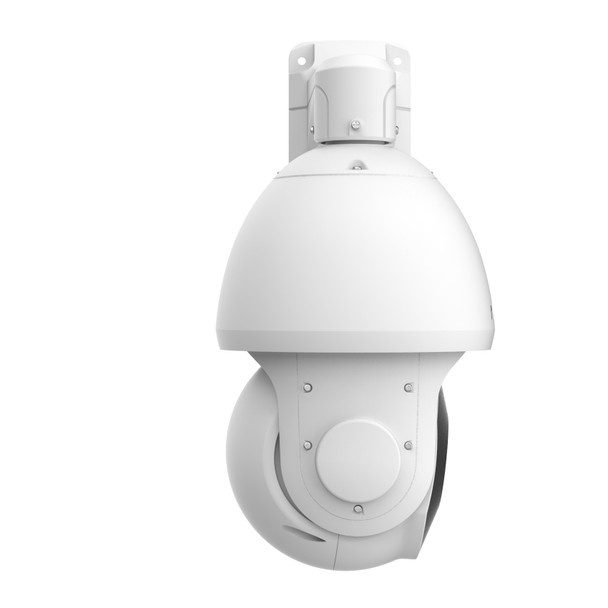

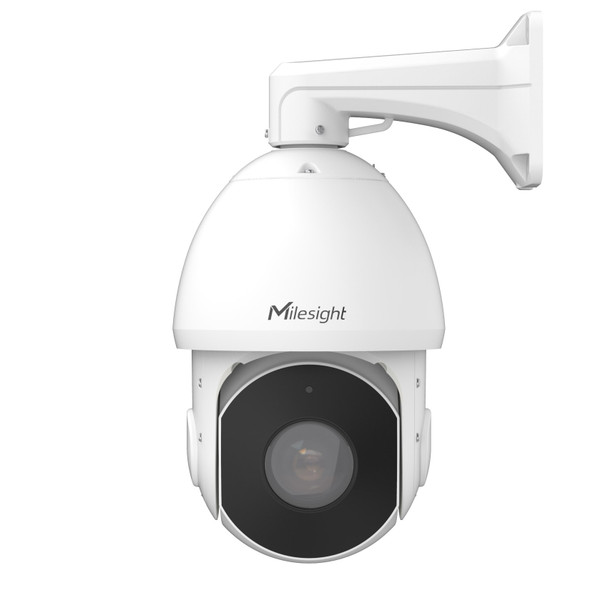

Milesight MS-C8241-X36PE 4K AI 36X Speed Dome IR PTZ IP Security Camera

Milesight MS-C8241-X36PE 4K AI 36X Speed Dome IR PTZ IP Security Camera is best in class choice for pro functions and superior Ultra HD network video surveillance. Outfitted with an 8-megapixel image sensor granting real-time 4K UHD video the device is built to perform for all sorts of lighting conditions with added IR Night Vision and image enhancements like WDR. The unit is further equipped with high performing Pan-tilt-Zoom operation including high accuracy and high-speed operation plus long-range optical zoom. Further advantages including cutting edge compression methods like H.265 or H.264 to high quality Audio codecs like AAC are all included. With diverse IT protocol support, the device goes beyond the ONVIF integration capabilities of the modern IP security camera system and can suite well a wide range of other professional purposes like live broadcast.

Built to deliver the latest in technological advances, users will find every desired perk rivaling almost any pro-grade security camera across the board from user operation to intelligent operations including A.I. powered video content analysis. Support all the professional demands of Pan-Tilt-Zoom Security Cameras the device can support RS-485 connections to vast I/O integration for external Alarm and Audio devices. Built to operate in extreme temperatures, the PTZ features and IP66 weatherproof outdoor rating while also offering optional IK10 high impact or Smart Rain-sensing Wiper equipped variations. With superb 4k Ultra HD to high-speed manual control up to 400° Pan per second, up to 320° tilt per second, 36x long range optical zoom, the device stands aside or above all other leading Pro PTZs in the market. The Milesight A.I. 36x 4k IR Network PTZ Security Camera is provided with the standard wall mount but also offers a variety of popular optional mounts for pole mounting, ceiling pipe mount and more.

Milesight MS-C8241-X36PE Main Features:

• 1/1.8" 8MP(4K) 3840x2160 @ 30fps
• 36X AF Optical Zoom Lens 5.7~205.2mm / HFOV 66° ~ HFOV 3° / VFOV 41° ~ V1°
• Color: 0.009 Lux @ F1.55 / B/W: 0 Lux IR On
• Super WDR 120dB
• IR Night Vision Up to 300m
• Efficient Video H.265+, H.265, H.264+, H.264
• 360° endless Pan, 90° auto flip Tilt
• Pan Manual Speed: 0.1°~400°/s, Preset Speed: 400°/s
• Tilt Manual Speed: 0.1°~320°/s, Preset Speed: 320°/s
• 255 Preset Points
• 8 Patrols, 48 presets per patrol, 4 Patterns
• Supports Micro SD card 1TB max
• RS-485 Control Support
• Alarm I/O 4/2 For External Sensors/Relays
• Audio I/O For External Microphone/Speaker
• A.I. (Artificial Intelligence) Enhanced Human/Vehicle Detection/Classification
• Supports Video Content Analysis & People Counting
• Wall Mount Bracket A41 (Default)
• Pendant Mount Bracket A42 (Special Order)IP66 Weatherproof rating
• IK10 High Impact version (Special Order)
• AC 24V or PoE+ Power Input
• 6KV Surge Protection

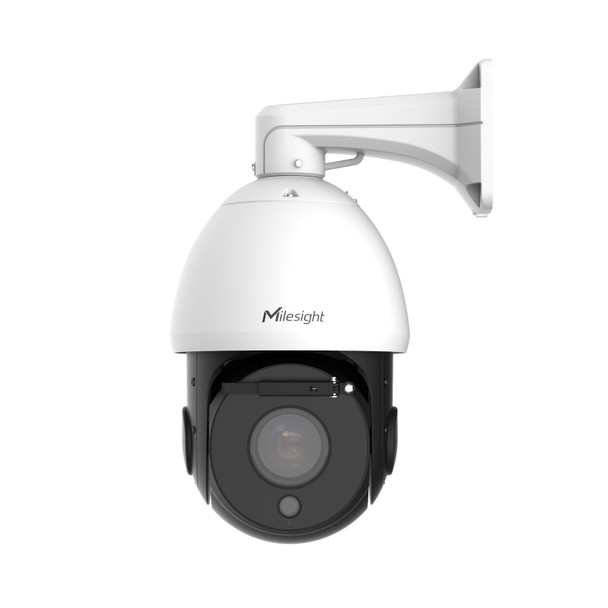

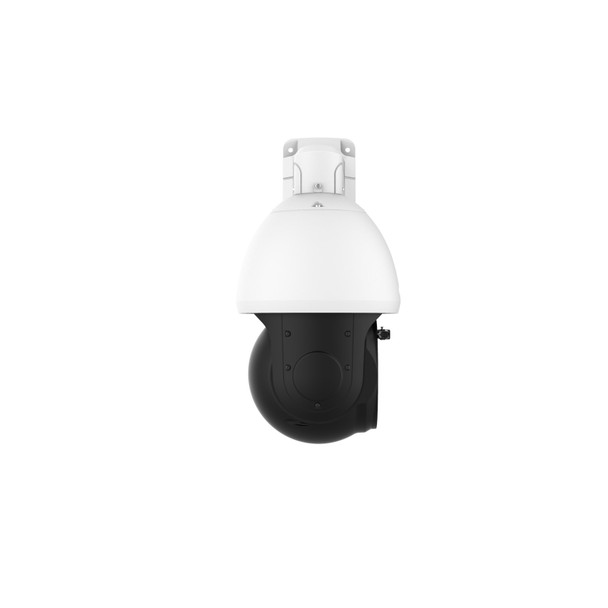

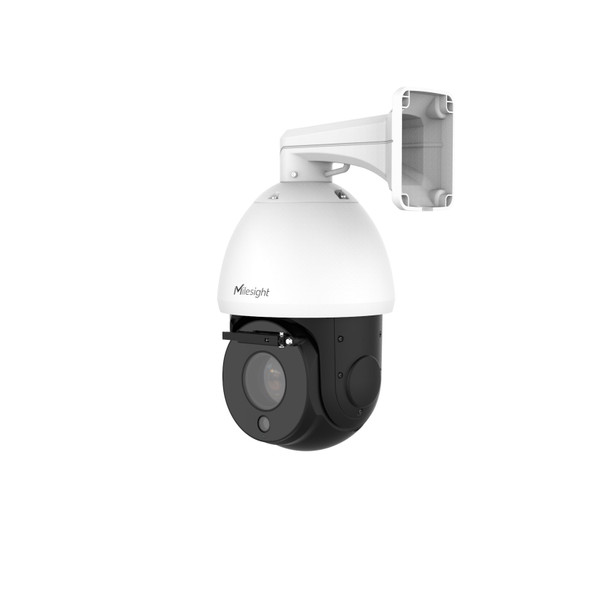

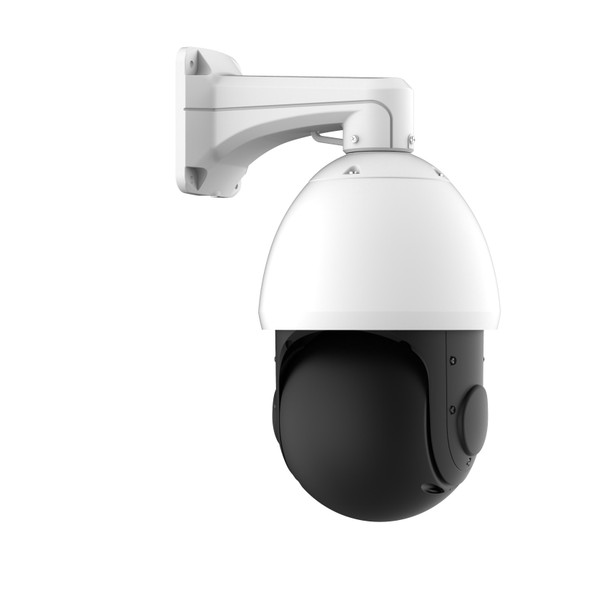

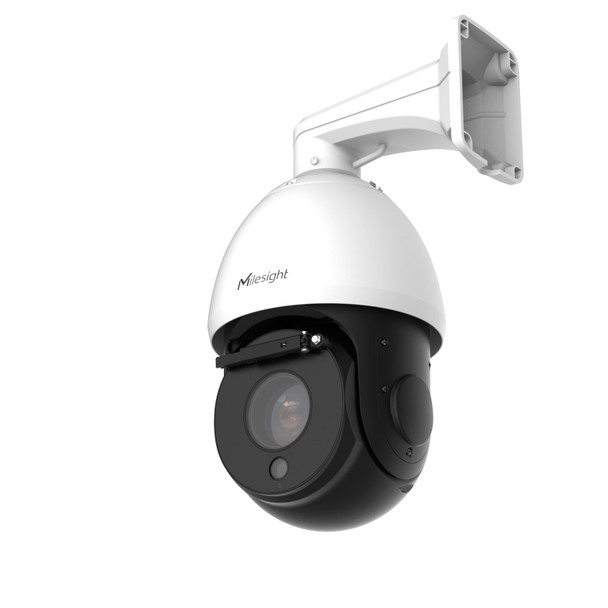

• OPTIONAL Smart Rain-sensing Wiper Model Available: MS-C8241-X36PE-W
• NDAA COMPLIANT

Milesight MS-C8241-X36PE Specifications:

4K NDAA AI 36X Speed Dome Network Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.009 Lux @F1.55, B/W: 0 Lux with IR on
WDR: 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Digital Zoom: 16X
Lens Focal Length: 5.7~205.2mm, 36X Optical Zoom Lens
Zoom Speed: Approx 7s(Wide-Tele)
Field of View: HFOV 65° ~ HFOV 2.5°/ DFOV 72° ~ DFOV 2.9°/ VFOV 40° ~ VFOV 1.4°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 1200/1500mm (Wide/Tele)
Aperture: F1.5~F4.8
Iris Control: Auto
PTZ Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range/Tilt Speed: -5°~90° (Auto Flip)/ Tilt Manual Speed: 0.1°~320°/s, Tilt Preset Speed: 320°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Function: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 300m
Irradiation Angle: Auto/Manual
Video Max. Image Resolution: 3840x2160 (8 Megapixel / 4K UHD)
Primary Stream:
60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 4/2
RS485: Support
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Edge Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Condition Temperature: -40° ~ 60° C / Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3at)/ AC 24V/3A ±10%
Power Consumption: 13W MAX/ 28W MAX (With IR on)
Weather Proof/Housing Up to IP66-rated for Weather-resistant Performance
Vandal-proof IK10-rated Metal Housing (Special Order Option)
Wiper (Special Order Option): Support
Heater: Support
Surge Protection: 6KV
Dimensions/Weight: Φ205mm X 308mm / 4Kg
Warranty: 2 Years/ (3 Years Optional)
