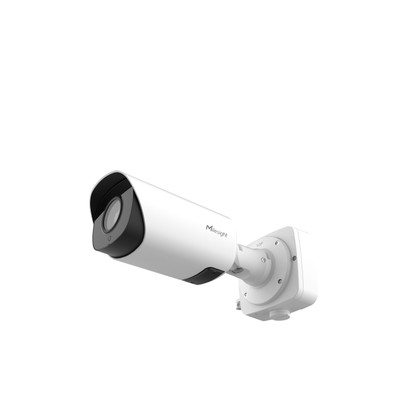

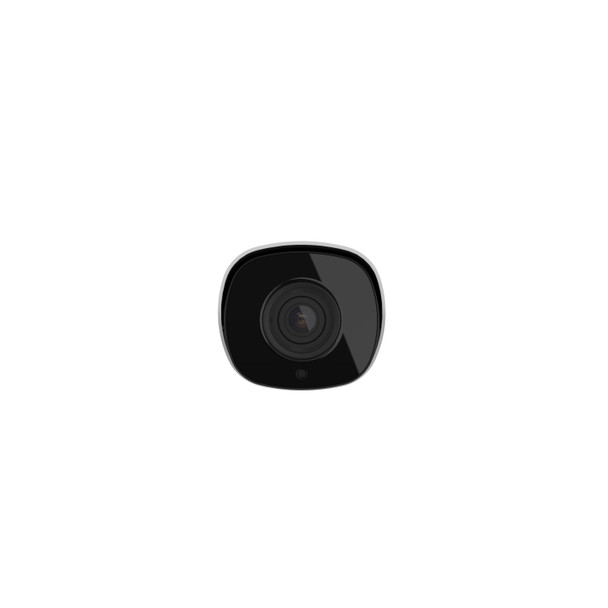

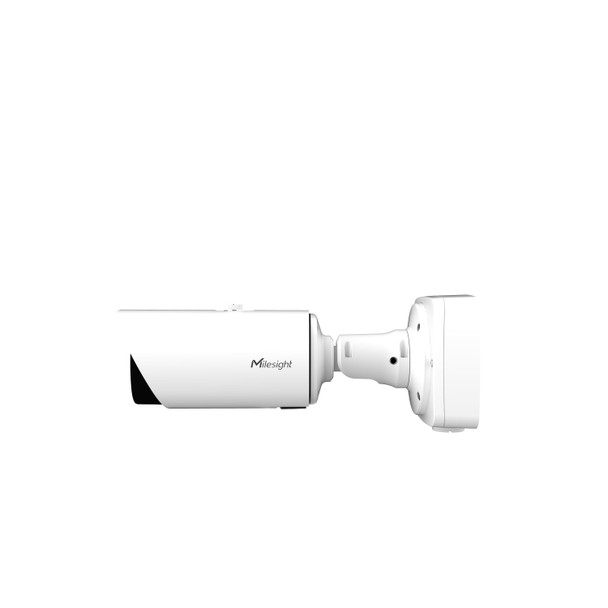

Milesight MS-C8266-X4PE 4K AI 4X Zoom Pro Plus IR Bullet IP Security Camera

Milesight MS-C8266-X4PE 4K AI 4X Zoom Pro Plus IR Bullet Security Camera deliver superb performance, advanced smart functions and rich feature sets with few rivals in the market. Adopting a Sony Starvis Super Low Light 8-Megapixel Sensor, the device includes layers of advanced image processing to unique long range zoom lens and long-range IR night vision performance for stunning capabilities. Likewise cutting-edge video compressions, high quality audio codecs, diverse multi-streaming to vast network protocol support like ONVIF, SIP or RTMP all combine to promise optimal video performance plus flexible system integration. From free mobile apps and pc software to its plug-in free web browser interface or its large edge storage capacity, the device is clearly able to provide professional surveillance, even as a stand-alone device.

Milesight MS-C8266-X4PE 4K AI 4X Zoom Pro+ IR Bullet Cameras are an ideal choice for applications demanding top tier performance and long zoom range in a fixed security camera design. The device is built solid with a high weatherproof and vandalproof rated construction that also includes perks like a built-in junction box, super low temperature operation to added surge protections. Integration with external devices like microphones, speakers, alarm sensors or relays is further all supported while single cable PoE camera install enables easy deployment. The device in addition to its suite of A.I. empowered video analytics including advantages like human / vehicle classifications also provide numerous smart alarm trigger functions offers heat maps, face recognition and more.

Milesight MS-C8266-X4PE Main Features:

• 1/1.8" 8 MegaPixel (3840x2160) 4K @ 30fps Real-time
• Zoom lens: 8-32mm, 4X Optical Zoom: HFOV 44° ~ HFOV 13°/ VFOV 25° ~ VFOV 7°
• High Power IR Night Vision up to 180m
• Color: 0.009 Lux @F1.6, B/W: 0 Lux with IR on
• Super Wide Dynamic Range (WDR 120dB)
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Multi-Web Browser Support
• Micro SD Card Support
• Audio External I/O device
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• Optional Heating Module (for -60°C)
• A62 Junction Box Included
• Surge Protection
• PoE OR 12VDC Power Support

Milesight MS-C8266-X4PE Camera Specifications:

NDAA AI 4X Pro Bullet Plus Network Camera
Image Sensor: 1/1.8″ Progressive Scan CMOS
Min. Illumination:
Color: 0.009Lux@F1.6
B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens: 8~32mm, 4X Optical Zoom
Mount: Φ14
Field of View: H44°~H13°/D51°~D15°/V25°~V7°
Focus Control: Auto/Manual
Aperture: F1.6-F1.7
Iris Control: Auto
Shutter Time: 1/100000s~1s
IR Distance Up to 180m
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB

Video
Max. Image Resolution: 3840x2160 / 4K / 8-Megapixel
Primary Stream:
60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI: Up to 8 areas
Image Setting: Brightness/Contrast/Saturation/Sharpness

Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 1/1

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support

Intelligent Analytics
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas

System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API

General
Working Temperature:
-40°~60°
-60°~60°C (Optional for Heater Version)
Working Humidity: 0~95%(Non-condensing)
Power Supply: PoE (802.3af) / DC 12V±10%
Power Consumption:
9W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10°C, Heater off: above 25°C
Housing: Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection: 4KV
Weight: 1445.8g
Dimensions: 320mm X 134mm X 126mm
Warranty: 3/5 Years
