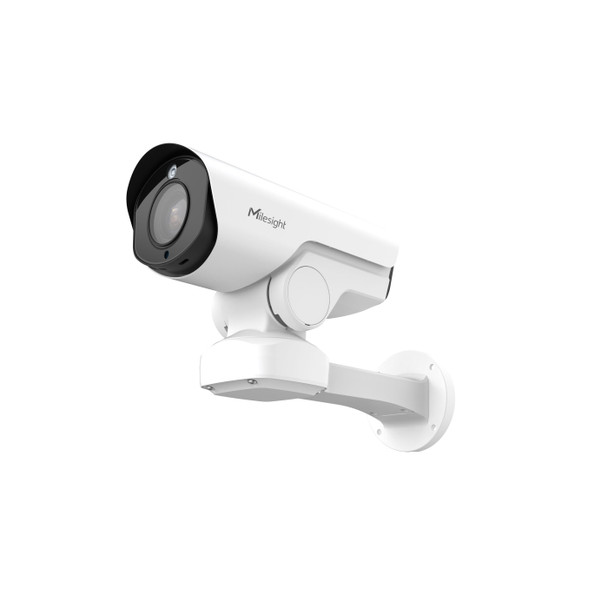

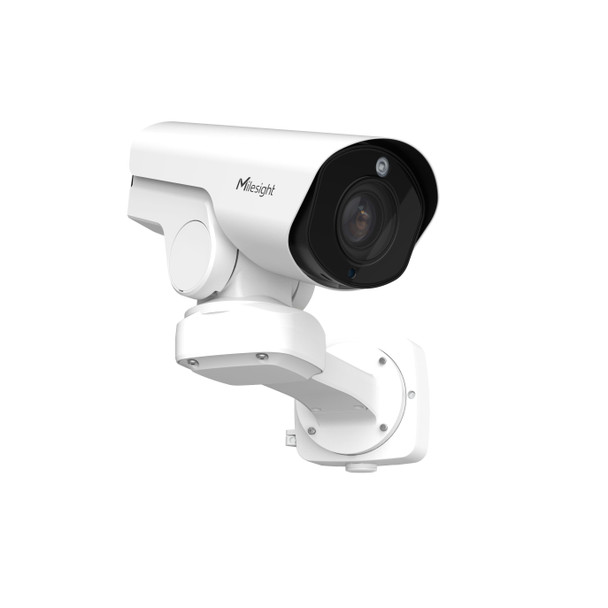

Milesight MS-C8267-X20PE 4K AI 20X PTZ IR Bullet Plus IP Security Camera

Milesight MS-C8267-X20PE 4K AI 20X PTZ IR Bullet IP Security Camera is the superb choice for a compact Pan-Tilt-Zoom system that yields a unique design plus top-notch features and exceptional performance. The device grants 8 megapixel or 4K Ultra HD in up to Real-time 30fps while also having powerful IR Night Vision paired with a 20x optical long range zoom lens to establish the core of its performance. Yet these PTZ IR Bullet IP Cameras offer much more than simply Pan-Tilt-Zoom functions like continuous pan and above the horizon tilt. Users will appreciate a device capable of wide universal system integration with open-platform protocols like ONVIF, SIP and RTMP for far more than simply surveillance and security system applications. However, of course in the realm of security these 4K IR Bullet PTZ Cameras are equally well equipped. They include on-board storage support to Artificial Intelligence (A.I.) enhanced event detection as well as a full function, plug-in free web browser support for endless possibilities. Outdoor ready yet still compact enough for placement in most indoor applications the device adapts well to all sorts of pro install demands.

Milesight MS-C8267-X20PE Main Features:

• 1/1.8" 8MP (4K UHD) 3840x2160 @ 30fps Real-time
• 20X AF Optical Zoom Lens 6.4~128mm HFOV 60° ~ HFOV 3° / VFOV 37° ~ VFOV 1°
• Color: 0.006 Lux @ F1.2 / B/W: 0 Lux IR On
• Super Wide Dynamic Range (WDR 120dB)
• Powerful Long Range IR Night Vision up to 180m
• High Efficiency Video H.265+, H.265, H.264+, H.264
• A.I. based Video Content Analysis Human/Vehicle, People Counting
• ONVIF for Universal Security Camera System Support
• Next-generation PTZ Motor, PTZ Position Display, 3D positioning
• 300 Preset Points, 8 Patrols, 48 presets per patrol; 4 Patterns
• 360° endless Pan, Pan Manual Speed: 0.1°~50°/s, Preset Speed: 50°/s
• -45°~30° Tilt, Tilt Manual Speed: 0.1°~30°/s, Preset Speed: 30°/s
• Multi-port: Alarm I/O and Audio I/O for External Devices
• Supports Micro SD card (1TB max)
• IP66 Weatherproof Rated for harsh outdoor environments
• Wide Operating Temperature Range: -40° ~ 60° C
• Supports PoE+ Or 12VDC Power Source
• NDAA Compliant

  Milesight MS-C8267-X20PE Specifications:

4K NDAA AI 20X PTZ Bullet Plus Network Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination: Color: 0.006 Lux @F1.2, Color: 0.009 Lux @F1.6, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
Digital Zoom: 16X
S/N: >55dB
Lens Focal Length: 6.4~128mm, 20X Optical Zoom
Zoom Speed: Approx 5s(Wide-Tele)
Field of View: HFOV 60° ~ HFOV 3°/ DFOV 67° ~ DFOV 4°/ VFOV 37° ~ VFOV 1°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 100/2000mm (Wide/Tele)
Aperture: F1.6 ~ F4.0
Iris Control: Auto
PTZ:
Pan Range/Pan Speed: 360° endless/ Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed: -45°~30°/ Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Functions: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 180m
Video Max. Image Resolution: 3840x2160 (4K UHD)
Frame Rates Per Stream:
Primary Stream:
60Hz: 30fps @ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps @ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
50Hz: 25fps @ (704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream
60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 Input/Output for External Microphone and Speaker
Alarm I/O: 1/1 Input/Output for External Sensor and Relay
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
3rd Party Security System Compatibility: ONVIF Profile G & M & S & T, API
Operating Temperature Range: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3at) / DC 12V/3A±10%
Power Consumption: 13W MAX, 24W MAX (With IR on)
Weather Proof Up to IP66-rated for Weather-resistant Performance
Dimensions: 110mm X 337mm X 220mm
Weight: 2.9Kg
Warranty: 2 Years (3 Years Optional)
