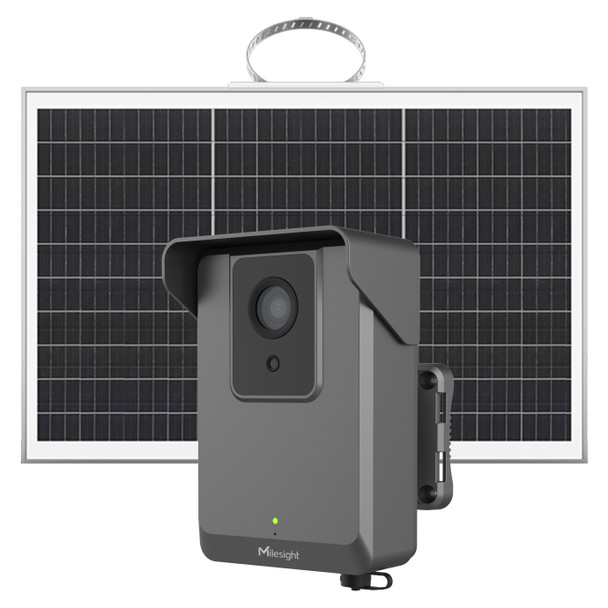

Milesight SC211-NA+S45 4G Solar Power AI Traffic Sensing & Capture IP Camera

Milesight SC211-NA 4G Solar Power Traffic Sensing IP Camera is an innovative new solution enabling effective road traffic monitoring and vehicle plate capture at highly effective cost. The Milesight SC211-NA Solar Road Traffic Capture Security Camera is the first proprietary, pre-built Solar Camera the A2Z Experts have identified as a truly professional pre-built solution and subsequently therefore promoted. The device is purpose built in an ultra-compact form factor, designed to accomplish key functions for traffic monitoring in locations like roadways, streets, parking lots, vehicle entries and exits or similar in a totally off-grid, stand-alone self-powered solution. The system features a combination of core technologies like integrated HD Camera, Radar, IR Night Vision, 4G Cellular Communications and of course an on-board solar power production with integrated lithium battery and externally, freely mounted solar panel.

Milesight SC211-NA 4G Solar Power Traffic Sensing IP Camera is built for professional demands and is intended to be incorporated as part of custom system deployments seeking maximum ease, reliability, performance and cost savings. That is the device communicates via the HTTP and MQTT protocols to enable third party or custom engineered road, traffic or parking software management solutions. Therefore, the Milesight SC211-NA 4G Solar Traffic IP camera is the perfect choice for applications requiring a high performing, off-grid, remotely deployable yet cost effective vehicle plate capture system for use with services such as Cloud-based LPR (License Plate Recognition). Alternatively, with the proper agreements in place, Milesight provides SDK / API access for the SC211-NA 4G Solar License Plate Capture Camera System empowering private entities to government agencies the ability to develop their own innovative traffic monitoring solutions.

Milesight SC211-NA 4G Solar Power Traffic Sensing IP Camera includes a unique design which utilizes an integrated Radar to accurately detect vehicle movement and thus trigger Milesight's "Quick Start Capture" function allowing the camera system to operate with an incredible low power efficiency. Added to this is an A.I. empowered image capture function which provides an intelligent algorithm to confirm each vehicle / plate capture transmitted is the most optimal image captured. With optional 6mm or 16mm semi-telephoto lens the unit provides reliable capture distances between 10 to 50 feet or an impressive 50 to 80 respectively. With high powered IR Night Vision to match as well as full 1080p HD, the Milesight SC211-NA 4G Traffic Solar Camera is capable of covering up to two lanes of traffic per camera. The device is rated for applications where traffic speeds reach up to approx. 45 miles per hour.

From its NDAA compliant build to leading carrier support including industry names like Verizon, AT&T or T-Mobile, the Milesight SC211-NA Solar 4G Traffic Capture Camera is ready to serve a wide array of project demands including sensitive sites at an unbeatable hardware cost. Built with a fully weatherproof, ultra-compact design that is easily pole or surface mounted the units likewise use an externally, free-mounted also low-profile solar panel for unobtrusive deployment almost anywhere. The units can also support 3rd party solar panel selections, therefore enabling adaptation to even the most challenging locations or environments.

Milesight SC211-NA+S45 4G Solar Traffic Cam Main Features:

• 1080p HD (2MP) for up to 2 Lane Coverage
• 16mm Telephoto Lens for Approx. 50 ~ 80ft Capture (6mm 10-50ft optional)
• 16mm Lens up to 43.5mph or 70km/h Capture Speed (6mm is Low Speed / Turning up to 18.64mph/30km/h)
• IR Wave Length: 850nm (Default - Others optional)
• Support 4G LTE; Nano SIM (Major Carrier Support Verizon, AT&T, T-Mobile)
• 4G Service, Sim Card, etc. Not Included
• Built-in High-accuracy GPS Module
• Radar Trigger Technology and Intelligent Image Algorithm Confirmation
• Vehicle Capture, Quick Start Capture
• Low-power operation mode and working mode switch automatically
• Equipped with WiFi for web GUI configuration
• SD card Storage function, up to 256GB
• HTTP & MQTT Protocol Support for Data Transmission
• Support 3rd Party Solutions including Cloud based LPR (LPR not included)
• Available SDK / API for custom engineered traffic solutions
• 3-Axis Ball bracket, Anti-theft Mounting Design
• Solar-power support w/External PV Panel
• Built-in 7.2V, 6400mAh, 46.08Wh battery
• Supports USB Type-C Power Supply for utility powered or other deployment
• Wide Operational Temperature：-20℃~60℃
• NDAA Compliant Build
• SC211-NA+S45 is A2Z's default kit with Solar Panel included

Summary of Capture Performance &C Communications

Capture Rate: Up to 98%
Optimal Capture Distance: 6m (With 6mm lens) 15m~20m (With 16mm lens)
Capture Range: 3~15m (With 6mm lens) 10~25m (With 16mm lens)
Nighttime Illumination Distance: Up to 15m (With 6mm lens) Up to 25m (With 16mm lens)
Coverage: 2 lanes (8m)
Capture Speed:
Recommended to use when the vehicle speed <30km/h (With 6mm lens);
Recommended to use when the vehicle speed <70km/h (With 16mm lens)
Wireless Network
WLAN: 802.11n/802.11g (configuration)
Cellular: 4G LTE Cellular for DATA Transmission / Operation
NA: B2/B4/B5/B12/B13/B25/B26 EU: B1/B3/B7/B8/B20/B28
AU: B1/B2/B3/B4/B5/B7/B8/B28/B66
SIM Card: Nano SIM
DATA Transmission HTTP & MQTT protocols

System Specifications:
Image Sensor: 1/2.8″ Progressive Scan CMOS
Day/Night Mode Day/Night/Auto
IR Wave Length 850nm (Default); 740nm (Optional)
Lens
Lens: 16mm (6mm optional)
Field of View:
H19.4° /D22.2° /V11° (16mm)
H52.8°/D60.4°/V29.7° (6mm)
Max. Resolution: 1920×1080 - 1080p / 2-Megapixel
Image Setting: Brightness/Contrast/Saturation/Sharpness

General
GPS: Built-in High-accuracy GPS Module
Radar Working Frequency: 24GHz
Protocol: MQTT/HTTP
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G

Solar Power Defualt Panel
Power: ≥35W
OCV: <22V
Connector: MC4

Direct & Battery Power Options:
Power Supply: USB Type-C (hardwired)
Battery: 7.2V, 6400mAh, 46.08Wh
Operational Temperature: Charge: -20°C ~ -45°C; Discharge: -20°C ~ 60°C
Battery Life: The power is 70% after 500 times of accumulative charging and discharging
Power Consumption:
288mW Normal (Detection Status)
1.166W Normal: (Capture Status)
5.9W MAX: (Night Capture Status)
Weather Proof: IP66
Weight: 2.29 lbs or 1040g (212g Battery Weight)
Rain Cover Movement Distance: 10mm
Dimensions: 175mm X 111mm X 63.2mm (Without Rain Cover)
Warranty: 2 Years
