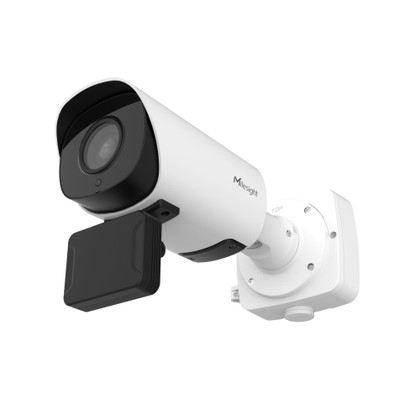

Milesight TS2966-X12TPE 2MP Road Traffic AI 12x LPR IR Bullet IP Security Camera

Milesight TS2966-X12TPE 2MP Road Traffic AI 12x LPR IR Bullet IP Security Camera is an innovative variation of Milesight's Pro Bullet Plus series including A.I. powered ANPR and Road Traffic related video analysis. The device incorporates high performance video attributes such as superb frame rates, high powered lens and IR Night vision as well as other image enhancements in the 1080p HD resolution class. Furthermore, across the board this Bullet IP Camera features a wealth of advantages even before considering its ANPR / LPR and road traffic video analytics package. From high-capacity edge storage to rich web browser functionality, users and installers alike will realize a highly adaptable product built to satisfy the widest array of possible project requirements. From its robust outdoor, weatherproof and high impact resistant build, to granular aspects like flexible I/O hardware connections or power input options, the Milesight TS2966-X12TPE 1080p Road Traffic AI LPR Bullet IP Camera delivers ground breaking capabilities.

Milesight TS2966-X12TPE 2MP Road Traffic AI 12x LPR IR Bullet IP Camera is no typical security camera. Its outstanding quality, performance and diverse functions combine with Milesight's AI road traffic video analysis to provide the next generation in intelligent traffic management and evidence gathering. The unit's A.I. enhanced ANPR (automatic numeric plate recognition) aka LPR (License Plate Recognition) function enjoys exceedingly high accuracy that combines with other cutting-edge detections and video content analysis abilities to enable aa new era in smart surveillance. Additional functions like vehicle attributes such as Color, Make and type to specific detections like traffic violations or traffic flow statistics all performed at the edge or in other words on the camera itself allow countless potential uses and manners of deployment that are inherently superior to systems or solutions of the past. Supplying effective functions totally stand-alone to rich capabilities for use with Milesight head-end products like NVRs, VMS or CMS software the device likewise is fully equipped to support deep integration with third party systems including via the latest standards of ONVIF to more custom developed applications.

Milesight TS2966-X12TPE Main Features:

• 1/2.8" 2 MegaPixel (1920x1080) 1080p @ 60fps Real-time
• Special Order 100fps version available
• Zoom lens: 5.3~64mm, 12X Optical Zoom: HFOV 61° ~ HFOV 5°/ VFOV 36° ~ VFOV 2°
• High Power IR Night Vision up to 180m
• ANPR Day Range up to 70m - ANPR Night Range w/Illumination: up to 35m
• Color: 0.008 Lux @F1.6, B/W: 0 Lux with IR on
• Super Wide Dynamic Range (WDR 140dB)
• A.I. (Artificial Intelligence) Powered LPR Algorithm
• Long Range ANPR Function w/95% Accuracy
• High Speed ANPR up to Approx. 75mph - 2 Lane Coverage
• Numerous Vehicle Attributes: Color, Brand, Type, Direction, No-Plate, Plate Color
• Traffic Violation Detection
• Traffic Flow Statistics
• Evidence Camera Linkage
• High-Capacity Edge White/Black List
• 3-Axis Camera Orientation
• ONVIF, CGI/API/SDK and more for 3rd Party Systems
• Multi-Web Browser Support - Plug-in Free
• High-Capacity Micro SD Card Support
• Audio External I/O device support (i.e. mics/speakers)
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• Optional Heating Module (for -60°C)
• A62 Junction Box Included
• Surge Protection
• PoE OR 12VDC Power Support

Milesight TS2966-X12TPE Specifications:

Camera
Name: NDAA AI Road Traffic Pro Bullet Plus IP Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Wave Length 850nm (Default); 740nm (Optional)
Illumination Distance Up to 180m
S/N >55dB

Lens
Lens 5.3~64mm, 12X Optical Zoom
Field of View H61°~H5°/D69°~D5°/V36°~V2°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto

Road Traffic Management
Max. Vehicle Speed 120km/h
Recognition Accuracy >95%
Coverage 2 lanes
Country Region Supported More than 80 countries and regions
ANPR Distance Up to 110m during the day; Up to 55m during the night with illumination
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function Evidence Camera Linkage, Specific Lane Management
White/Black List Up to 20,000 records inside the camera
LPR Smart Search Support

Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1 (Integrated Cable Version)
2/2 (Cable Out Version)

Video
Max. Image Resolution 1920x1080
Primary Stream 60Hz/50Hz: 90fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

System
System Compatibility API, HTTP, TCP, ONVIF Profile G & M & S & T
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Black/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.

General
Working Temperature -40°C~60°C
Working Humidity 0~95%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX
14W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Surge Protection 4KV
Weight 1623g
Dimensions 320mmX134mmX171mm
Warranty 3/5 Years
