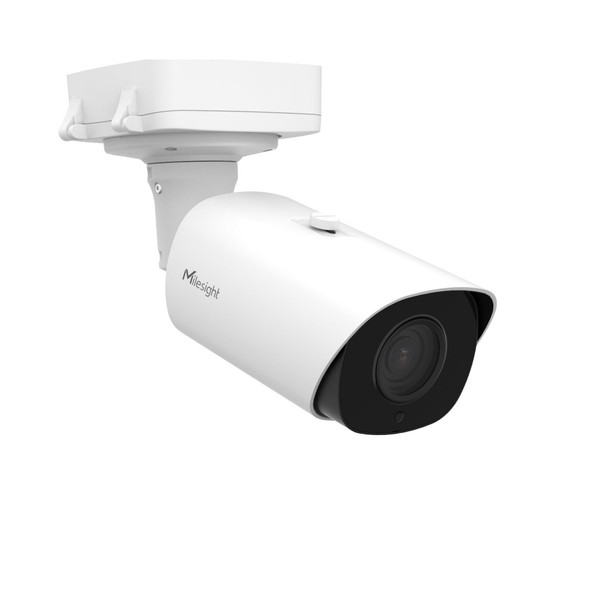

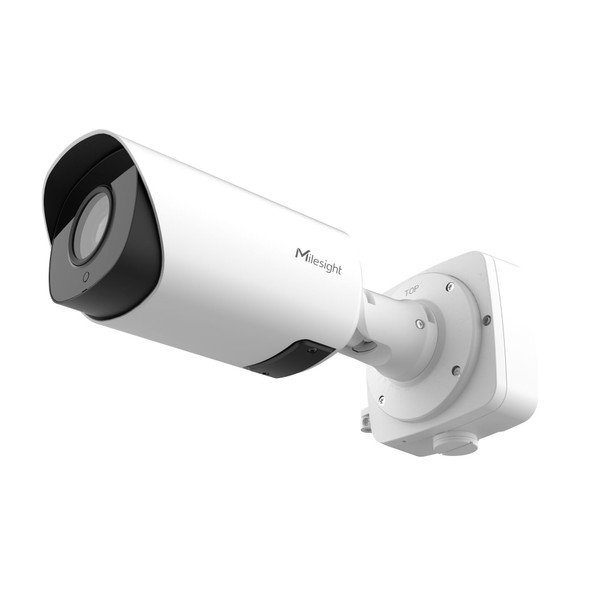

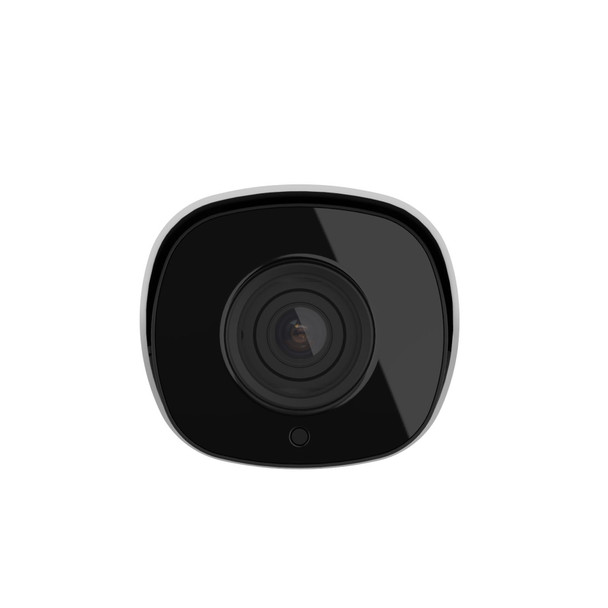

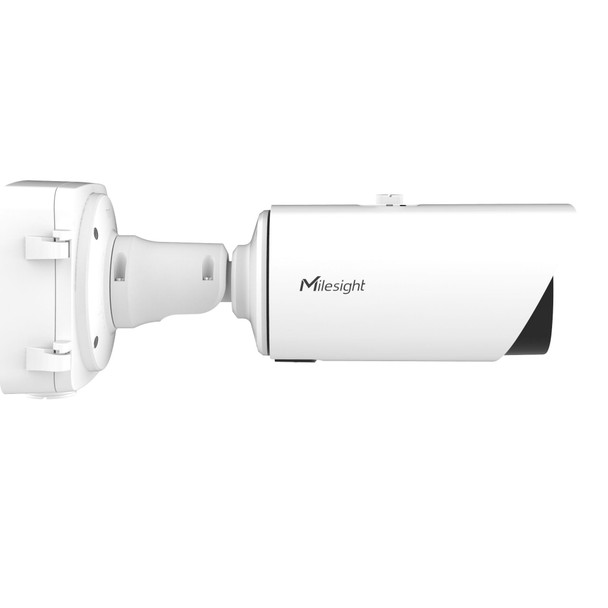

Milesight TS4466-X4RPE 4MP Road Traffic AI LPR 4x IR Bullet IP Security Camera

Milesight TS4466-X4RPE 4MP Road Traffic AI LPR 4x IR Bullet IP Security Camera is a specialized version of the Pro Bullet Plus series which loaded with advanced A.I. Powered ANPR and Road Traffic Video Analytics. Featuring a modern, large format and super low light 4-Megapixel Image sensor combined with powerful optical zoom lens and long-range IR Night Vision among other video enhancements, the device is naturally well equipped for producing optimal video performance along various roadway applications. Additionally, rich functionality on all levels delivers a product that accommodates the widest range of application demands such as high-capacity edge storage to highly flexible integration as well as operation methods. Built tough with a high impact, wide temp and strict weatherproof construction this Milesight ANPR Bullet IP Camera is well suited to satisfy sophisticated requirements in harsh environments.

Milesight TS4466-X4RPE 4MP Road Traffic A.I. LPR 4x IR Bullet IP Cameras include an on-board package of video analytics specially tailored to Road Traffic monitoring and surveillance objectives. Leveraging Artificial Intelligence powered video analysis the device's ANPR (Auto Numeric Plate Recognition) aka LPR (License Plate Recognition) function enjoys exceptional high accuracy but is hardly the full scope of vehicle traffic related advanced detections it can perform at the edge. From abilities like generating vehicle attributes such as color, make or type, the device allows automated capabilities ranging from detecting traffic violations to producing traffic flow statistics. Furthermore, not only can the device provide useful operations all on its own but likewise the device is designed to deliver comprehensive functions when used in conjunction with Milesight NVR, VMS or CMS software products or alternatively 3rd party systems. Industry wide support can be achieved with modern formats of ONVIF and other IT protocols while custom developed solutions are all also supported with SDK / API / CGI integrations available. Contact A2Z's Experts to learn more and gain valuable guidance in selecting the best product for your project.

that significantly benefit its ability to adapt to various roadways

Milesight TS4466-X4RPE Main Features:

• 1/1.8" 4 MegaPixel (2688x1520) 2k @ 60fps Real-time
• Zoom lens: 8~32mm, 4X Optical Zoom: HFOV 44° ~ HFOV 13°/ VFOV 25° ~ VFOV 7°
• High Power IR Night Vision up to 180m
• ANPR Day Range up to 95m - ANPR Night Range w/Illumination: up to 45m
• Color: 0.002 Lux @F1.6, B/W: 0 Lux with IR on
• Super Wide Dynamic Range (WDR 140dB)
• A.I. (Artificial Intelligence) Powered LPR Algorithm
• Long Range ANPR Function w/95% Accuracy
• High Speed ANPR up to Approx. 75mph - 2 Lane Coverage
• Numerous Vehicle Attributes: Color, Brand, Type, Direction, No-Plate, Plate Color
• Traffic Violation Detection
• Traffic Flow Statistics
• Evidence Camera Linkage
• High-Capacity Edge White/Black List
• 3-Axis Camera Orientation
• ONVIF, CGI/API/SDK and more for 3rd Party Systems
• Multi-Web Browser Support - Plug-in Free
• High-Capacity Micro SD Card Support
• Audio External I/O device support (i.e. mics/speakers)
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• Optional Heating Module (for -60°C)
• A62 Junction Box Included
• Surge Protection
• PoE OR 12VDC Power Support

Milesight TS4466-X4RPE Specifications:

Camera
Name NDAA AI Road Traffic Pro Bullet Plus Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Wave Length 850nm (Default); 740nm (Optional)
Illumination Distance Up to 180m
S/N >55dB

Lens
Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F1.7
Iris Control Auto

Road Traffic Management
Max. Vehicle Speed 120km/h
Recognition Accuracy >95%
Coverage 2 lanes
Country Region Supported More than 80 countries and regions
ANPR Distance Up to 95m during the day; Up to 45m during the night with illumination
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function Evidence Camera Linkage, Specific Lane Management
White/Black List Up to 20,000 records inside the camera
LPR Smart Search Support

Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1 (Integrated Cable Version) 2/2 (Cable Out Version)

Video
Max. Image Resolution 2688x1520
Primary Stream 60Hz: 60fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream 60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

System
System Compatibility API, HTTP, TCP, ONVIF Profile G & M & S & T
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Black/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.

General
Working Temperature -40°C~60°C
Working Humidity 5~90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX
13W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Surge Protection 4KV
Weight 1623g
Dimensions 320mmX134mmX171mm
Warranty 3/5 Years
