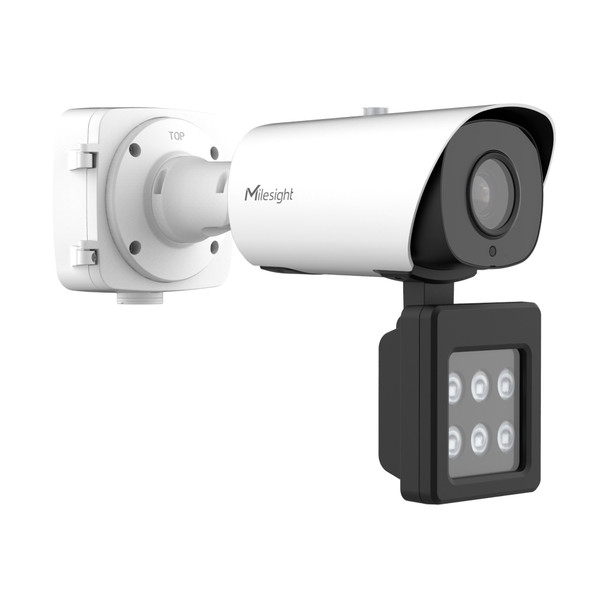

Milesight TS4466-X4RWE/W 4MP Road Traffic AI LPR AUX WHITE LIGHT Bullet IP Security Cameras

Milesight TS4466-X4RWE/W 4MP Road Traffic AI LPR AUX WHITE LIGHT Bullet IP Security Cameras are one of many variations of Milesight surveillance cameras that are built specifically to empower the next age in smart vehicle traffic monitoring and traffic management solutions. These Milesight network cameras combine the high-performance video, telephoto optical zoom and powerful illumination capabilities of series like the Pro Bullet Plus line with an A.I. powered, traffic-oriented Video Analytic package and in this specific model the addition of an integrated White Light Supplemental Illuminator. Boasting numerous features, some common only among high-grade security cameras, the device adopts a larger format, super low light Sony Starvis 4-Megapixel Image Sensor that when paired with other top notch image enhancements like 140dB Wide Dynamic Range plus high frame rates promise optimal video clarity. Aspects like high efficiency video compressions, on-board large capacity edge storage to a well-built web browser interface loaded with in-depth settings plus plenty more ensure users and installers alike will appreciate its well-equipped design. Constructed in a solid, yet compact, fully integrated unit with high weatherproof ratings, the device is perfectly suited for harsh outdoor environments.

Milesight TS4466-X4RWE-W 4MP Road Traffic AI LPR AUX WHITE LIGHT Bullet IP Camera is specially outfitted for achieving professional grade demands related to vehicle road traffic solutions. The devices supplemental White Light Illuminator provides a unique all-in-one camera model which can enable superior performance compared to versions without the extra lighting function. It brings perks such as achieving around the clock color imaging which not only benefits its various video content analysis functions but likewise can allow for finer detail of faster moving objects thanks to its ample light production. Aspects such as ALPR handling non-reflective license plates to capturing vehicle attributes like Color, Make and Type 24/7 are all improved significantly with this White Light illumination technique. Otherwise, these units offer the full A.I. powered video analytics as the base series that lack the external illuminator such ALPR (Automatic License Plate Recognition) or aka ANPR (Automatic Numeric Plate Recognition), Vehicle Attribute Detection or Traffic Violation Detections. The device is fully ready to accommodate functions like security, surveillance and/or the generation of traffic flow statistics at the highest levels. Finally, from stand-alone operations to full featured functionality when used with Milesight NVRs, CMS or VMS software, the bullet IP camera is equally produced to integrate with 3rd party systems via ONVIF or other methods allowing full access to rich metadata. A Wiegand interface is also on-board allowing yet even more possibilities such as for install along with pro access control systems.

Milesight TS4466-X4RWE/W Main Features:

• 1/1.8" 4 MegaPixel (2688x1520) 2k @ 60fps Real-time
• Zoom lens: 8~32mm, 4X Optical Zoom: HFOV 44° ~ HFOV 13°/ VFOV 25° ~ VFOV 7°
• High Power Illumination up to 180m
• EXTERNAL WHITE LIGHT LED Illuminator
• ANPR Day Range up to 95m - ANPR Night Range w/Illumination: up to 50m
• Color: 0.002 Lux @F1.6, B/W: 0 Lux with White Light ON
• Super Wide Dynamic Range (WDR 140dB)
• A.I. (Artificial Intelligence) Powered LPR Algorithm
• Long Range ANPR Function w/95% Accuracy
• High Speed ANPR up to Approx. 75mph - 2 Lane Coverage
• Numerous Vehicle Attributes: Color, Brand, Type, Direction, No-Plate, Plate Color
• Traffic Violation Detection
• Traffic Flow Statistics
• Evidence Camera Linkage
• High-Capacity Edge White/Black List
• 3-Axis Camera Orientation
• ONVIF, CGI/API/SDK and more for 3rd Party Systems
• Multi-Web Browser Support - Plug-in Free
• High-Capacity Micro SD Card Support
• Audio External I/O device support (i.e. mics/speakers)
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• Optional Heating Module (for -60°C)
• A62 Junction Box Included
• Surge Protection
• 12VDC Power Support

Milesight TS4466-X4RWE/W Specifications:

Camera
Name AI Road Traffic Supplement Light Pro Bullet Plus Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux@F1.6
B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Lens
Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Road Traffic Management
Max. Vehicle Speed 120km/h
Recognition Accuracy >95%
Coverage 2 lanes
Country Region Supported More than 80 countries and regions
ANPR Distance Up to 95m during the day; Up to 50m during the night with illumination
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function Evidence Camera Linkage, Specific Lane Management
White/Black List Up to 20,000 records inside the camera
LPR Smart Search Support

Illuminator
Supplement Light White LED Light
Light Bead 6 LEDs
Illumination Distance Up to 180m
Light Control Auto/Always On/Off/Customize

Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 2/2
Wiegand Standard Wiegand 26-bit

Video
Max. Image Resolution 2688x1520
Primary Stream 60Hz: 60fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream 60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

System
System Compatibility API, HTTP, TCP, Wiegand Protocol, ONVIF Profile G & M & S & T
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Black/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.

General
Working Temperature -40°~60°C
Working Humidity 5~90%(Non-condensing)
Power Supply DC 12V / 3A±10% (Non-PoE)
Power Consumption 4W MAX,28W MAX (For White LED Light)
Surge Protection 4KV
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing (Without Supplement Light)
Surge Protection 4KV
Weight 1445.8g
2100g (With Supplement Light)
Dimensions 282mmX108mmX120mm
282mmX108mmX225mm (With Supplement Light)
Warranty 3/5 Years
