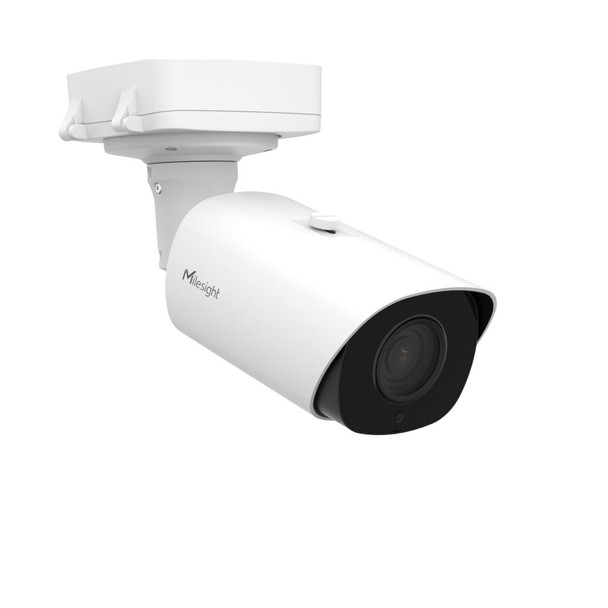

Milesight TS8266-X4PE 4K Road Traffic AI LPR 4x IR Bullet IP Security Camera

Milesight TS8266-X4PE 4K Road Traffic AI LPR 4x IR Bullet IP Security Camera is a specialized version of the Pro Bullet Plus series featuring advanced Video Content Analysis specifically geared towards vehicle traffic. Harnessing first and foremost exceptional video performance of up to 8-megapixel or 4K Ultra HD which is merged with high-powered IR Night Vision and a telephoto motorized optical zoom lens, the device is well suited for optimal video capture of traffic scenes.  In fact, this model delivers industry leading, high speed support such as for highways, freeways or free flow toll roads. Secondly, the Bullet IP Camera is built with countless pro-grade advantages including a rich functionality in its web interface, high-capacity edge storage to aspects like full I/O connectivity for external devices such as Alarm sensors, relays, microphones or speakers. Furthermore, the security camera is built rugged, featuring a wide temp operating range, high impact and high weatherproof rating making it fully ready for harsh outdoor environments.

Milesight TS8266-X4PE 4K Road Traffic AI LPR 4x IR Bullet IP Camera thanks to its impressive video performance abilities allows excellent results for traffic surveillance and traffic monitoring prior to evaluating its added intelligence. The edge-based A.I. empowered video analytics such as ALPR (Automatic License Plate Recognition) or aka ANPR (Automatic Numeric Plate Recognition) boast high accuracy, but even further the device offers vehicle attribute detections like vehicle color, make and type to provide a wealth of metadata useful in various demands. finally, there is even more, like purpose-built video detections such as those related to traffic violations and there are other relevant benefits like its ability to generate traffic flow statistics. Finally, other notable points include stand-alone operation with functions like white/black list to comprehensive features which can be achieved when used along with Milesight's NVRs, VMS or CMS software products. Alternatively, third party system integration is fully supported with options of obtaining interoperability via modern ONVIF formats including Metadata to custom developed paths utilizing API / SDK access.

Milesight TS8266-X4PE Main Features:

• 1/1.8" 8 MegaPixel (3840x2160) 4K @ 30fps Real-time
• Zoom lens: 8-32mm, 4X Optical Zoom: HFOV 44° ~ HFOV 13°/ VFOV 25° ~ VFOV 7°
• High Power IR Night Vision up to 180m
• ANPR Day Range up to 130m - ANPR Night Range w/Illumination: up to 60m
• Color: 0.009 Lux @F1.6, B/W: 0 Lux with IR on
• Super Wide Dynamic Range (WDR 120dB)
• A.I. (Artificial Intelligence) Powered LPR Algorithm
• Long Range ANPR Function w/95% Accuracy
• High Speed ANPR up to Approx. 75mph - 2 Lane Coverage
• Numerous Vehicle Attributes: Color, Brand, Type, Direction, No-Plate, Plate Color
• Traffic Violation Detection
• Traffic Flow Statistics
• Evidence Camera Linkage
• High-Capacity Edge White/Black List
• 3-Axis Camera Orientation
• ONVIF, CGI/API/SDK and more for 3rd Party Systems
• Multi-Web Browser Support - Plug-in Free
• High-Capacity Micro SD Card Support
• Audio External I/O device support (i.e. mics/speakers)
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• Optional Heating Module (for -60°C)
• A62 Junction Box Included
• Surge Protection
• PoE OR 12VDC Power Support

Milesight TS8266-X4PE Specifications:

Camera
Name NDAA AI Road Traffic Pro Bullet Plus Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux@F1.6
B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Wave Length 850nm (Default); 740nm (Optional)
Illumination Distance Up to 180m
S/N >55dB

Lens
Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F1.7
Iris Control Auto

Road Traffic Management
Max. Vehicle Speed 120km/h
Recognition Accuracy >95%
Coverage 2 lanes
Country Region Supported More than 80 countries and regions
ANPR Distance Up to 130m during the day; Up to 60m during the night with illumination
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function Evidence Camera Linkage, Specific Lane Management
White/Black List Up to 20,000 records inside the camera
LPR Smart Search Support

Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1 (Integrated Cable Version)
2/2 (Cable Out Version)

Video
Max. Image Resolution 3840x2160 / 4K / 8-Megapixel
Primary Stream 60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

System
System Compatibility API, HTTP, TCP, ONVIF Profile G & M & S & T
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Black/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.

General
Working Temperature -40°C~60°C
Working Humidity 0~95%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 9W MAX
13W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Surge Protection 4KV
Weight 1623g
Dimensions 320mmX134mmX171mm
Warranty 3/5 Years
