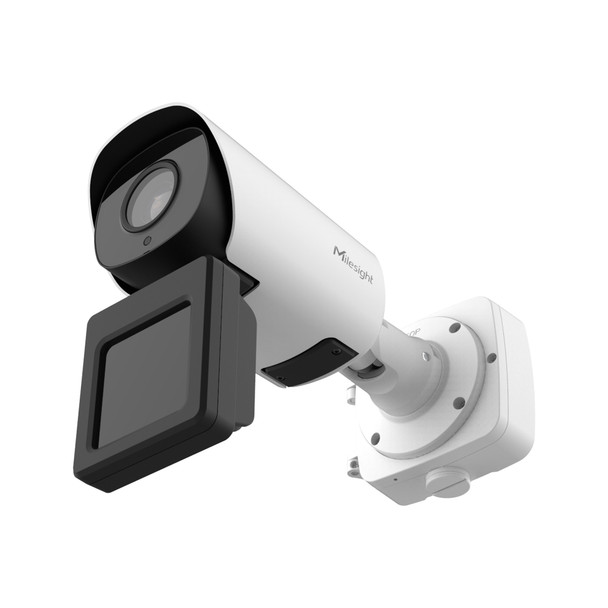

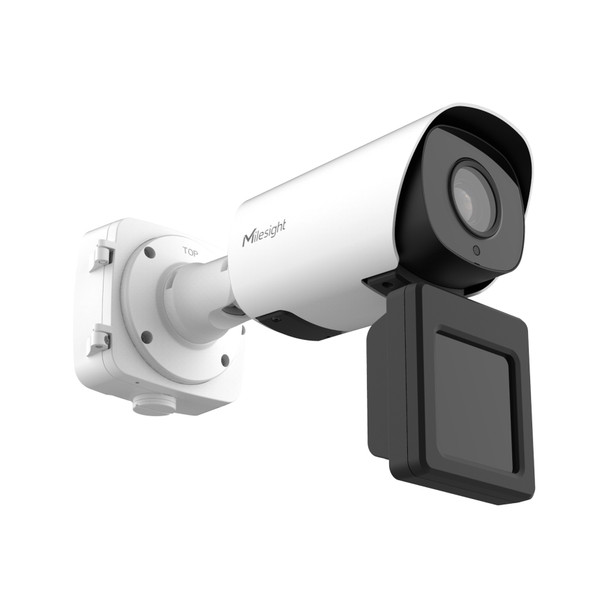

Milesight TS8266-X4WE/R 4K Road Traffic AI LPR AUX IR Illuminator Bullet IP Security Camera

Milesight TS8266-X4WE/R 4K Road Traffic AI LPR AUX IR Illuminator Bullet IP Security Cameras provide high-end, sophisticated functions for professional vehicle traffic monitoring to improved transportation safety with ease. Boasting a Sony Starvis, super low light, large format 8-megapixel image sensor for incredible 4K Ultra HD video coupled with the power of a telephoto lens and superior Infrared illumination, the device is well suited for demanding roadway applications. Including numerous on-board capabilities, the device delivers everything from a well-developed web browser interface, rich with in-depth settings to the latest compression methods and diverse IT network protocols. Even before its A.I. LPR and other road traffic focused video analytics, the units are well developed to adapt to the widest range of professional demands. From large edge storage support to external I/O connections including Audio, Alarm, Relay or even Weigand communication, these Milesight Road Traffic IP Cameras allow countless system integration possibilities. Furthermore, all of this and more is enclosed in a robustly constructed, compact casing featuring a pre-built, fully integrated external IR Illuminator that is ready for extreme outdoor conditions.

Milesight TS8266-X4WE/R 4K Road Traffic AI LPR AUX IR Illuminator Bullet IP Security Cameras are an innovative solution for advanced traffic management, security and safety. Milesight’s Artificial Intelligence powered ALPR (Automatic License Plate Recognition) or ANPR (Automatic Numeric Plate Recognition) function grants a high accuracy plate reader with multi-lane coverage even at exceptional distances. The device further most certainly includes other highly useful traffic geared video analytics such collection of vehicle attributes like type, make and color to vehicle behavior analysis like improper lane change, wrong direction and so forth, enabling capture of a broad range of traffic metadata and further generation of rich traffic flow statistics. These Milesight LPR IP Cameras additionally offer numerous manners of use including stand-alone operations to 3rd party system integration. Comprehensive functionality can be quickly realized when used along with Milesight NVRs, VMS or CMS software while industry wide benefits are equally supported via universal standards like ONVIF M to SDK/API access options for custom developed deployments. Thanks to its high-end sensor, external high powered lighting the device is a industry leading choice for applications including highways, freeways or free flow toll roads thanks to its high speed capabilities.

Milesight TS8266-X4WE/R Main Features:

• 1/1.8" 8 MegaPixel (3840x2160) 4K @ 30fps Real-time
• Zoom lens: 8-32mm, 4X Optical Zoom: HFOV 44° ~ HFOV 13°/ VFOV 25° ~ VFOV 7°
• High Power IR Night Vision up to 180m
• EXTERNAL Supplemental Infrared LED Night Vision Illuminator
• ANPR Day Range up to 130m - ANPR Night Range w/Illumination: up to 65m
• Color: 0.009 Lux @F1.6, B/W: 0 Lux with IR on
• Super Wide Dynamic Range (WDR 120dB)
• A.I. (Artificial Intelligence) Powered LPR Algorithm
• Long Range ANPR Function w/95% Accuracy
• High Speed ANPR up to Approx. 124mph - 2 Lane Coverage
• Numerous Vehicle Attributes: Color, Brand, Type, Direction, No-Plate, Plate Color

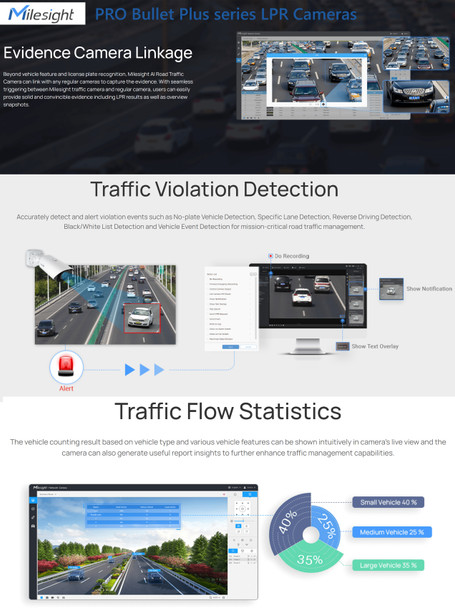

• Traffic Violation Detection
• Traffic Flow Statistics
• Evidence Camera Linkage
• High-Capacity Edge White/Black List
• 3-Axis Camera Orientation
• ONVIF, CGI/API/SDK and more for 3rd Party Systems
• Multi-Web Browser Support - Plug-in Free
• High-Capacity Micro SD Card Support
• Audio External I/O device support (i.e. mics/speakers)
• Alarm/Relay External I/O device support
• Wiegand Communication Support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• Optional Heating Module (for -60°C)
• A62 Junction Box Included
• Surge Protection
• 12VDC Power Support

Milesight TS8266-X4WE/R Specifications:

Camera
Name NDAA AI Road Traffic Supplement Light Pro Bullet Plus Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux@F1.6
B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens
Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto

Road Traffic Management
Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage 2 lanes
Country Region Supported More than 80 countries and regions
ANPR Distance Up to 130m during the day; Up to 65m during the night with illumination
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function Evidence Camera Linkage, Specific Lane Management
White/Black List Up to 20,000 records inside the camera
LPR Smart Search Support

Illuminator
Supplement Light IR LED Light
Light Bead 9 (For IR LED Light)
Illumination Distance Up to 180m
Light Control Auto/Always On/Off/Customize

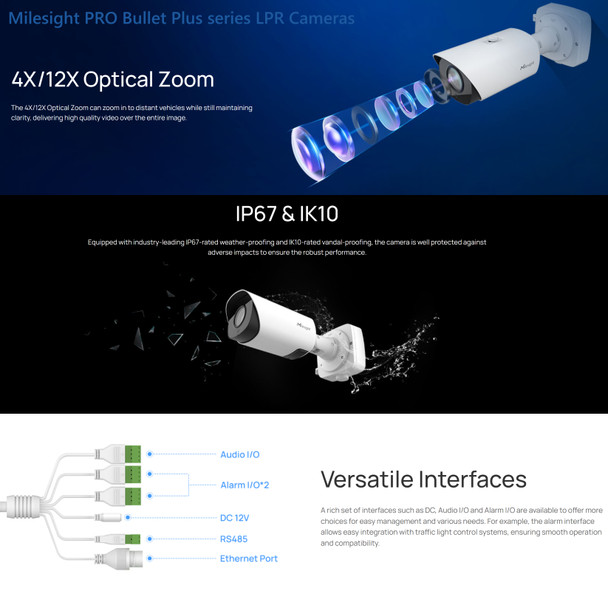

Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 2/2
Wiegand Standard Wiegand 26-bit

Video
Max. Image Resolution 3840x2160 (4K ULTRA HD)
Primary Stream 60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

System
System Compatibility API, HTTP, TCP, Wiegand Protocol, ONVIF Profile G & M & S & T
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Black/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.

General
Working Temperature -40℃~60℃
Working Humidity 5~90%(Non-condensing)
Power Supply DC 12V / 3A±10% (Non-PoE)
Power Consumption 5W MAX,31W MAX (For IR LED Light)
Surge Protection 4KV
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing (Without Supplement Light)
Surge Protection 4KV
Weight 1445.8g
2100g (With Supplement Light)
Dimensions 282mmX108mmX120mm
282mmX108mmX225mm (With Supplement Light)
Warranty 3/5 Years
