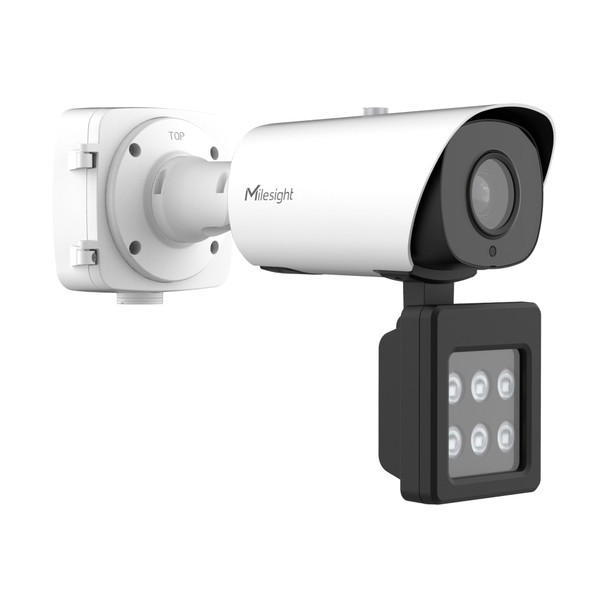

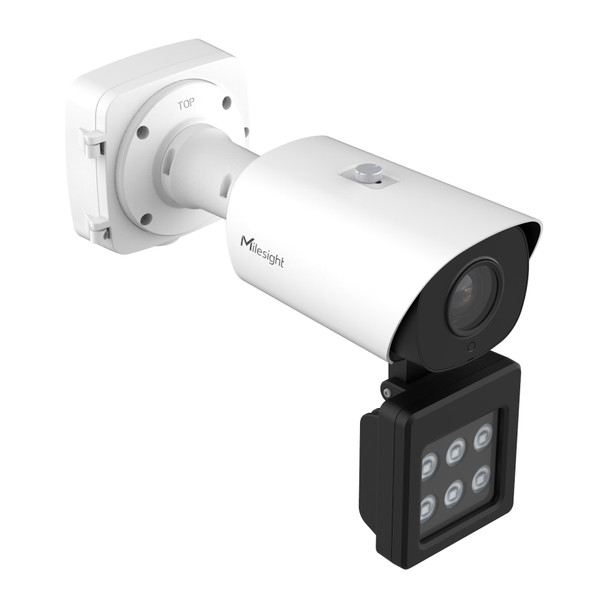

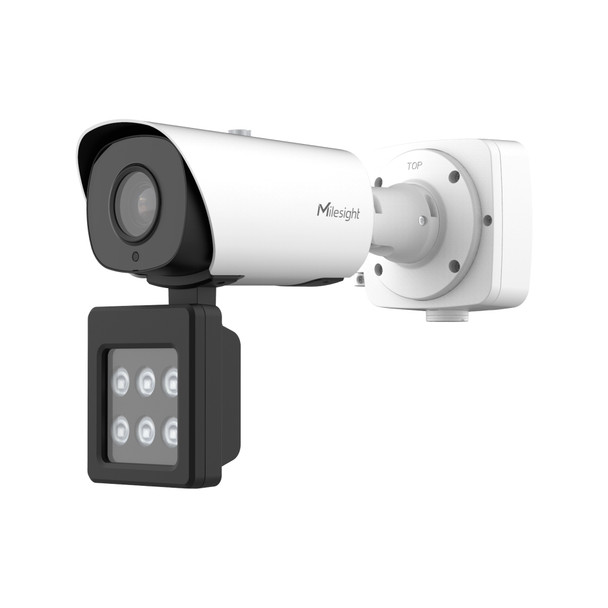

Milesight TS8266-X4WE/W 4K Road Traffic AI LPR AUX WHITE LIGHT Bullet IP Security Cameras

Milesight TS8266-X4WE/W 4K Road Traffic AI LPR AUX WHITE LIGHT Bullet IP Security Cameras present a new age in smart vehicle traffic monitoring, surveillance and/or security. Built upon the high performing features of the 4K 4x Pro Bullet Plus Milesight IP camera series, the device couples traffic focused, A.I. empowered video analysis and an external, pre-integrated, high power White Light Illuminator for uniquely superior results. The device's ultra-low light, Sony Starvis 8-megapixel (4K UHD) Image sensor combines with enhanced image processing and a telephoto zoom lens to deliver the fundamental abilities necessary not mention stunning scene detail. Advantages from high efficiency media compression methods to large edge storage support and plenty more are all also on-board ensuring users realize optimal flexibility with wide conformance to various project demands. Further, easy installation and a solid weatherproof construction assure vast adaptation to all sorts of install locations in practically any outdoor environment. All of these perks and numerous more assure top tier abilities ready to satisfy the widest selection of possible traffic and transportation related applications, from building smart cities to improving public safety and beyond.

Milesight TS8266-X4WE/W 4K Road Traffic A.I. LPR AUX WHITE LIGHT Bullet IP Camera are specially outfitted to provide next generation in smart vehicle traffic monitoring and surveillance along roadways including freeways, expressways or even highways with its industry leading high speed limit ratings. Milesight's A.I. powered video analytics algorithms such as ANPR (Automatic Numeric Plate Recognition) or aka ALPR (Automatic License Plate Recognition) enable multi-lane coverage with exceptional high accuracy. Further additional Video Analysis capabilities from vehicle attributes like color, make and type to traffic violation detections are all processed at the edge resulting in this unit's ability to produce rich metadata as well as allow advanced automated functions. The supplemental White Light LED array levels up these advanced functions by enabling 24/7 color video which benefits factors like even clearer imaging of fast-moving traffic or continuous collection of data points like vehicle color at night and improved LPR accuracy such as allowing reliable reads even on non-reflective plates compared to high contrast methods. Finally, style of deployments from stand-alone operation to comprehensive data management with Milesight NVRs, CMS or VMS software as well as 3rd party system integration supporting full metadata access are all possible. A Wiegand interface adds yet another example of its readiness for

Milesight TS8266-X4WE/W Main Features:

• 1/1.8" 8 MegaPixel (3840x2160) 4K @ 30fps Real-time
• Zoom lens: 8-32mm, 4X Optical Zoom: HFOV 44° ~ HFOV 13°/ VFOV 25° ~ VFOV 7°
• High Power Illumination up to 180m
• EXTERNAL Supplemental White Light LED Illuminator
• ANPR Day Range up to 130m - ANPR Night Range w/Illumination: up to 65m
• Color: 0.009 Lux @F1.6, B/W: 0 Lux with White Light on
• Super Wide Dynamic Range (WDR 120dB)
• A.I. (Artificial Intelligence) Powered LPR Algorithm
• Long Range ANPR Function w/95% Accuracy
• High Speed ANPR up to Approx. 124mph - 2 Lane Coverage
• Numerous Vehicle Attributes: Color, Brand, Type, Direction, No-Plate, Plate Color
• Traffic Violation Detection
• Traffic Flow Statistics
• Evidence Camera Linkage
• High-Capacity Edge White/Black List
• 3-Axis Camera Orientation
• ONVIF, CGI/API/SDK and more for 3rd Party Systems
• Multi-Web Browser Support - Plug-in Free
• High-Capacity Micro SD Card Support
• Audio External I/O device support (i.e. mics/speakers)
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• Optional Heating Module (for -60°C)
• A62 Junction Box Included
• Surge Protection
• 12VDC Power Support

Milesight TS8266-X4WE/W Specifications:

Camera
Name NDAA AI Road Traffic Supplement Light Pro Bullet Plus Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux@F1.6
B/W: 0Lux with White Light on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens
Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto

Road Traffic Management
Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage 2 lanes
Country Region Supported More than 80 countries and regions
ANPR Distance Up to 130m during the day; Up to 65m during the night with illumination
Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function Evidence Camera Linkage, Specific Lane Management
White/Black List Up to 20,000 records inside the camera
LPR Smart Search Support

Illuminator
Supplement Light White LED Light
Light Bead 6 (For White LED Light)
Illumination Distance Up to 180m
Light Control Auto/Always On/Off/Customize

Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 2/2
Wiegand Standard Wiegand 26-bit

Video
Max. Image Resolution 3840x2160 (4K ULTRA HD)
Primary Stream 60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

System
System Compatibility API, HTTP, TCP, Wiegand Protocol, ONVIF Profile G & M & S & T
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Black/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.

General
Working Temperature -40°~60°C
Working Humidity 5~90%(Non-condensing)
Power Supply DC 12V / 3A±10% (Non-PoE)
Power Consumption 5W MAX,31W MAX (For White LED Light)
Surge Protection 4KV
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing (Without Supplement Light)
Surge Protection 4KV
Weight 1445.8g
2100g (With Supplement Light)
Dimensions 282mmX108mmX120mm
282mmX108mmX225mm (With Supplement Light)
Warranty 3/5 Years
