A2Z PDN49I225-XR 1080P 25x Starlight AI 100m IR PTZ IP Camera

A2Z PDN49I225-XR 2MP Starlight AI IR PTZ IP Camera is the latest generation of this popular PTZ series which boast enhanced performance, compact size and affordable cost. The unit is equipped with an array of cutting-edge features from superior Starlight (Low Light) capabilities to added Artificial Intelligence. Despite its attractive low-profile size this IR PTZ IP Camera rivals full sized Pan/Tilt/Zoom network cameras several times its cost. The perks range from powerful optical zoom with an over 300ft IR night vision range to support for multi-streaming with quality compression methods like H.265 and full 1080p resolution at up to 60fps. Ready for stand-alone operation including indoor or outdoor surveillance applications this Pan/Tilt/Zoom IP camera further integrates easily with IP camera systems including 3rd party systems via ONVIF compliance. The unit’s price for performance ratio is outstanding offering undeniably professional results at an amazing price.

PDN49I225-XR Main Features:

• 1/2.8” 2 Megapixel CMOS Image Sensor
• Exceptional 25x optical zoom in Compact Casing
• Starlight technology for ultra-low light color and b/w imaging
• Added IR Night Vision effective up to 100m (approx. 328ft)
• True Wide Dynamic Range (WDR) Rated 120dB
• Superior Frame Rates of up to 60fps @ Full 1080P HD
• Artificial Intelligence: Perimeter protection w/Detection and Classification of Humans vs Vehicles Plus Alarm/Event Trigger Filtering
• Advanced Motion Detection w/SMD Plus and Video Analytics like Tripwire/Intrusion
• Micro SD Card Slot for edge-storage up to 256GB
• Flexible 12VDC or PoE+ Power Inputs
• Weatherproof IP66 rated with a robust all metal casing

Powerful Video and Audio Surveillance:
A2Z PDN49I225-XR 2MP AI Starlight 25x IR PTZ IP Camera is a fully loaded PTZ security camera boasting the latest image advancements. The units Starlight STARVIS sensor provides incredibly low light Color Imaging as well as Monochrome imaging even without use of its IR night vision. However, by default its Night Vision is set to proportionally adjust according to zoom ratio enabling the unit clear sight even in zero light at over 300ft away. This combined with attributes like true 120 dB WDR (Wide Dynamic Range) or its Ultra DNR (3D + 2D) only further ensure this unit will achieve the sharpest imaging possible be it high contrast scenes or poor lighting. Image Stabilization to defog and more are all included quick ling establishing this unit as best in class PTZ model. The in-depth image settings are equally matched with highly adjustable video stream settings including multiple individual stream configurations with compression method options the likes of H.265 and H.264. The device further supports external Microphone and Speaker connections and boast all of the best compression methods for audio be it AAC to numerous G type compressions.

Super Smart with Artificial Intelligence:
This AI equipped, IR PTZ IP Camera provides a wealth of intelligence, its rich in event trigger options of course included options like standard motion detection to audio detection. However now modernized this unit adds multiple layers of detection capabilities that not only grant more advanced detection like intrusion or tripwire but further provide actual automated classification of vehicle and human detection which is further output in its metadata greatly improving search capabilities as well as functions like automatic Alarm filtering which works to dramatically reduce false alarms which seriously helps project applications depending on alarm notifications.

Highly Adaptable:

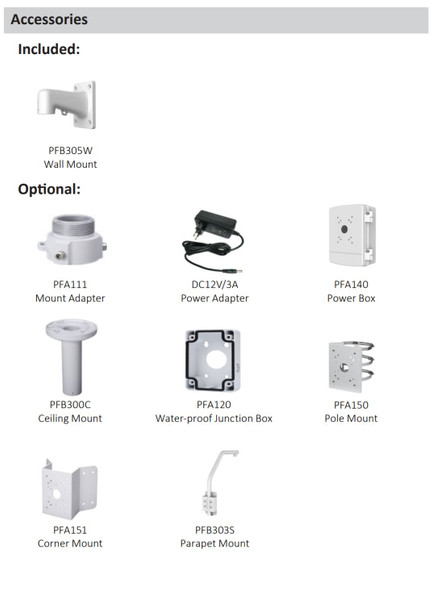

The A2Z OEM PDN49I225XR 2MP Starlight AI IR PTZ Security Camera is a powerful Pan/Tilt/Zoom IP Camera solution without a doubt. The device can provide easy integration including passing metadata and use of its intelligent detection to third party IP camera systems via ONVIF S and G compliance. The device can likewise surely operate all alone with built-in full function web interface and high capacity on-board Micro SD Card storage this PTZ is a versatile option for all sorts of security camera system and surveillance requirements. The unit is constructed from Aluminum alloy including its hanging "IR ball" section and is rated to IP66 weatherproof standards with a very wide operating temperature range well into extreme conditions making perfect for nearly any outdoor environment. Supplied with a sturdy wall mount pendant bracket the unit can also utilizes numerous accessories to adapt to all sorts of installation needs such as NPT pipe or pole mount adapters. Supporting PoE 802.3at as well as 12V DC input with low power draw make it a unique option in the market.

More Specifications:

Camera:
1/2.8" STARVIS™ CMOS Image Sensor
Effective Pixels: 2MP Max. Resolution 1920 (H) × 1080 (V) Full 1080P
ROM: 4GB | RAM: 1GB | Progressive Scanning System
Electronic Shutter Speed: 1/1 s–1/30,000 s
Min. Illumination Color: 0.005 Lux @F1.6; B/W: 0.0005 Lux @F1.6; 0 Lux @F1.6 (IR light on)
IR (Infrared) Night Vision Distance 100m (328.08 ft)
IR Settings: On/Off Control, Zoom Prio, Manual 1~100 percent near & far sets, Smart IR
High Powered IR LEDs Number: 6
Lens: Optical Zoom 25x i.e. Focal Length 4.8mm – 120mm. Max. Aperture F1.6–F4.4
Field of View (FOV): H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9°
Focus Controls: Auto/Semi-Auto/Manual
Close Focus Distance: 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Controls: Auto/Manual

DORI Distances:
Detect
1613 m (5291.99 ft)
Observe
646 m (2119.42 ft)
Recognize
323 m (1059.71 ft)
Identify
161 m (528.22 ft)

PTZ:
Pan/Tilt Range: Pan: 0°–360° (endless), Tilt: -15°–90° (auto flip 180°)
Manual Control Speed: Pan: 0.1°–200°/s, Tilt: 0.1°–120°/s
Preset Speed: Pan: 240°/s, Tilt: 200°/s
Max Number of Presets: 300
Max Tours: 8 (up to 32 presets per tour)
Max Patterns: 5
Max Scan actions: 5
Speed Adjustment: 1 ~ 5
Power-off Memory (Return to last setting including Pan/Tilt/Zoom)
Idle Motion Actions: Preset, Tour, Pattern, Scanning
Control Protocol: DH-SD & Pelco-P/D (auto recognition)

General Intelligence & Event Triggers:
Object Abandoned or Missing, Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Artificial Intelligence (A.I.):
Perimeter Protection with Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms such as animals, rustling leaves, bright lights, etc.
Support Advanced Motion detection technology SMD Plus
Supports Face Detection
Video Metadata:
Support human, motor vehicle and non-motor vehicle image capture.

Video
Compression: H.265+, H.265, H.264+, H.264, MJPEG (sub stream)
Triple Streaming Capability: 3 individually set video streams
Supported Resolutions: 1080P (1920 × 1080); 1.3MP (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Supported Max Frame Rates & Max Resolutions Per Stream:
Main stream: 1080P /1.3MP / 720P (1–50/60fps)
Sub stream 1: D1 / CIF (1–25/30fps)
Sub stream 2: 1080P / 1.3MP / 720P / D1 / CIF (1–25/30fps)
Bit Rate Controls: Variable Bit Rate (VBR) or Constant Bit Rate (CBR) selectable
Bit Rate H.265/H.264: 3 kbps–20480 kbps Adjustable
Day/Night Modes: Auto (ICR), Color or B/W
Backlight technologies: BLC, HLC and WDR 120 dB Supported
Noise Reduction Ultra DNR (2D/3D)
White Balance Modes: Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp
Gain Controls: Auto or Manual
Region of Interest, Electronic Image Stabilization (EIS) & Electronic Defog
Supports Digital Zoom 16x & Flip 180°
Privacy Masking Up to 24 areas, and up to 8 areas in the same view

Audio
Compressions: G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729

Network
IT Protocols:
IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Interoperability: ONVIF Profile S&G; CGI
Streaming Methods: Unicast & Multicast support
Max User/Host: 19

Storage Options:
Supports NAS; Via Local PC Interface; Micro SD card slot (up to 256GB)

Remote Viewing:
Web Browsers:
IE7 and newer versions
Chrome 45 and newer versions
Firefox 52 and earlier versions
Safari (no version restrictions)
FREE Management Software: PC and MAC support
FREE Mobile Apps for Smart Phones and Tablets with IOS or Android OS

Certifications:
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No. 60950-1

Interface Connections:
Audio In 1, Audio Out 1
Alarm Port I/O: 2/1
Ethernet Female RJ-45 (10/100Base-T)

Power
Power Input: 12V DC 3 amp or PoE+ (802.3at)
Power Consumption: 13W, 22W (IR on)

Environmental:
Operating Conditions: Temperature: -40°C to +70°C (-40°F to +158°F) & Humidity: ≤95%
Ingress Protection: IP66 Weatherproof; TVS 6000V lightning proof; Surge protection
Construction: Aluminum alloy ADC12 Casing
Dimensions: Φ160mm × 295mm or Φ6.30" × 11.61"
Weight: 3 kg or 6.61 lbs.

Last Updated: March 1st, 2020
