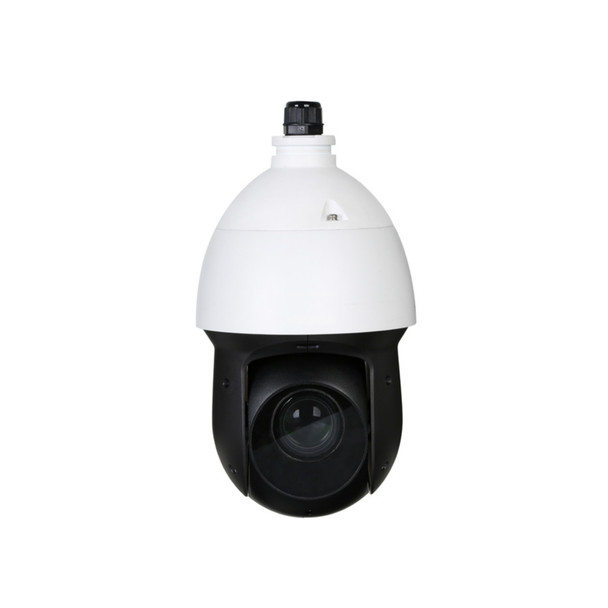

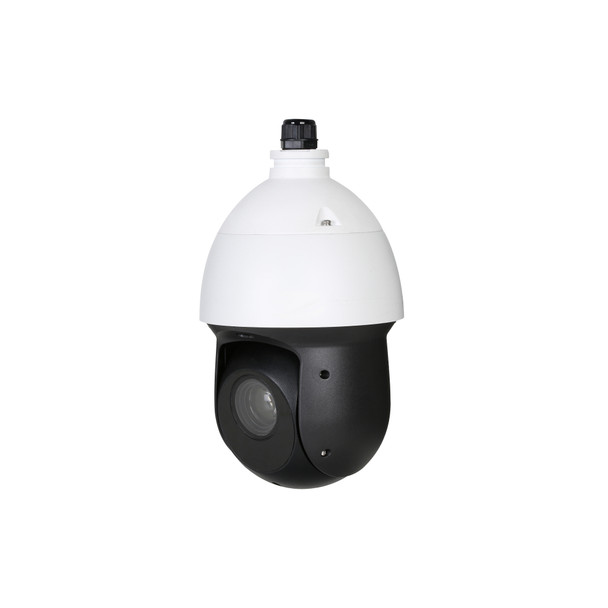

A2Z PDN49I425XR 4MP Starlight 25x AI 100m IR PTZ IP Camera

A2Z PDN49I425XR 4MP 25x AI IR PTZ IP Camera is an all new network Pan/Tilt/Zoom security camera loaded with the most desirable features at an excellent cost. First off, the device utilizes the STARVIS Starlight Sensor yielding incredible Color Imaging in ultra-low light conditions which likewise of course boast its night time monochrome imaging as well even without the use of its integrated 100-meter IR illumination. Compact in size this PTZ unit rivals’ full size PTZs often twice its size and cost at least. It does so with stunning 4-megapixel HD resolution in high frame rates while also offering a huge assortment of cutting-edge features in all aspects. The unit boast everything from AI (Artificial Intelligence) for sophisticated detection capabilities to diverse functionality as a stand-alone surveillance solution or as part of a greater security camera system including 3rd party IP camera systems. Fully outdoor ready the unit provides both impressive HD video imaging plus precise pan/tilt/zoom control. From H.265 compression to diverse IT protocol support this unit is set to be a best in class model just like its 2MP counterpart.

PDN49I425XR Main Features:

• 1/2.8” 4 Megapixel CMOS Image Sensor
• Exceptional 25x optical zoom in Compact Casing
• Starlight technology for ultra-low light color and b/w imaging
• Added IR Night Vision effective up to 100m (approx. 328ft)
• True Wide Dynamic Range (WDR) Rated 120dB
• Superior Frame Rates of up to 30fps @ Full 4 Megapixel HD
• Artificial Intelligence: Perimeter protection w/Detection and Classification of Humans vs Vehicles Plus Alarm/Event Trigger Filtering
• Advanced Motion Detection w/SMD Plus and Video Analytics like Tripwire/Intrusion
• Micro SD Card Slot for edge-storage up to 256GB
• Flexible 12VDC or PoE+ Power Inputs
• Weatherproof IP66 rated with a robust all metal casing

Superior Video Imaging, Professional Results:
The PDN49I425XR 4MP IR PTZ IP Camera will satisfy experienced professionals and users alike thanks to its rich assortment of industry leading specifications. The units triple streaming offers up to 30fps real-time video in full 4MP HD resolution while its sub-streams offer up to 1080p and D1 resolutions respectively. Each is individually configured and a variety of pro video stream settings are all found in its menu including the latest H.265+, H.265, H.264+ and H.264 compressions. The units likewise boast excellent imaging qualities with in-depth image adjustments available and enhancements like 120 dB WDR (Wide Dynamic Range) to Ultra DNR, Image Stabilization, Defog and more. All of this paired together Alongside its 25x optical zoom and this PTZ's DORI rating indicate it is capable of detection at over 8,300 ft, observation at over 3,300 ft, recognition at over 1,600ft and identification at over 800ft!

Superbly Smart with Artificial Intelligence (AI):
The PDN49I425XR 4 Megapixel IR PTZ IP Camera includes A.I. with support for functions like detecting between vehicles and humans as well as added false alarm filtering to Face Detection. The unit further outputs this Metadata and can even share that Data with other integrated systems or 3rd party systems meeting its same levels of ONVIF S or G compliance. along with this there are nearly a dozen other methods for event triggering including everything from basic and advanced Motion Detection to Tripwire or Intrusion Analytics to Audio Detection, I/O input as well as network and scene related triggers too. All of this and more advances in its event trigger abilities contribute to these units providing an unprecedented amount of capabilities in a security camera alone allow for a whole new generation of high effective stand-alone solutions to large-scale system deployments that maximize live monitoring, real-time alerts to recording efficiency.

Easy Adaptation:
Supplied with a wall mount bracket this pendant style IP PTZ Camera is hardly as obtrusive as full sized PTZ cameras making it perfect even in residential applications. The device can of course support an array of mounting options and a few such options include corner brackets, pole mount adapters to ceiling mount or NPT accessories. Outdoor ready, the PTZ is rated to IP66 weatherproof standards and likewise has a wide operating temperature range meaning even environments of extreme cold and heat are of little concern. Simplified install couldn't be easier with its support of PoE+ (Power over Ethernet 802.3at) which is these days commonly found on numerous PoE enabled network switches. Also offering 12V DC power input and either with low power consumption the PTZ is a unique option where many Pro PTZs tend to use 24V AC.

MORE Specifications:

1/2.8" STARVIS™ CMOS Image Sensor
Effective Pixels 4MP Max. Resolution 2560 (H) × 1440 (V)
ROM: 4GB RAM: 1GB Scanning System: Progressive
Electronic Shutter Speed: 1/1 s–1/30,000 s
Min. Illumination: Color: 0.005 Lux @F1.6; B/W: 0.0005 Lux @F1.6; 0 Lux @F1.6 (IR light on)
IR Night Vision Distance: 100 meters (328.08 ft)
IR Settings: On/Off Control, Zoom Proportional, Manual, Smart IR
IR LEDs: Number 4
Lens Focal Length 4.8 mm–120 mm Max. Aperture F1.6–F4.0
Field of View (Wide to Tele): H: 60.0°–2.5°; V: 30.8°–2.2°; D: 66.7°–2.9°
Optical Zoom 25x
Focus Controls: Auto/Semi-Auto/Manual
Close Focus Distance: 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control: Auto/Manual

DORI Distance
Detect
2540 m (8333.33 ft)
Observe
1016 m (3333.33 ft)
Recognize
508 m (1666.67 ft)
Identify
254 m (833.33 ft)

PTZ
Pan/Tilt Range: Pan: 0°–360° (endless) Tilt: -15°–90° (auto flip 180°)
Manual Control Speed: Pan: 0.1°–200°/s Tilt: 0.1°–120°/s
Preset Speed Pan: 240°/s Tilt: 200°/s
Max Number of Presets: 300
Max Tours: 8 (up to 32 presets per tour)
Max Pattern: 5
Max Scans: 5
Support Speed Adjustments
Power-off Memory allows return to last status.
Idle Motion Actions: Preset/Tour/Pattern/Scanning
Protocol: DH-SD and Pelco-P/D (auto recognition)

General Intelligence & Event Triggers
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly, Object Abandoned/Missing
Artificial Intelligence (A.I.): Perimeter Protection via Tripwire and intrusion. Supports alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
SMD Plus & Face Detection Supported
Video Metadata Support human, motor vehicle and non-motor vehicle image capture.

Video
Compression: H.265+, H.265, H.264+, H.264, MJPEG (sub stream)
Streaming Capability 3 streams
Resolutions: 4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x 1080); 1.3M (1280 x 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Max Frame Rate & Max Resolution per Stream
Main stream: 4MP/3MP/1080P/1.3MP/720P (1–25fps)
Sub stream 1: D1/CIF (1–25fps)
Sub stream 2: 1080P/1.3M/720P (1–25fps)
Bit Rate Control: Variable Bit Rate (VBR) or Constant Bit Rate (CBR)
Bit Rates H.265/H.264: 3 kbps–20480 kbps
Day/Night Settings: Auto (ICR)/Color/B/W
Backlight/Image Enhancements: BLC, WDR 120 dB, HLC
White Balance Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp
Gain Control: Auto/Manual
Noise Reduction: Ultra DNR (2D/3D)
Region of Interest, Electronic Image Stabilization (EIS), Electronic Defog
Digital Zoom 16x & Flip 180°
Privacy Masking Up to 24 areas, and up to 8 areas in the same view

Audio
Compressions: G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729
Network
Ethernet Female RJ-45 Connector (10/100Base-T)
IT Protocols Protocol
IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Interoperability: ONVIF Profile S&G; CGI
Streaming Methods: Unicast and Multicast
Remote User/Host 19
Edge Storage NAS; Local PC; Micro SD card (256G)
Web Browsers:
IE7 and newer versions
Chrome 45 and earlier versions
Firefox 52 and earlier versions
Safari (no version restrictions)
FREE Management Software PC or MAC
FREE Mobile Apps Smart Phone and Tablets of IOS or Android

Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No. 60950-1

Port
Audio In 1
Audio Out 1
Alarm Port 2/1

Power
Power Input: 12V DC 3 Amp or PoE+ (802.3at)
Power Consumption: 13W 21W (IR on)

Environment:
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Operating Humidity: ≤95%
Ingress Protection IP66 Weatherproof; TVS 6000V lightning proof; Surge protection
Casing Constructed of Aluminum alloy ADC12

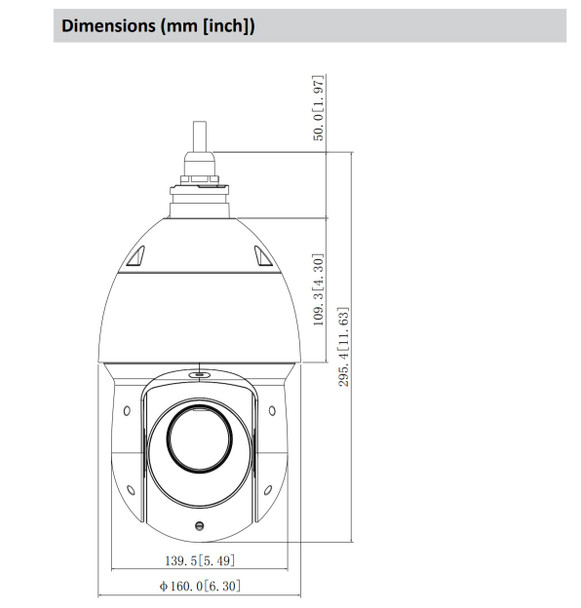

Dimensions: Φ160 mm × 295 mm (6.30" × 11.61")
Weight: 3 kg (6.61 lbs.)

Compare to Dahua SD49425XB-HNR

Last Updated: March 1st, 2020
