Samsung SCD-2021R Mini IR Dome Security Camera

Write a Review
SKU:
SCD-2021R
Shipping:
Calculated at Checkout
  • Samsung SCD-2021R IR Dome Security Camera

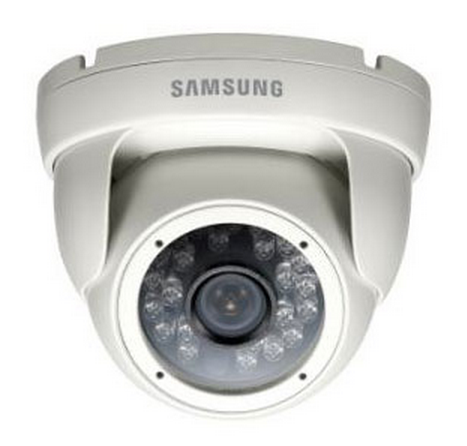

  • Samsung SCD-2021R IR Dome CCTV Camera
  • Samsung SCD-2021R top view IR Dome
  • Samsung SCD-2021R base
  • Samsung SCD-2021R size
$75.50

Description

Samsung SCD-2021R Mini IR Dome Camera is an innovative new line of CMOS based, low cost, high performance Samsung Security Cameras. The unit includes 650TVL high resolution and a night vision range of 65ft with integrated infrared (IR) LEDs. The units provide a compact yet superior solution for indoor video security with Auto Image Enhancements and DNR (Digital Noise Reduction). The IR Dome Cameras have a 3.6mm fixed lens providing about a 75 degree horizontal view for wide area coverage.

The Samsung SCD-2021R IR Dome Security Cameras has a discreet foot print measuring about three and half by three inches. Their sleek design, low cost and top tier attributes make the perfect choice for around the clock video surveillance. The security cameras deliver superior cost per performance ratio and users will enjoy the Samsung quality plus value they deliver to any security camera system.

Samsung SCD-2021R Main Features:

  • Imaging Device 1/3" CMOS
  • Total Pixels: 680(H) x512(V)
  • Scanning System: 2:1 Interlace
  • Synchronization Internal
  • Frequency: NTSC: H: 15.734Hz / V: 59.94Hz PAL: H: 15.625Hz / V: 50Hz
  • Horizontal High Resolution Color: 650TVL
  • Min. Illumination 0 Lux (IR LED on)
  • S/N Ratio 46dB (AGC off, Weight on)
  • Video Output CVBS: 1.0 Vp-p / 75O composite
  • Fixed Lens Focal Length (Zoom Ratio): 3.6mm
  • Angular Field of View (FOV): H: 75.7° / V: 66° / D: 90°
  • Min. Object Distance 0.2m (0.66ft)
  • ICR Day/Night: Auto
  • Digital Noise Reduction (DNR): Auto
  • Gain Control: Auto (AGC)
  • White Balance: Auto (AWB 3,200°K ~ 6,500°K)
  • IR Distance: 20 meters (IR LED 12ea)
  • Operating Temperature: -10°C ~ +40°C (+14°F ~ +104°F) Humidity: Less than 90% RH
  • Power Voltage Input: 12VDC Power Draw: Not fixed
  • Construction: Color: Ivory - Material: Plastic
  • Dimensions: (Waxy) Ø93.0 x 78.0mm (Ø3.66" x 3.07")
  • Weight: 160g (0.35 lb.)
