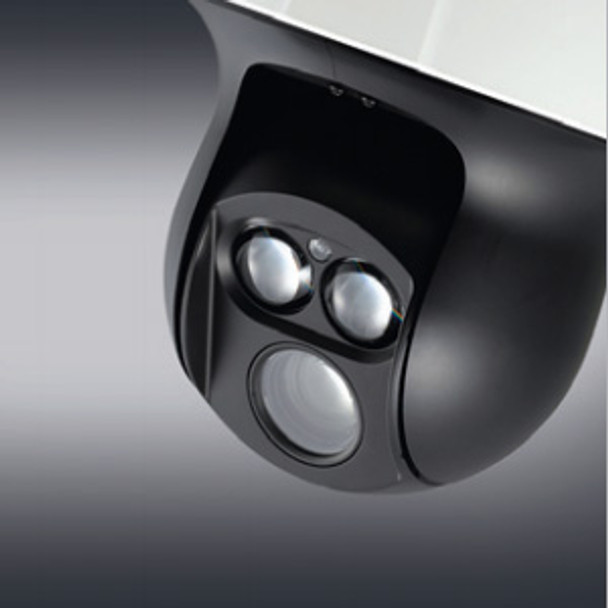

Samsung SCP-2370RH 37x IR PTZ Dome Security Camera

Samsung SCP-2370RH 37x IR PTZ Dome Security Camera delivers envious performance in Pan Tilt Zoom cameras with high optical zoom, Superior High Resolution, and an innovative high power Infrared Night Vision. The Samsung SCP-2370RH IR PTZ Security Camera utilizes latest Samsung and Image sensor technology to produce vivid 600TVL and 700TVL High Resolution CCTV video surveillance. Additional attributes like SSNRIII, SSDR, Sens Up with a variety of backlight and white balance options ensuring the most optimal video capture. The Samsung IR PTZ Security Camera includes unique dual high intensity IR illuminators for up to 100 meters of Infrared night vision. The Infrared LEDs are further enhanced by the camera's auto adjusting IR power function optimizing Illumination for video clarity.

The Samsung SCP-2370RH Infrared PTZ Dome Camera is also supported by a fully comprehensive OSD. The OSD (On Screen Display) which along with the Pan tilt Zoom can be controlled via RS-485 or coaxil communication. The camera is also multi protocol for RS-485. The Samsung SCP-2370RH Infrared PTZ Dome Cameras offer Pan Tilt Zoom Mechanisms with high end 37x optical zoom as well as high speed and highly accurate P/T movement. The IR PTZ Cameras are built in a robust aluminum weatherproof housing with an outdoor environmental rating of IP66. The Samsung SCP-2370RH IR PTZ cameras set a new standard in surveillance for cctv security camera systems.

Samsung SCP-2370RH 37x IR PTZ Dome Security Camera

• High Resolution of 600TV Lines ( Color ), 700TV Lines ( B/W )
• Min. Illumination 0 Lux @F1.6 (IR LED On), 0.2Lux @F1.6 (Color), 0.02Lux (B/W)
• Superior 37x Zoom (3.5 ~ 129.5mm), with Digital 16x Zoom
• Dual High Power IR LEDs for up to 100 meter Infrared Night Vision
• IR intensity adjustment with zooming in/out ratio
• True Day & Night (ICR), MD, SSNRIII (3D+2D Noise Reduction)
• IP66 Weatherproof rated outdoor construction
• Coaxial Control (Pelco-C) or Multi Protocol RS-485
• Powered via 24VAC up to 90W

Samsung SCP-2370RH Specifications:

• Imaging Device 1/4" Super HAD ? CCD
• Total Pixels 811(H) x 508(V) 795(H) x 596(V)
• Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
• Scanning System 2 : 1 Interlace
• Synchronization Internal / Line Lock Internal / Line Lock
• Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
• Horizontal Resolution Color : 600 TV lines / BW : 700 TV lines
• Min. Illumination
• Color : 0 Lux @ F1.6 ( IR LED On ), 0.2Lux @ F1.6, 0.0004 Lux (Sens-up, 512x)
• B/W : 0.02 Lux @ F1.6, 0.00004 Lux ( Sens-up, 512x )
• S / N Ratio 52dB (AGC off, Weight on)
• Video Output CVBS : 1.0 Vp-p / 75O composite
• Focal Length (Motorized Zoom Ratio) 3.5~129.5mm ( Optical 37x )
• Max. Aperture Ratio 1:1.6 (Wide) ~ 3.9 (Tele)
• Angular Field of View H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele)
• Min. Object Distance 1.5m (59.06")
• Focus Control Auto / Manual / One Shot
• Zoom Movement Speed 2.8 sec
• PAN / TILT
• Pan Range 360° Endless
• Pan Speed Preset : 250°/sec / Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio)
• Tilt Range -5° ~ 185°
• Tilt Speed Preset : 250°/sec / Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio)
• Preset 255
• Preset Accuracy ±0.1°
• On Screen Display
• English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
• English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech,Turkish, Portuguese
• Camera Title Off / On (Displayed 12 characters)
• Day & Night Auto (ICR) / Color / B/W
• Backlight Compensation BLC / HLC / Off
• Contrast Enhancement SSDR ( Off/On )
• Digital Noise Reduction SSNR ( Off/On )
• Digital Image Stabilization Off / On
• Motion Detection Off / On
• Privacy Masking Off / On (8 programmable zones)
• Sens-up (Frame Integration) 2x ~ 512x
• Gain Control Off / Low / High
• White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
• Electronic Shutter Speed 1/60 ~ 1/120,000 sec 1/50 ~ 1/120,000 sec
• Digital Zoom Off / On (2x ~ 16x)
• Digital Flip Off / On
• Schedule Day / Time
• Alarm 8 In 3 Out
• Communication Coaxial Control ( SPC-300 Compatible ), RS-485/422
• Protocol Coax : Pelco-C ( Coaxitron )
• Protocol RS-485: SAMSUNG-T/E, PELCO-D/P, PANASONIC, BOSCH, HONEYWELL, VICON, AD, GE
• IR Distance 100m ( 850nm IR LED : 2EA )
• Operating Temperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F) / Less than 100% RH
• Ingress Protection IP66
• Input Voltage/Current 24V AC±10%
• Power Consumption Max. 15W / 90W (Fan & Heater on)
• Color / Material Ivory, Aluminum

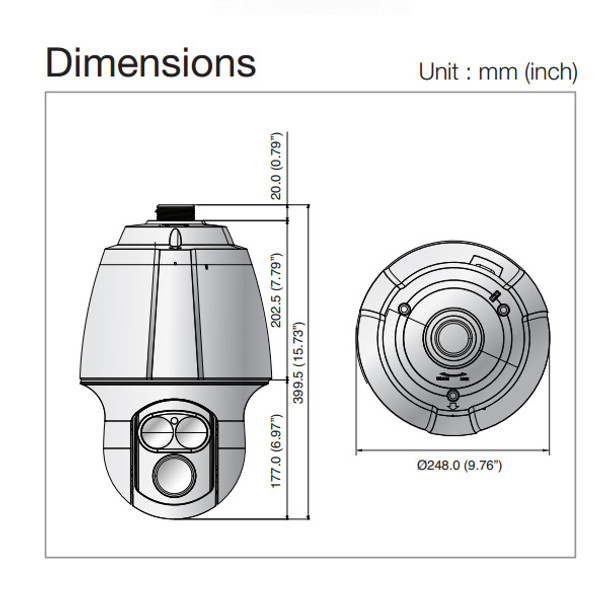

• Dimension (WxHxD) Ø248×399.5mm (Ø9.76” x 15.73”)
• Weight 6Kg (13.23lb)



An assortment of mounting accessories are available.
