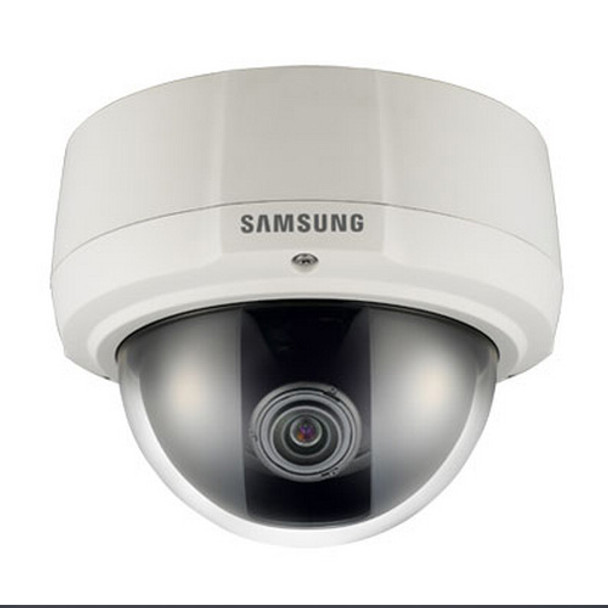

Samsung SCV-3081 Vandal Proof WDR Dome Security Camera

Samsung SCV-3081 Vandal Proof WDR Dome Security Camera is a compact yet high performance unit in the Samsung vandal dome camera series. The Camera utilizes the Samsung SV-V chipset to not only produce amazing 600tvl and 700tvl high resolution but also improve image quality. The camera true day/night operation and true WDR Wide Dynamic Range feature ensure low light performance and absolute video clarity. Other features like SSNRIII, Sens Up, and a variety of image settings allow further image enhancements. The unit has a fully loaded OSD that can further be supported via coaxil communication. The vandal proof dome security camera is in addition designed with a varifocal lens and 3 axis camera bracket for easy camera adjustment. The SCV-3081 Vandal Resistant Dome moreover offers built in Video Analytics, Privacy Masking and Digital Image Stabilization for the most demanding surveillance systems. The SCV-3081 CCTV Dome supports Dual Voltage for easy adoption of power needs. The SCV-3081 Vandal Proof Dome Security Camera from Samsung are also built in rugged IP66 weatherproof casing with High Impact IK10 ratings. The units are the perfect solution for indoor or outdoor systems facing harsh environments.

Samsung SCV-3081 Main Features:

• High resolution of 600TVL (COLOR) and 700TVL (B/W)
• Min.illumination 0.3Lux@F1.2 (Color), 0.01Lux (B/W) or 0.00002Lux(Sens-up, x512)
• 3.9x Varifocal DC Auto Iris lens (2.8 ~ 11mm)
• True Day & Night (ICR) Mechanical IR Cut filter
• SSNRIII Samsung Super Noise Reduction
• True WDR Wide Dynamic Range
• IP66 Weatherproof construction
• Coax Communication : Pelco-C
• Dual Power Support 12VDC or 24VAC

Samsung SCV-3081 Specifications:

• Imaging Device 1/3" Super HAD CCD (Double Scan)
• Total Pixels 811(H) x 508(V) 795(H) x 596(V)
• Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
• Scanning System 2 : 1 Interlace
• Synchronization Internal/Line Lock
• Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
• Horizontal Resolution Color : 600 TV lines, B/W : 700TV lines
• Min. Illumination
• Color : 0.3Lux (50IRE@F1.2), 0.0006Lux(Sens-up, x512)
• B/W : 0.01Lux(50IRE@F1.2), 0.00002Lux(Sens-up, x512)
• S / N Ratio 52dB (AGC off, Weight on)
• Video Output CVBS : 1.0 Vp-p / 75O composite
• LENS TYPE
• Focal Length (Zoom Ratio) 2.8 ~ 11mm (3.9x)
• Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
• Angular Field of View H : 94.°(Wide) ~ 26°(Tele) / V : 67°(Wide) ~ 20°(Tele)
• Min. Object Distance 0.2m
• Lens Type DC Auto Iris
• Mount Type Board Type
• 3 AXIS ADJUSTMENT PAN / TILT / ROTATE
• Pan Range 0° ~ 352°
• Tilt Range 0° ~ 73°
• Rotate Range 0° ~ 348°
• On Screen Display
• NTSC: English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
• PAL :English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
• Camera Title Off / On (Displayed 15 characters)
• Day & Night Auto (ICR) / External / Color / B/W
• Backlight Compensation Off / User BLC / HLC / SSDR / WDR
• Wide Dynamic Range 128x (52dB) 160x (54dB)
• Contrast Enhancement SSDR
• Digital Noise Reduction SSNRIII (Off / On)
• Digital Image Stabilization Off / On
• Motion Detection Built-in
• Privacy Masking Off / On (12 programmable zones)
• Sens-up (Frame Integration) 2x ~ 512x
• Gain Control Off / Low / High
• White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
• Electronic Shutter Speed 1/60 ~ 1/120,000 sec 1/50 ~ 1/120,000 sec
• Digital Zoom Off / On (1x ~ 16x)
• Reverse Off / H-Rev / V-Rev / HV-Rev
• Profile Basic, Day & Night, Backlight, ITS, Indoor, User
• VPS Off / On
• Intelligent Video Fixed_Moved, Area, Fence, Tracking, Detection, Counting
• PIP Off / On
• Alarm 1 Out
• Communication Coaxial Control (SPC-300 Compatible)
• Protocol Coax : Pelco-C (Coaxitron)
• Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / up to 100%
• Ingress Protection IP66 Weatherproof
• Input Voltage Dual (24VAC±10% & 12VDC±10%)
• Power Consumption Max. 3W
• Color / Material Body : Ivory, ALDC12, Dome Cover : PC
• Dimension (WxH) Ø137.0 x 106.0mm (5.39" x 4.17")
• Weight 700g (1.54 lb)
