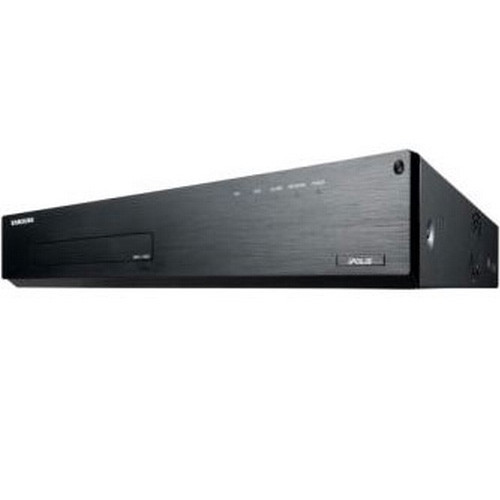

Samsung SRN-1000 NVR 64ch Network Video Recorder

Samsung SRN-1000 64ch NVR Network Video Recorder is a new high performance linux embedded NVR system for superior IP Video Surveillance. The SRN-1000 Samsung NVR is designed to provide viewing and recording of up to 64 IP cameras. In addition to supporting Samsung Network Security Cameras, IP Cameras with ONVIF compliance are also supported. The NVR System delivers the reliability of traditional Linux Based Samsung DVRs with an all in one solution capable of accommodating even enterprise level IP Camera Systems. The Samsung SRN-1000 NVR System provides further user convenience with features like large on board storage for up to 8 drives, eSATA for external drive storage arrays, Alarm Terminal inputs, Relay outputs, audio support and even dual gigabit LAN ports.
Samsung SRN-1000 Network Video Recorder is a perfect choice for medium to large scale IP Video surveillance systems seeking professional video management, with high performance and cost effectiveness. Various intelligent features from Event Trigger Recording to Event Action the Samsung SRN-1000 delivers a comprehensive NVR System solution. The SRN-1000 Samsung NVR system includes by default a 1TB Storage Drive and covers can expand to an impressive 48TB storage array using a combination of internal drives and external drive options. All major compression methods such as JPEG, MPEG-4 or H.264 formats and High definition resolutions up to 5 megapixel are supported. The Samsung SRN-1000 Linux NVR provides powerful remote viewing with NET-i Viewer and web browser applications. The unit offers easy video file management and back up with export to AVI and JPEG file formats. Samsung iPOLIS DDNS is also included for easy user remote viewing setup. The Samsung SRN-1000 NVR is a commercial grade Video Recorder perfect for a variety of professional IP Video Surveillance Systems.

Samsung SRN-1000 NVR Main Features

• Up to 64CH support
• Stand-alone Linux Embedded
• Supports Samsung and ONVIF Cameras
• 100Mbps network camera recording
• VGA ~ 5 megapixel high resolution viewing / recording
• Multiple Compression formats supported H.264, MPEG-4 & MJPEG
• Up to 8 internal HDDs with up to 48TB using external eSATA expansions
• up to 64ch audio supported
• Alarm Terminal Inputs/Outputs

Samsung SRN-1000 NVR Specifications

DISPLAY
IP Camera Inputs: Up to 64CH
Resolution: CIF ~ 5M
Camera Protocols: Onvif (Axis, Sony, Panasonic), Samsung
Live Multi Screen Display 1 / 4 / 9 / 16, Sequence
PERFORMANCE
Operating System Embedded Linux
Recording Compression: H.264, MPEG-4, MJPEG
Recording Bit Rate: 100Mbps
Resolution: CIF ~ 5MP
Mode: Manual, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger: Alarm input, Video loss, Camera event (Video analytics)
Event Action: E-mail, PTZ preset, Alarm buzzer
Search & Playback
Search Mode: Date/time, Event
Simultaneous: Playback 4CH
Resolution: CIF ~ 5MP
Playback Function: Fast forward / Fast backward, Move one step up / Move one step down
Storage
Internal HDD: Up to 8 SATA HDDs
External (e-SATA Interface): e-SATA (2 port)
File Format (Back up): JPEG, AVI
NETWORK
Ethernet RJ-45, Gigabit Ethernet x 2
Protocol Support
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, ONVIF
DDNS Samsung iPOLiS DDNS
Transmission Speed Up to 64Mbps
Max. Remote Users: Search 3 / Live unicast 10 / Live multicast 20
IP: IPv4
Security: IP address filtering, User access log, 802.1x authentication
Monitoring: NET-i viewer, Webviewer
INTERFACE
Audio Input: 64CH (Network)
Audio Compression G.711, G.726
Alarm Input / Output: Terminal 16 inputs (NO/NC), Terminal 4 outputs (Relay), Terminal 1 reset
Ethernet Connections: 2 RJ-45 10/100/1000 Base-T
eSATA Connections: 2 ports
GENERAL
Electrical
Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, 4 ~ 1.5A
Power Consumption Max 45W (154 BTU with 1 HDD), Max 170W (580 BTU with 8 HDD)
Environmental
Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity 20% ~ 85% RH
Mechanical
Dimensions (WxHxD) 440.0 x 88.0 x 426.8mm (17.32" x 3.46" x 16.80")
Weight (1x Hard Disks) Approx. 6.2Kg (13.67 lb)
