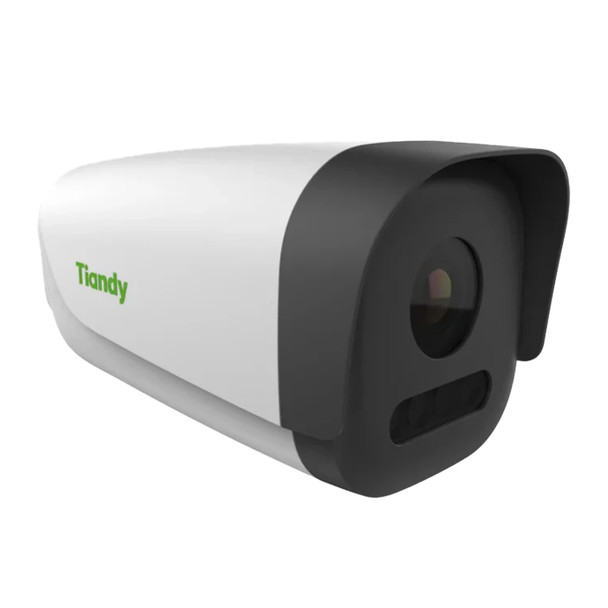

Tiandy TC-A32E4 Spec 1/E/12mm 2MP AI Facial Recognition Bullet IP Security Camera

Tiandy TC-A32E4 Spec 1/E/12mm 2MP AI Facial Recognition Bullet IP Security Camera is a specialty device serving security and other applications with an emphasis on Face Analysis for advanced functionality. This 2-Megapixel camera includes a telephoto 12mm lens and a combination of IR Night Vision LEDs as well as Warm White Light LEDs for flexible illumination capabilities. The benefits of modern video and audio compressions to image enhancements are all on-board while diverse network protocols are also supported allowing a wide adoption in the market for not only surveillance, but access control to other pro-video system demands. Built to allow indoor or outdoor installation the device supports universal security camera mounts and offers other core attributes like Alarm and Audio I/O connection for integration with external devices. As aforementioned, the Tiandy TC-A32E4 Spec 1-E-12mm 2MP AI Face Recognition Bullet IP Camera is especially well equipped for Facial Recognition demands performing sophisticated analysis at the edge to enable endless potential uses. Applications like entry systems, time & attendance, detecting missing / restricted / suspected individuals to improved security standards like 2FA or two-factor authentication can all benefit from facial recognition.

Tiandy TC-A32E4 Spec 1E12mm Main Features:

• 1/2.8-inch CMOS sensor
• Up to 1920 X 1080 /2MP @ 30fps
• Min. illumination Color: 0.01 Lux @ F2.0
• Fixed 12mm Lens
• Powerful IR Night Vision up to 50m
• White light LED Illumination distance 5m~8m
• Audio I/O and Alarm I/O support
• S+265/H.265/H.264/M-JPEG
• Face Recognition/face capture/intelligent monitoring mode
• Plug in Free Browser, P2P, Apps/Software
• IP67 weatherproof
• Does Not Include Mount - Supports 1/4-20
• PoE or 12VDC

TC-A32E4 Spec 1E12mm Specifications:

Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.01Lux@ (F2.0, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Lens Type Fixed
Focus 12mm
Lens Mount M12
Aperture F2.0, Fixed
FOV Horizontal field of view: 26°

Illuminator
IR LEDs 2
IR Range Up to 30m
Wavelength 850nm
White LEDs 2

Compression Standards
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate 8K~48Kbps

Max. Resolution 1920×1080 - 2-Megapixel
Main Stream
PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480)
NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream 4CIF
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 7 fixed region of coding
OSD: 16×16, 24×24,32×32, 48×48, 64x64, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
Picture Overlay Yes
Privacy Mask Yes
Smart Defog Yes

Feature:
Alarm Trigger: Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics: Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, On Duty Detection, Video Abnormal, Audio Abnormal

Face Detection and Analytics:
Operating Mode: Face recognition, face capture, intelligent monitoring optional, default face recognition
Face Detection Performance: Detects up to 32 faces at the same scene
Face Exposure Brightness: Default 35, 1-100 brightness optional
Min. Face Pixel Default 80, 19-1920 optional
Face Recognition Yes
Face Library 32
Face Pictures 5000
Face Library Management Retrieve, import, export
Face Recognition Alert Comparison Alarm, stranger alarm
Precautionary Alert N/A

Network
ANR N/A
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP,
IGMP, QoS, PPPoE
System Compatibility ONVIF (PROFILE S), SDK, CGI, P2P
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web6

Interfaces:
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio 1/1
Alarm 2/1
Reset Button N/A
On-board storage N/A

General
Web Client Language English, Simple Chinese
Operating Conditions -35℃～65℃, 0～95% RH
Power Supply DC12V±20%/PoE
Power Consumption MAX: 6W(12V) MAX: 7W(POE)
Protection IP67 Weatherproof
Heater N/A
Dimensions 180 x 94 x 95mm (7.09*3.7*3.74 inch)
Weight 0.65kg (1.43lb)
