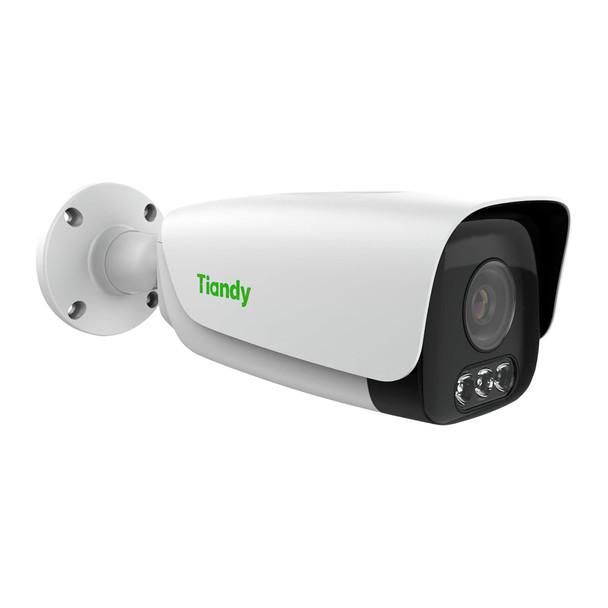

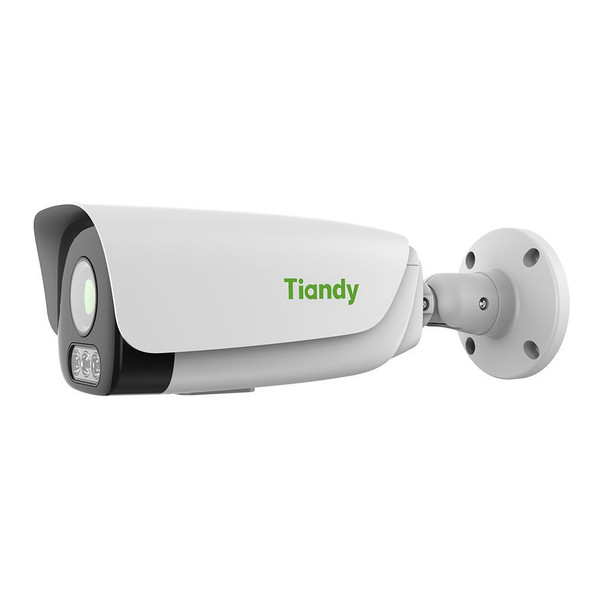

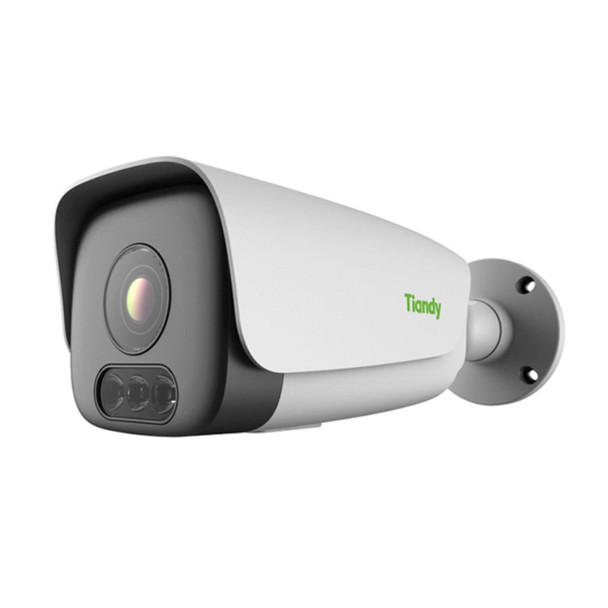

Tiandy TC-A32L4 Spec 1/A/E/2.812mm 2MP A.I. series Face Recognition Bullet IP Security Camera

Tiandy TC-A32L4 Spec 1/A/E/2.812mm 2MP A.I. series Face Recognition Bullet IP Security Camera is a special version of Tiandy's AI series cameras that focuses on Facial Video Analysis. The device provides exceptional performance in low light color video capabilities along with numerous other core attributes for superior surveillance ranging from its motorized lens to perks like its built-in microphone or dual illumination. Built with all the advantages commonly found in Pro-grade surveillance cameras and certainly capable of providing excellent video security, this device shines in its enhanced video analytics package that specifically triumphs in Facial Recognition functions. By performing advanced video content analysis of faces at the edge, the device can hold thousands of face records, multiple face libraries which of course includes the associated functions like import, export and retrieve or actions like comparison and stranger alarm triggers. The Tiandy TC-A32L4 Spec 1-A-E-2.812mm AI Facial Recognition IP Camera is an ideal choice for deploying sophisticated solutions with greater ease, benefiting projects like access control, missing / suspect / restricted individuals, Time and Attendance plus plenty more. With this and other intelligent A.I. powered video analytics to all around pro attributes, this AI bullet camera is well suited for general security with a level up in specific automated functions like EW (Early Warning) to advanced detection abilities not limited to Face Detection.

Tiandy TC-A32L4 Spec 1AE2.812mm Main Features:

• 1/2.8-inch CMOS sensor
• Up to 1920 X 1080 /2MP @ 30fps
• Min. illumination Color: 0.0004Lux@ F1.3
• S+265/H.265/H.264/M-JPEG
• Motorized 2.8-12mm Lens
• Powerful IR Night Vision up to 50m
• White light LED Illumination distance 2m~8m
• Built-in Microphone
• Audio I/O and Alarm I/O support
• Diverse IT Protocol Support
• Face Recognition/face capture/intelligent monitoring mode
• Plug in Free Browser, P2P, Apps/Software
• IP67 weatherproof
• PoE or 12VDC

Tiandy TC-A32L4 Spec 1AE2.812mm SPECIFICATIONS:

Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.0004Lux@ (F1.3, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Lens Type Motorized
Focus 2.8-12mm
Lens Mount Ø14
Aperture F1.3~F2.2, DC Drive
FOV Horizontal field of view: 95.7°～35.5°

IR LEDs 2
IR Range Up to 50m
Wavelength 850nm
White LEDs 3

Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate 8K~48Kbps

Image:
Max. Resolution 1920×1080 (2-Megapixel)
Main Stream:
PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480)
NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480)
Secondary Stream:
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream: 4CIF
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 7 fixed region of coding
OSD: 16×16, 24×24,32×32, 48×48, 64x64, adaptable size, Letters Such as Week, Date, Time, Total 5
Regions
Picture Overlay Yes
Privacy Mask Yes
Smart Defog Yes

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, On Duty Detection, Video Abnormal, Audio Abnormal
Early Warning (EW) Yes
Face Detection and Analytics
Operating Mode Face recognition, face capture, intelligent monitoring optional, default face recognition
Face Detection Performance Detects up to 32 faces at the same scene
Face Exposure Brightness Default 35, 1-100 brightness optional
Min. Face Pixel Default 80, 19-1920 optional
Face Recognition Yes
Face Library 32
Face Pictures 5000
Face Library Management Retrieve, import, export
Face Recognition Alert Comparison Alarm, stranger alarm
Precautionary Alert Three Level

Network
ANR Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP,
IGMP, QoS, PPPoE
System Compatibility ONVIF (PROFILE S), SDK, CGI, P2P
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web6

Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio 1/1, Mic in
Alarm 2/1
Reset Button Yes
On-board storage Built-in MicroSD card slot, up to 128 GB

Firmware Version NVSS_V20.0.1.20190313_SP1
Web Client Language English, Simple Chinese
Operating Conditions -35℃～65℃, 0～95% RH
Power Supply DC12V±20%/PoE
Power Consumption MAX: 9W(12V) MAX: 10W(POE)
Protection IP67 weatherproof
Dimensions 330×114×107mm (12.99*4.49*4.21 inch)
Weight 1.5kg (3.31lb)
