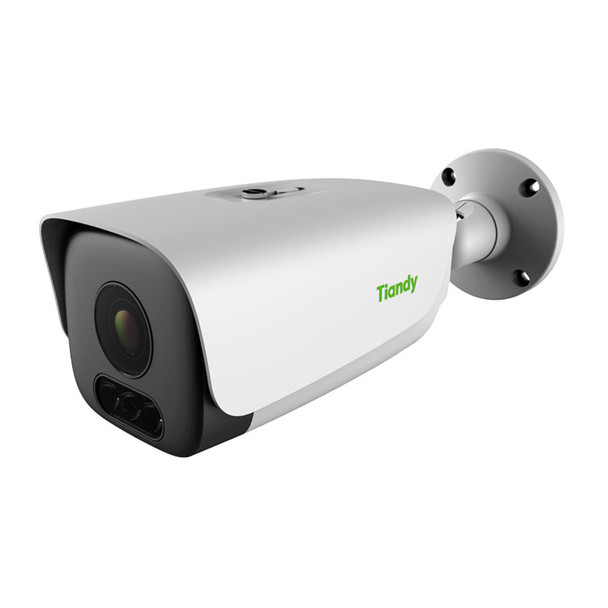

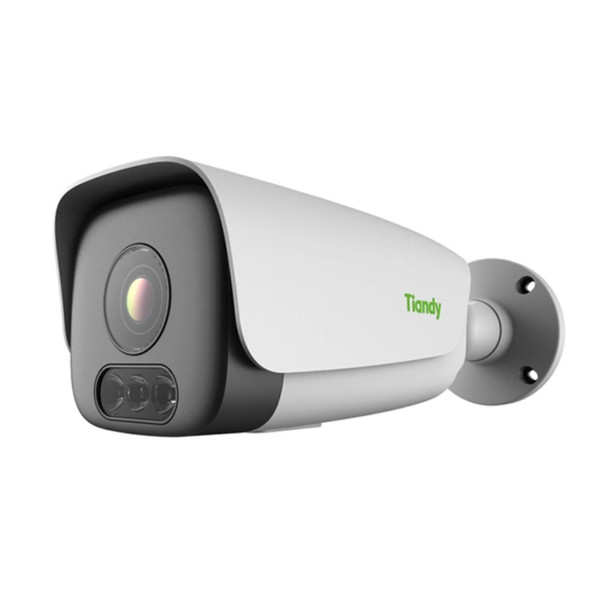

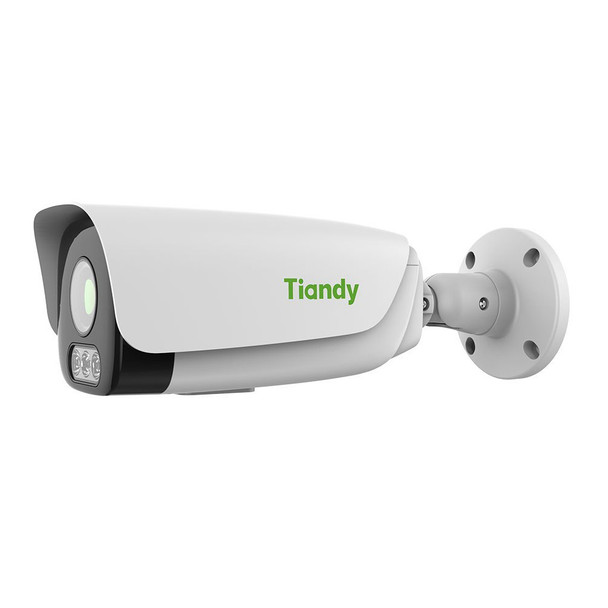

Tiandy TC-C34LP Spec: I8/A/E/Y/M/H/2.7-13.5mm/V4.0 4MP AI EW Super Starlight IR Bullet IP Camera

Tiandy TC-C34LP Spec I8/A/E/Y/M/H/2.7-13.5mm/V4.0 4MP AI Super Starlight IR Bullet IP Camera enable top tier performance, next-gen intelligence and superior quality at a great cost. The device is built upon the large format Sony Starvis 1/1.8" 4-Megapixel Image sensor which along with Tiandy advanced image processing yields incredibly low light performance including ultra-low lux Color video that tops the market. The device is equipped with all sorts of desirable perks including a motorized lens to more unique attributes like its built-in microphone and speaker. Added IR Night Vision with exceptional range guarantees wide area coverage even in zero light environments while other added functions allow more than simply re-active security. The inclusion of powerful Video Analytics including A.I. Human/Vehicle classifications and Tiandy's EW or Early Warning function enables automated active deterrence which can trigger built-in White Light LED, Speaker and/or external devices for truly active protection.

Tiandy TC-C34LP Spec I8-A-E-Y-M-H-2.7-13.5mm-V4.0 4MP AI Super Starlight IR Bullet IP Security Camera is a superb choice be it for stand-alone security, integration with larger security camera systems or even all sorts of 3rd party pro video systems. The device is built to the highest quality standards and ensure optimal reliability thanks to Tiandy fully automated production process. The bullet network camera is packed with rich abilities including vast IT protocol support while it’s just as equally built to handle a wide range of indoor or outdoor demands thanks to its robust weatherproof construction. If you’re looking for top tier performance, the details of this Tiandy Bullet Camera cause it to clearly stand apart from others in the market.

Tiandy TC-C34LP Spec I8AEYMH2.713.5mmV4.0 Main Features:

• Super Starlight 1/1.8" 4-Megapixel
• Up to 2560x1440@30fps, 1920x1080@60fps
• S+265/H.265/H.264/M-JPEG
• Motorized Lens 2.7-13.5mm
• Min. illumination Color: 0.0004Lux@F1.2
• IR Night Vision: Up to 80m
• White Light LED 1
• Support A.I. Video Analytics
• Support Human/Vehicle Classification
• Support Face Capture Mode
• Support Early Warning (Active Deterrence)
• Built-in Mic & Speaker
• Audio I/O 1/1, Alarm I/O 2/1
• Plugin Free Web Browser Interface
• Operating Conditions -35°~65°C, 0~95% RH
• IP67 Weatherproof Full Metal Housing
• NDAA

Tiandy TC-C34LP Spec I8AEYMH2.713.5mmV4.0 Specifications:

Camera
Image Sensor 1/1.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.0004Lux@ (F1.2, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, rotate 0~360°

Lens
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount 14
Aperture F1.2~F2.7, DC
FOV Horizontal field of view: 114°~49°
Illuminator
IR LEDs 4
IR Range Up to 80m
Wavelength 850nm
White/Warm light LEDs 1 White LED

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate 8K~48Kbps

Max. Resolution 2560x1440 (4-Megapixel / 2K)
Main Stream:
PAL: 25fps (2560×1440, 2304×1296), 50fps (1920×1080, 1280×720)
NTSC: 30fps (2560×1440, 2304×1296), 60fps (1920×1080, 1280×720)
Sub Stream:
PAL: 25fps (704×576, 704×288, 640×480, 352×288)
NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
Third Stream:
PAL: 25fps (704×576, 704×288, 352×288)
NTSC: 30fps (704×480, 704×240, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD 16 16, 24 24, 32 32, 48 48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time,
Total 8 Regions
Picture Overlay Yes
Privacy Mask Yes, 8 regions
Smart Defog Yes

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address
Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap,
Face Capture (Face Detection), Safety Helmet Detection, Human/Vehicle Classification
Early Warning (EW) Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP, NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
Remote Connection 7
Client Easy7, EasyLive
Web Version Web6
Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port, RS 485
Audio 1/1, Mic in
Alarm 2/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General
Web Client
Language (15 languages): English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -35° ～ 65°C, 0～95% RH
Power Supply DC12V±25% / PoE
Power Consumption MAX: 10W (12V) MAX: 11W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Dimensions: 330×114×107mm (12.99 × 4.49 × 4.21inch)
Weight 1.5Kg (3.31lb)
