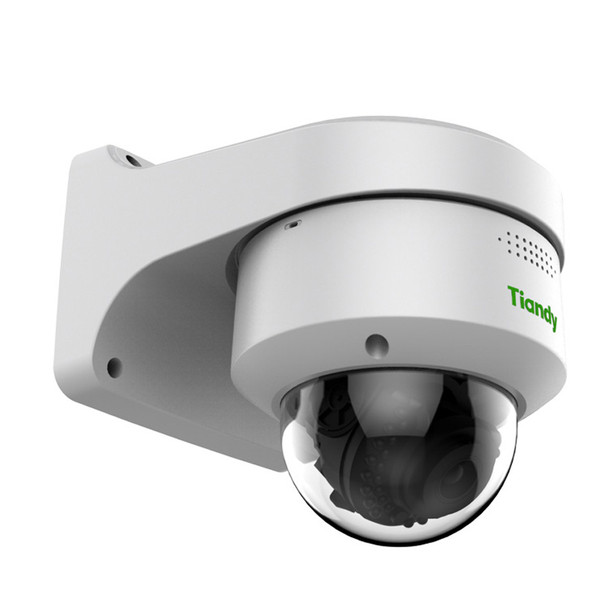

Tiandy TC-C34MP Spec I5/A/E/Y/M/H/2.7-13.5mm 4MP AI Super Starlight Dual Light Vandal Dome IP Camera

Tiandy TC-C34MP Spec I5/A/E/Y/M/H/2.7-13.5mm 4MP AI Super Starlight IR Vandal Dome IP Camera is a superior choice for the cutting-edge in video surveillance. Constructed with a Sony Starvis ultra-low light 4-megapixel image sensor, the device along with added image enhancements provides Tiandy's Super Starlight performance allowing ultra-low lux color video even without considering its built-in dual illumination capabilities. Added IR Night Vision provides exceptional area coverage as does its motorized lens while added unique benefits like its built-in White Light LED array only add to this vandal dome cameras impressive abilities. The benefits of cutting-edge video and audio compression combine with other perks like a built-in microphone and built-in speaker helping both installers and operators realize capabilities not commonly included on such pro-grade units.

Tiandy TC-C34MP Spec I5-A-E-Y-M-H-2.7-13.5mm 4MP AI Super Starlight IR Vandalproof Dome IP Security Camera is packed with far more than simply top of the market video or audio abilities. The Vandal Dome features a wide suite of Video Analytics, including A.I. empowered detections to Tiandy's EW or Early Warning functions (active deterrence) which enable automated device response with built-in white light, speaker and/or external devices for sophisticated, yet automatic protection advantages. Built in a solid, weatherproof, wide temperature, vandal-proof design this security camera was built to withstand challenging conditions including some of the harshest outdoor environments. From optional accessories to even more on-board abilities, users will find rich third-party system integration via countless pro IT protocols to attributes like large edge storage for even stand-alone deployments.

Tiandy TC-C34MP Spec I5AEYMH2.713.5mm Main Features:

• Super Starlight 1/1.8" 4-Megapixel
• Up to 2560x1440@30fps, 1920x1080@60fps
• S+265/H.265/H.264/M-JPEG
• Motorized Lens 2.7-13.5mm
• Min. illumination Color: 0.0008Lux@F1.85
• IR Night Vision: Up to 50m
• White Light LED 4
• Support A.I. Video Analytics
• Support Human/Vehicle Classification
• Support Face Capture Mode
• Support Early Warning (Active Deterrence)
• Built-in Mic & Speaker
• Audio I/O 1/1, Alarm I/O 2/1
• Plugin Free Web Browser Interface
• Operating Conditions -35°~65°C, 0~95% RH
• IP67 Weatherproof & IK10 High Impact Vandal-resistant
• Full Metal Case - Polycarbonate Dome
• NDAA

Tiandy TC-C34MP Spec I5AEYMH2.713.5mm Specifications:

Camera
Image Sensor 1/1.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.0008Lux@ (F1.85, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 140dB
Angle Adjustment pan 0~330°, tilt 0~75°, rotate 0~350°

Lens
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount 14
Aperture F1.85~F3.3, DC
FOV Horizontal field of view: 112°~47.5°

Illuminator
IR LEDs 14
IR Range Up to 50m
Wavelength 850nm
White/Warm light LEDs 4 White LEDs

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate 8K~48Kbps

Max. Resolution 2560x1440 (2K or 4-Megapixel)
Main Stream:
PAL: 25fps (2560×1440, 2304×1296), 50fps (1920×1080, 1280×720)
NTSC: 30fps (2560×1440, 2304×1296), 60fps (1920×1080, 1280×720)
Sub Stream
PAL: 25fps (704×576, 704×288, 352×288)
NTSC: 30fps (704×480, 704×240, 352×240)
Third Stream
PAL: 25fps (704×576, 704×288, 640×480, 352×288)
NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD 16 16, 24 24, 32 32, 48 48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time,
Total 8 Regions
Picture Overlay Yes
Privacy Mask Yes, 8 regions
Smart Defog Yes

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address
Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap,
Face Capture (Face Detection), Safety Helmet Detection, Human/Vehicle Classification
Early Warning (EW) Yes

Network
ANR: Yes, auto store video in SD card when NVR disconnected, and upload video to NVR
when resumed connection (Only Support Tiandy ANR NVR)
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, SNTP, RTMP, SFTP,
NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
Remote Connection 7
Client Easy7, EasyLive
Web Version Web6

Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port, RS 485
Audio 1/1, Mic in
Alarm 2/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General
Web Client Language (15 languages): English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese
Operating Conditions -35°～65°C, 0～95% RH
Power Supply DC12V±25%/PoE
Power Consumption MAX: 8.5W (12V) MAX: 9.5W (PoE)
Protection IP67, IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions Φ143×124mm (Φ5.63×4.88inch)
Weight 0.95Kg (2.09lb)
