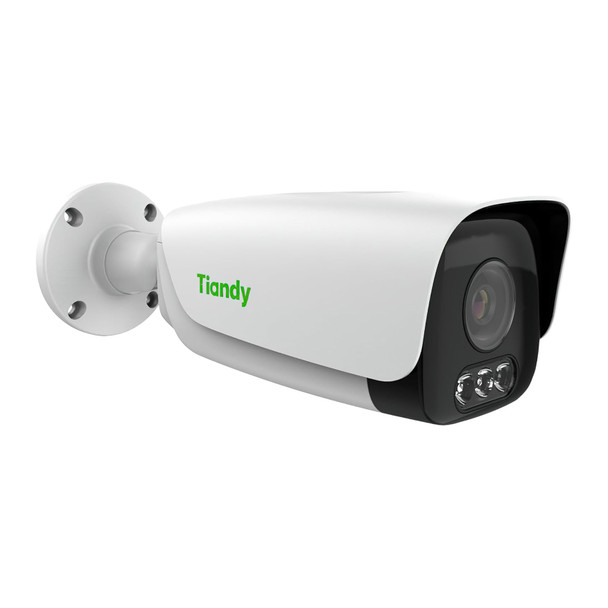

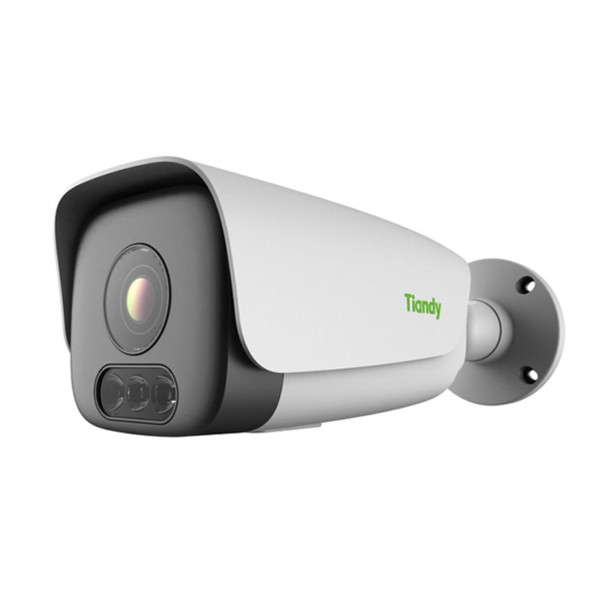

Tiandy TC-C35LP Spec I8W/A/E/Y/M/H/2.7-13.5mm/V4.0 5MP AI EW Super Starlight Dual Light IP Bullet Security Camera

Tiandy TC-C35LP Spec I8W/A/E/Y/M/H/2.7-13.5mm/V4.0 5MP AI EW Super Starlight Dual Light IP Bullet Security Camera is a premium option for the next era in smart network surveillance solutions. Its superior low light performance (aka Super Starlight) is coupled with wide screen format 5-megapixel video at up to real-time frame rates for superb color video even in extreme low light conditions. Mean-while added IR Night Vision with powerful range as well as built-in White Warm Light LEDs presents a new breed of security cameras boasting Dual Illumination capabilities. Further equipped of course with cutting edge compression methods for both Video as well as Audio, the device enables multi-streaming to diverse IT protocols ensuring industry wide support including 3rd party video system integration that is not solely limited to security or surveillance applications.

Tiandy TC-C35LP Spec I8W-A-E-Y-M-H-2.7-13.5mm-V4.0 5MP AI EW Super Starlight Dual Light IP Bullet Security Camera is outfitted with numerous desirable traits such as its motorized 5x optical lens and even includes a built-in Mic and Speaker to allow wide adaptation to all sorts of demands. The Bullet Camera not only provides market leading video and audio performance with ease but it also incorporates cutting edge technologies for a true level up on any professional security system. As example, its built-in Video Analytic suite features functions such as A.I. powered Human/Vehicle classification, People Counting, Double Tripwire to other Special purpose detections enabling sophisticated functions that are easy to setup and benefit from. Tiandy's EW or Early Warning which is an active deterrence function is also on-board allowing the unit to provide automated response with built-in Lighting, Speaker and/or via external devices in order to proactively protect against intruders. Many other perks from a vandal IK10 high impact and weatherproof IP67 build to large edge storage or flexible power input, this Tiandy Pro series Super Starlight IP Bullet Camera demonstrates the next level in intelligent, high performing video security.

Tiandy TC-C35LP Spec I8WAEYMH2.713.5mmV4.0 Main Features:

• Motorized Lens 2.7-13.5mm
• Up to 3072x1728@30fps, 1920x1080@60fps
• S+265/H.265/H.264/M-JPEG
• Min. illumination Color: 0.0004Lux@F1.2
• Built-in Smart IR Night Vision - Range: up to 80m
• Built-in White Light LED Array
• Support Video Analytics
• Support A.I. Human/Vehicle Classification
• Support Face Capture Mode
• Support Early Warning
• Built-in Mic & Speaker
• Audio I/O 1/1, alarm I/O 2/1 for External Devices
• Plugin Free Web Interface
• Operating Conditions -35° ~ 65°C, 0~95% RH
• POE or 12VDC input
• Full Metal IP67 Weatherproof Housing
• NDAA Compliant

Tiandy TC-C35LP Spec I8WAEYMH2.713.5mmV4.0 Specifications:

Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001Lux@ (F1.2, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, rotate 0~360°

Lens
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount Φ14
Aperture F1.2~F2.2, Motorized
FOV Horizontal field of view: 94.9°~37°

Illuminator:
IR LEDs 4
IR Range Up to 80m
Wavelength 850nm
White/Warm light LEDs 3 White LED

Compression Standards
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate 8K~48Kbps

Max. Resolution 3072×1728 (5 Megapixel)
Main Stream
PAL: 25fps (3072×1728, 2560×1440, 2304×1296) 50fps (1920×1080, 1280×720)
NTSC: 30fps (3072×1728, 2560×1440, 2304×1296) 60fps (1920×1080, 1280×720）
Sub Stream
PAL: 25fps (704×576, 640×360, 704×288, 352×288)
NTSC: 30fps (704×480, 640×360, 704×240, 352×240)
Third Stream
PAL: 25fps (1920×1080, 1280×720, 704×576, 704×288, 352×288)
NTSC: 30fps (1920×1080, 1280×720, 704×480, 704×240, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 7 fixed region of coding
OSD: 16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total
5 Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature:
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, Video Abnormal, Audio Abnormal, Heatmap
Early Warning (EW) Yes

Network
ANR: Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when
resumed connection (Only Support Tiandy ANR NVR)
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP,
NFS
System Compatibility ONVIF (PROFILE S/T/G/M), SDK, CGI, P2P
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web6
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port
Audio 1/1, Mic in
Alarm 2/1
Reset Button Yes
On-board storage Built-in MicroSD card slot, up to 512 GB

Web Client Language
(17 languages): English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Ukrainian, German, Vietnamese
Operating Conditions -35℃～65℃, 0～95% RH
Power Supply DC12V±20%/PoE
Power Consumption MAX: 8.5W (12V) MAX: 10W (POE)
Protection IP67 Weatherproof, IK10 High Impact, Lighting/Surge/Voltage Transient Protection Meets EN55035:2017
Heater N/A
Dimensions 333×114.2×106.6mm (13.11×4.50×4.20 inch)
Weight 1.48Kg (3.26lb)
