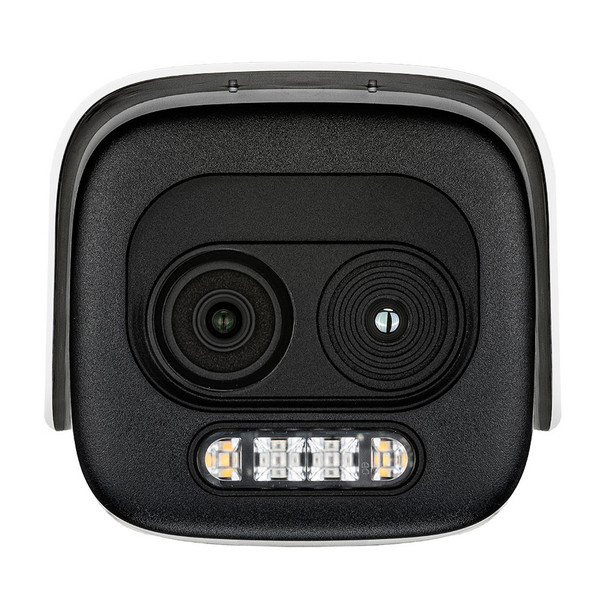

Tiandy TC-C35LQ Spec I5W/E/Y/T/4mm/V4.2 AI EW Thermal IR & 4MP Visible Bullet IP Camera

Tiandy TC-C35LQ Spec I5W/E/Y/T/4mm/V4.2 AI Thermal IR & Visible Multi-LED Bullet IP Camera is an innovative solution for high security and other specialized professional demands. Featuring the combination of both a Thermal Infrared Sensor as well as a Visible 4MP QHD Sensor in a single device, the unit provides dual spectrum video of scenes with a wide set of exceptional capabilities. Boasting the benefits of Thermal Imaging, this specialized unit can provide enhanced security and/or be used for Thermography which is simply the use of thermal video or images to study or inspect objects for heat variations, usually as a means of inspection. In fact, this Tiandy Dual Sensor Thermal IR + Visible Bullet IP Security Camera offers not just this, but plenty more.

Overall, the device incorporates cutting edge technology and standards granting installers as well as users a richly developed device that is plenty capable of operating all on its own. The latest compression methods, diverse IT protocols from ONVIF to RTMP and superb on-board video analytics with A.I. Artificial Intelligence empower the Tiandy TC-C35LQ Spec I5W-E-Y-T-4mm-V4.2 AI Thermal IR & Visible Bullet IP Security Camera to perform powerful functions. One notable function is its Temperature Measurement abilities and precision, the device can accurately trigger alarms based on temperature limits and with special analysis like smoke detection the unit can act as an excellent solution in fire detection and fire prevention demands. The device has plenty more to appreciate, for instance a built-in Microphone & Speaker as well as a built-in White Light LED array can be coupled with Tiandy's EW or Early Warning function to achieve effective active deterrence even all on its own.

Tiandy TC-C35LQ Spec-I5WEYT4mmV4.2 Main Features:

• Thermal IR 256 × 192 resolution, 12 μm, Vox Uncooled Sensor
• Temperature exception alarm for fire prevention
• Thermography with Temp Measurement: -15° to 550°C Max. (Precision ± 2°C, ± 2%)
• Max Visible resolution 2880×1620 - 4 Megapixel
• S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Smart IR, IR Range:50m
• White Light LED Array (For Warning)
• Built-In Mic, Built-In Speaker
• Support tripwire and perimeter
• Support Smart surveillance
• Support A.I. Human/Vehicle Classification
• Support EW or Early Warning (Active Deterrence)
• Operating Conditions -35°~65°C,0~95% RH
• Micro SD Edge Storage 512GB
• DC12V or POE
• IP67 Weatherproof
• NDAA

Tiandy TC-C35LQ Spec-I5WEYT4mmV4.2 SPECIFICATIONS:

Thermal
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 × 192
Pixel Pitch 12 μm
Spectral Range 8μm to 14 μm
Focal Length 3.2mm
NETD ≤ 45 mK (@ 25°C, F# = 1.0)
Aperture F1.1
Field of View Horizontal FOV:56°, Vertical FOV:42°

Camera

Image Sensor 1/2.7" CMOS
Min. Illumination Color:0.002Lux@ (F1.6, AGC ON), B/W:0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
WDR: True WDR

Lens
Lens Type Fixed focal lenses
Focal Length Thermal imaging:3mm; Visible light:4mm
Lens Mount M12
Aperture Range Thermal: F1.1; Optical: F1.6; fixed focal lens
Field of View Thermal:56°；Optical:88.7°(H); Thermal:42°；Optical:46.8°(V); Thermal :70°；Visible light:
100.3°(D)

DORI Distance
Detect:80m
Observe:31.5m
Recognize:16m
Identify:8m

Illuminator
Night vision Up to 50m
IR LEDs 2
Wavelength 850nm
White Light LED: 2 - 15m - used for warning

Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32k~16M
Audio Compression: G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate: 8kHz/32kHz/48kHz

Max. Resolution: 2880x1620 (5-Megapixel / 3K)
Main Stream
Thermal:30/25fps (1280 × 720、704 × 576、640 × 480、352x288)
Optical: NTSC/PAL:30/25fps(2880x1620,2688x1520,2560x1440,2304x1296)

Sub Stream
Thermal:30/25fps(352x288)
Optical: 30/25fps (704 × 576)
BLC Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
HLC BLC/3D DNR/HLC
AGC Yes
3D DNR Yes
White Balance
ROI: Yes
Privacy Mask Yes - 4 regions
Defog Electronic
Picture Overlay Yes

Thermal Function:
Thermal Analytics: Tripwire, Perimeter, Double Tripwire, Human & Vehicle Classification, High temperature display, Smoking detection
Temperature Range: -15.0°~150.0°C、50.0°~550.0°C、Auto
Temperature Range: Max. (± 2°C, ± 2%)
Temperature Measurement: 3 temperature measurement rule types, (points, areas, line free combination, Max 12 species)

Feature
Alarm Trigger Motion Detection; Mask Alarm; Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception; Event Input, Event Output
Linkage Method: send email; trigger sound; trigger warm light; trigger recording; trigger capture; notify
surveillance center
Video Analytics: Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Video Abnormal; Audio Abnormal
Rules of behavior analyze in 1 scene: 8

Early Warning (EW) Yes
Linkage Method: trigger recording; trigger capture; send email; trigger sound; trigger warm light; notify surveillance center
Yes

ANR Yes
Protocols: HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP;
SMTP; SSL; 802.1X; QoS; IPv4; IPv6; PPPOE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; RTSP;
FTP; SFTP; NAS
System Compatibility ONVIF Profile S/T/G/M; CGI; Milestone; RTMP
Remote Connection ≤7
Client: Easy7
Mobile Client: EasyLive Plus
Web Version: IE/Firefox/Edge/Safari/Chrome

Interface
Communication Interface: 1 RJ45 10M/ 100M self-adaptive Ethernet port
Audio I/O: 1/1
Alarm I/O: 2/1
Built-In Mic Yes
Built-In Speaker Yes
Reset Button Yes
On-board storage: Yes - up to 512GB Micro SD
Additional interfaces: RS-485

General
Web Client Language (19 languages): English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, German, Ukrainian, Portuguese, Albanian
Operating Conditions -35℃～65℃,0～95% RH (Light off for 65°C)
Storage Conditions -35℃～65℃,0～95% RH
Power Supply: DC12V±25%; PoE (802.3af))
Power Supply DC12V±25%, MAX 7W; POE 802.3af, MAX 8W
Protection Surge4000V; ESD6000V; IP67
Protection: IP67 Weatherproof
Product Dimensions 327(L)114(W)105(H)mm
Package Dimensions: 355(L)145(W)160(H)mm
Gross Weight 1.8kg
Net Weight 1.5kg
