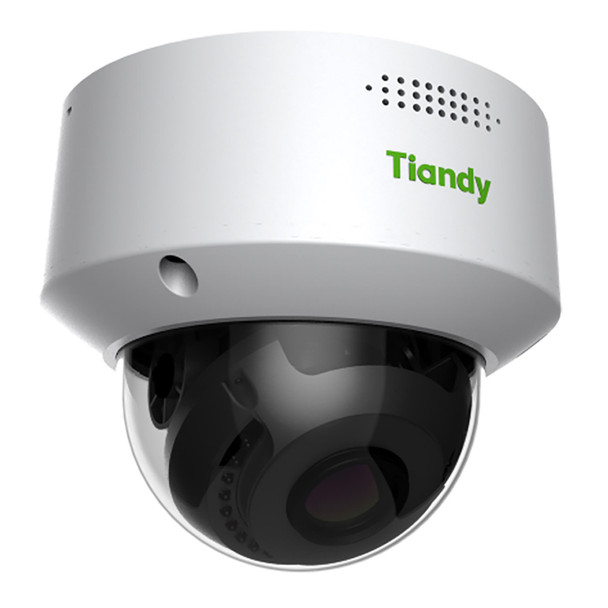

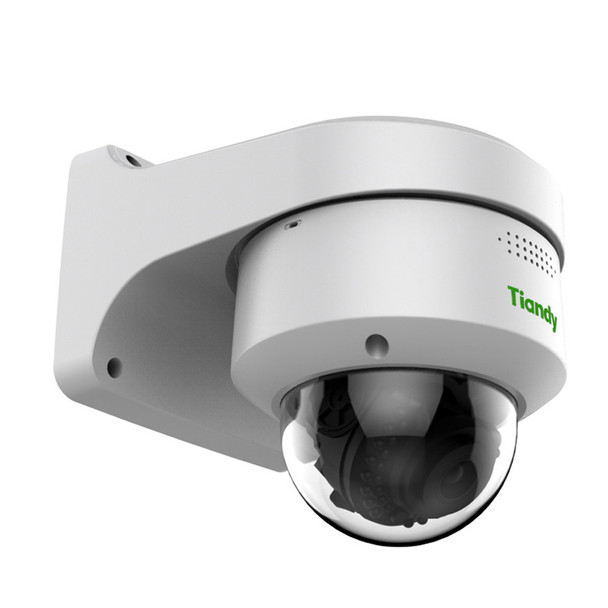

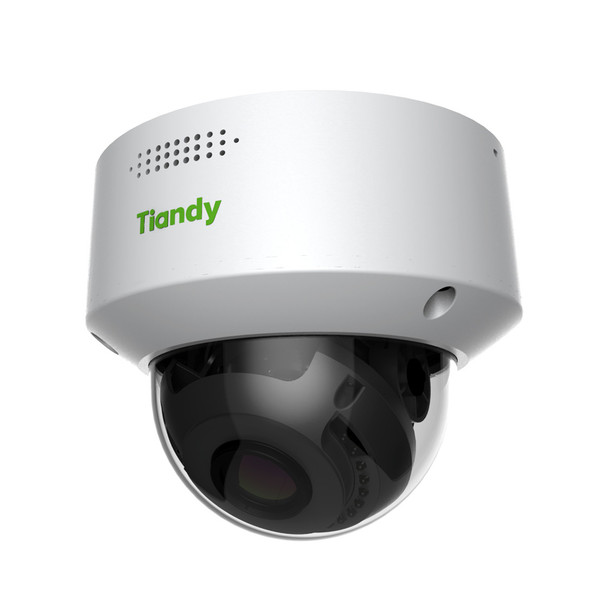

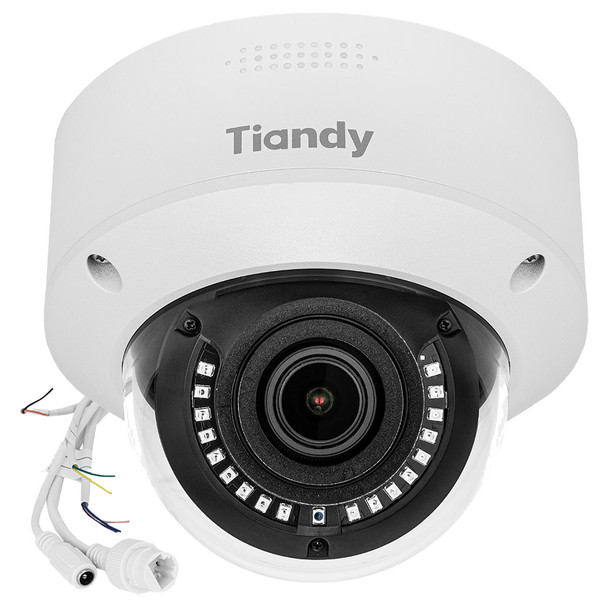

Tiandy TC-C35MS Spec I5/A/E/Y/M/H/2.7-13.5mm/V4.0 5MP AI IP Vandal IR Dome Security Camera

Tiandy TC-C35MS Spec I5/A/E/Y/M/H/2.7-13.5mm/V4.0 5MP AI IP Vandal IR Dome Security Camera is a rugged, smart solution for the new-gen in professional network surveillance and video. The Units 5-Megapixel Sensor achieves real-time video and presents excellent low light abilities that are backed up with absolute IR Night Vision. Efficient video compression to high quality audio codecs is all on-board, while added image enhancements are as configurable as is are the camera's video streams. In fact, the plug-in free web browser interface satisfies modern demands while its equally rich full operational capabilities mean this device does much more than simply capture video. With added benefits like A.I. powered video analytics and purpose-built video content analysis functions, these Tiandy Pro series dome cameras allow both stand-alone operation or large system integration with significant upgrades to past detection abilities.

Tiandy TC-C35MS Spec I5-A-E-Y-M-H-2.7-13.5mm-V4.0 5MP AI IP Vandal IR Dome Camera is constructed to rugged IK10 high impact ratings and includes a superior IP67 weatherproof rating along with wide temperature operating range for reliable deployment in harsh environments. Beyond the advanced video detections, the units also offer vast IT network protocol support ensuring easy integration with all sorts of 3rd party video systems. Likewise flexible external I/O connectivity is included for custom alarm and audio external devices while large capacity edge storage adds yet another potential manner of use. All around, this NDAA compliant IP Vandal Dome IP Camera is ready to serve a variety of pro-video demands.

Tiandy TC-C35MS Spec I5AEYMH2.713.5mmV4.0 Main Features:

• 5-Megapixel / 3K
• Up to 2880x1620@30fps, 1920x1080@60fps
• S+265/H.265/H.264/M-JPEG
• Motorized Lens 2.7-13.5mm
• Min. illumination Color: 0.001Lux@F1.6
• Smart IR, IR Range: 50m
• Support Video Analytics
• Support A.I. Human/Vehicle Classification
• Support Face Capture Mode
• Built-in Mic, audio I/O 1/1, alarm I/O 2/1
• Plugin Free Web Browser Interface
• Operating Conditions -35°~65°, 0~95% RH
• POE or 12VDC Power Input
• IP67 Weatherproof, IK10 High Impact Vandal Resistant
• Full Metal Case - Polycarbonate Dome
• NDAA Compliant

SPECIFICATIONS

Camera
Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~330°, tilt 0~75°, rotate 0~350°

Lens
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount 14
Aperture F1.6
FOV pan 0~330°, tilt 0~75°, rotate 0~350°

Illuminator
IR LEDs 18
IR Range Up to 50m
Wavelength 850nm
White/Warm light LEDs N/A

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps

Max. Resolution 2592x1944
Main Stream
PAL:25fps(2880x1620,2688x1520,2560x1440,2304x1296)50fps(1920x1080,1280x720)
NTSC:30fps(2880x1620,2688x1520,2560x1440,2304x1296)60fps(1920x1080,1280x720)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream
PAL: 25fps (1920×1080, 1280×720, 704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (1920×1080, 1280×720, 704×480, 704×240, 640×360, 352×240)
16x16,32x32,48x48,64x64, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Video Abnormal, Audio Abnormal
Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed,
People Counting, On Duty Detection, Heatmap, Face Capture, Safety Helmet Detection, Human/
Vehicle Classification
Early Warning (EW) N/A

Network
ANR Yes (Only Support Tiandy ANR NVR)
Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, QoS, Telnet, RTMP; SFTP; Multicast; NFS
System Compatibility ONVIF (PROFILE S/T/G/M), SDK, Milestone, CGI, P2P
Remote Connection 2
Client Easy7, EasyLive
Web Version Web6
Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port, RS 485
Audio 1/1, Mic in
Alarm 2/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General
Web Client Language
17 languages
Simplified Chinese/English/Traditional Chinese/Spanish/Italian/Korean/Turkish/Russian/
Thai/ Polish/French/Dutch/Hebrew/Persian/Vietnamese/Arabic/German/Ukrainian
Operating Conditions -35°～65°, 0～95% RH
Power Supply DC12V±25%/PoE
Power Consumption MAX: 7.5W (12V) MAX: 9W (PoE)
Protection IP67, IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions Φ143×124mm (Φ5.63×4.88inch
Weight 0.88Kg(1.94lb)
