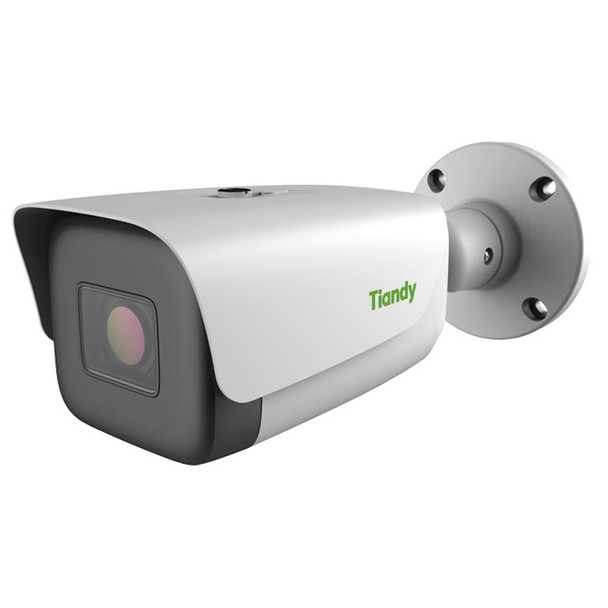

Tiandy TC-C35TP Spec I8/A/E/Y/M/H/2.7-13.5mm/V4.0 5MP A.I. Super Starlight IR Bullet IP Security Camera

Tiandy TC-C35TP Spec I8/A/E/Y/M/H/2.7-13.5mm/V4.0 5MP A.I. Super Starlight IR Bullet IP Security Camera unveils industry leading performance with added Artificial Intelligence leading to high quality evidence and higher efficiency pro surveillance. Boasting market leading super starlight (ultra-low lux) Color Video, the device is built to deliver absolute image clarity and features a high-powered IR Night Vision array to ensure it. Outfitted with a motorized 5x optical lens the device can offer wide area coverage or a more semi-telephoto field of view to fine tune area coverage. Multi-Streaming including high quality video and audio compressions are all on-board while likewise numerous IT protocol standards are all supported ensuring diverse 3rd party video-system integration including security or otherwise.

Tiandy TC-C35TP Spec I8-A-E-Y-M-H-2.7-13.5mm-V4.0 5MP A.I. Super Starlight IR Bullet IP Security Camera is built with a robust outdoor weatherproof IP67 rated all metal casing and includes a cable feed-through bracket with optional mounting accessories to accommodate all sorts of pro-install requirements. From large edge storage via Micro SD to Video Analytics including A.I. powered video analysis functions the device is well suited for even stand-alone video security needs. Flexible external device support, adaptable 12v or PoE single cable install, the Tiandy Pro series Super Starlight Bullet IP Cameras offer the best value for top performance and quality.

• Tiandy TC-C35TP Spec I8AEYMH2.713.5mmV4.0 Main Features:
• 5-Megapixel Super Starlight
• Up to 2592x1944@30fps, 1920x1080@60fps
• S+265/H.265/H.264/M-JPEG
• Min. illumination Color: 0.001Lux@F1.3
• Motorized Lens 2.7-13.5mm
• Smart IR, IR Range: 80m
• Support Video Analytics
• Support A.I. Human/Vehicle Classification
• Support Face Capture Mode
• Built-in Mic, Audio I/O 1/1, alarm I/O 2/1
• Plugin Free Web Interface
• Operating Conditions -35°~65°C, 0~95% RH
• Full Metal Weatherproof IP67 Housing
• POE or 12VDC
• NDAA Compliant

Tiandy TC-C35TP Spec I8AEYMH2.713.5mmV4.0 Specifications:

Camera
Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001Lux@ (F1.3, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, rotate 0~360°

Lens
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount 14
Aperture F1.3~F2.2, DC
FOV Horizontal field of view: 101.6° ~ 34.4°

Illuminator
IR LEDs 4
IR Range Up to 80m
Wavelength 850nm

Compression Standard
Video Compression: S+265/H.265/H.264/M-JPEG
Video Bit Rate: 32Kbps~16Mbps
Audio Compression: G.711A/G.711U/ADPCM/AAC
Audio Bit Rate: 8K~48Kbps

Max. Resolution 2592×1944 (5-Megapixel)
Main Stream
PAL: 25fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 50fps (1920×1080, 1280×720)
NTSC: 30fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream
PAL: 25fps (1920×1080, 1280×720, 704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (1920×1080, 1280×720, 704×480, 704×240, 640×360, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD:16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Voltage Abnormal
Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap,
Face Capture (Face Detection), Safety Helmet Detection, Human/Vehicle Classification

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP,
NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
Remote Connection 7
Client Easy7, EasyLive
Web Version Web6

Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port, RS 485
Audio 1/1, Mic in
Alarm 2/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General
Web Client Language - 15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,
Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -35°C ～ 65°C, 0～95% RH
Power Supply: DC12V±25% / PoE
Power Consumption MAX: 8.5W (12V) MAX: 10W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Dimensions: 264.3×95×83.2mm (10.41×3.74×3.28inch)
Weight 1.15kg (2.54lb)
