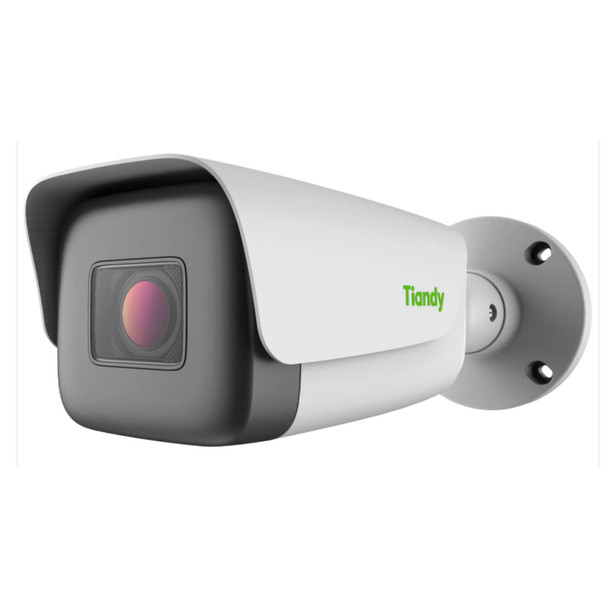

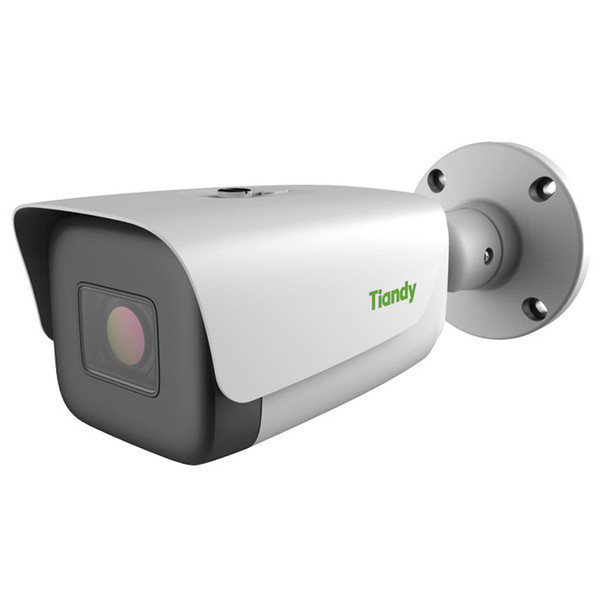

Tiandy TC-C35TS Spec I8/A/E/Y/M/H/2.7-13.5mm/V4.0 5MP AI IR Bullet IP Security Camera

Tiandy TC-C35TS Spec I8/A/E/Y/M/H/2.7-13.5mm/V4.0 5MP AI IR Bullet IP Security Camera is a full featured device with exceptional performance and smart functions at a great cost. From its 5-megapixel low lux image sensor to its motorized varifocal lens the unit is built to provide superb video along with adaptability. The advantages are many, including high quality video and audio compressions to vast IT network protocol support enables not only vast 3rd party system integration for security, but for other pro-video demands as well. The device couples all the modern core features for next era IP surveillance including high powered, Smart IR Night Vision to added built-in microphone to ensure comprehensive scene awareness. Layers of video analytics including A.I. powered human/vehicle classification to a weatherproof IP67 build, large on-board storage capacity or flexible external Alarm and Audio I/O connectivity, the Tiandy TC-C35TS Spec I8-A-E-Y-M-H-2.7-13.5mm-V4.0 5MP AI IR Bullet IP Camera provides a solid choice for all types of pro-video install demands.

Tiandy TC-C35TS Spec I8AEYMH2.713.5mmV4.0 Main Features:

• 5-Megapixel / 3K
• Up to 2880x1620@30fps, 1920x1080@60fps
• S+265/H.265/H.264/M-JPEG
• Motorized Lens 2.7-13.5mm
• Min. illumination Color: 0.001Lux@F1.6
• Smart IR, IR Range: 80m
• Support Video Analytics
• Support A.I. Human/Vehicle Classification
• Support Face Capture Mode
• Built-in Mic, audio I/O 1/1, alarm I/O 2/1
• Plugin Free Web Browser Interface
• Operating Conditions -35°~65°, 0~95% RH
• POE or 12VDC Power Input
• IP67 Weatherproof Full Metal Housing
• NDAA Compliant

Tiandy TC-C35TS Spec I8AEYMH2.713.5mmV4.0 Specifications:

Camera
Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, rotate 0~360°

Lens
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount 14
Aperture F1.6~F3.3, Fixed
FOV Horizontal field of view: 94.2° ~ 29.3°

Illuminator
IR LEDs 4
IR Range Up to 80m
Wavelength 850nm

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps

Max. Resolution 2592×1944 (5-Megapixel / ~3K)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD: 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes
Main Stream
PAL: 25fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 50fps (1920×1080, 1280×720)
NTSC: 30fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream
PAL: 25fps (1920×1080, 1280×720, 704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (1920×1080, 1280×720, 704×480, 704×240, 640×360, 352×240)

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Voltage Abnormal

Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap,
Face Capture (Face Detection), Safety Helmet Detection, Human/Vehicle Classification

Network
ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed
connection (Only Support Tiandy ANR NVR)
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, SNTP, RTMP, SFTP,
NFS

System Compatibility ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
Remote Connection 7
Client Easy7, EasyLive
Web Version Web6

Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port, RS 485
Audio: 1/1, Mic in
Alarm: 2/1
Reset Button: Yes
On-board storage Built-in Micro SD card slot, up to 512GB

General
Web Client Language
15 languages: English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese
Operating Conditions -35° ～ 65°C, 0～95% RH
Power Supply: DC12V±25% / PoE
Power Consumption MAX: 8.5W (12V) MAX: 10W (PoE)
Protection IP67 weatherproof rated
Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Dimensions 264.3 95 83.2mm (10.41 3.74 3.28inch)
Weight 1.15kg (2.54lb)
