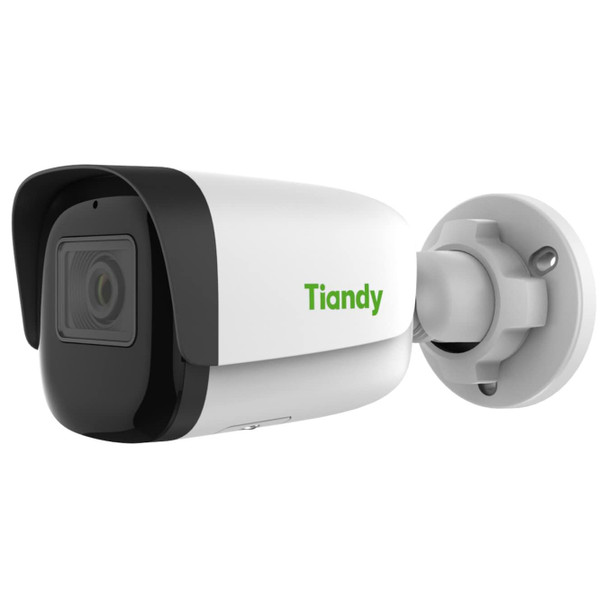

Tiandy TC-C35WS Spec I5/E/Y/M/H/4mm/V4.0 5MP AI Pro IR Bullet IP Security Camera

Tiandy TC-C35WS Spec: I5/E/Y/M/H/4mm/V4.0 5MP AI Pro IR Bullet Security Camera delivers best in class price for performance ratio with exceptional quality and added smart functionality. The device provides superb video at what is equal to 3K in a 4:3 aspect ratio format, its 5-megapixel super low light sensor is backed by powerful IR Night Vision and other added image enhancements for absolute clarity even in zero light scenes. The device yields cutting edge compression methods like H.265 to a built-in mic including pro-grade audio codecs like AAC all combine for superior efficiency and excellent quality video/audio surveillance. Supplied with a fixed 4mm wide angle lens an optional 2.8mm lens version allows instead super wide area coverage.

Tiandy TC-C35WS Spec: I5-E-Y-M-H-4mm-V4.0 5MP AI PRO IR Bullet IP Camera includes numerous advantages at an exceptional cost. Diverse security and other pro-video system demands can be achieved including especially with 3rd party systems thanks to on-board protocols like ONVIF, RTMP, RTSP and more. Further, its modern plug-in free, full function web browser interface can be coupled with abilities like large capacity edge-storage enabling a stand-alone solution. Rich video analytic attributes including A.I. powered human/vehicle classification to specialized detections or purpose-built functions like Heatmap all assure this Pro bullet security camera can do quite much all on its own. From Wide Temperature operation and strict weatherproof IP67 build in an all-metal housing to flexible 12V or PoE input as well as Alarm and Audio I/O, there is little this IP bullet camera can't do.

TC-C35WS Spec: I5EYMH4mmV4.0 Main Features:

• 5 Megapixel Starlight
• Up to 2592x1944@30fps, 1920x1080@60fps
• S+265/H.265/H.264/M-JPEG
• Min. illumination Color: 0.002Lux@F1.6
• Smart IR, IR Range: 50
• Support Video Analytics
• Support A.I. Human/Vehicle Classification
• Support Face Capture Mode
• Edge Storage with Micro SD slot
• Built-in Mic, audio I/O 1/1, alarm I/O 1/1
• Plugin Free Web Browser Interface
• Operating Conditions -40°~65°C, 0~95% RH
• Full Metal IP67 Weatherproof Housing
• 12V DC or PoE Power Input
• NDAA

AVAILABLE MODEL
TC-C35WS SPEC: I5/E/Y/M/H/2.8MM/V4.0 (Special Order)
TC-C35WS SPEC: I5/E/Y/M/H/4MM/V4.0

TC-C35WS Spec: I5EYMH4mmV4.0 Specifications:

Camera
Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, rotate 0~360°

Lens
Lens Type Fixed
Focus 2.8mm/4mm
Lens Mount M12
Aperture F1.6, Fixed
FOV Horizontal field of view: 95.6° (2.8mm)/77.9° (4mm)

Illuminator
IR LEDs 2
IR Range Up to 50m
Wavelength 850nm
White/Warm light LEDs N/A

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps

Max. Resolution 2592×1944
Main Stream
PAL: 25fps (2592×1944, 2592x1520, 2560×1440, 2304×1296), 50fps (1920×1080, 1280×720)
NTSC: 30fps (2592×1944, 2592x1520, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream
PAL: 25fps (1920×1080, 1280×720, 704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (1920×1080, 1280×720, 704×480, 704×240, 640×360, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD: 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address
Conflict, MAC Address Conflict, FTP Server Exception, Voltage Abnormal
Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap,
Face Capture (Face Detection), Safety Helmet Detection, Human/Vehicle Classification
Early Warning (EW) N/A

Network
ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed
connection (Only Support Tiandy ANR NVR)
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, SNTP, RTMP, SFTP,
NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
Remote Connection 7
Client Easy7, EasyLive
Web Version Web6

Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port
Audio 1/1, Mic in
Alarm 1/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General
Web Client Language (15 languages): English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -40°C～65°C, 0～95% RH
Power Supply DC12V±25%/PoE
Power Consumption MAX: 6W (12V) MAX: 7W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions: 160.8×68×74.5mm (6.33×2.68×2.93in)
Weight 0.50Kg (1.10lb)
