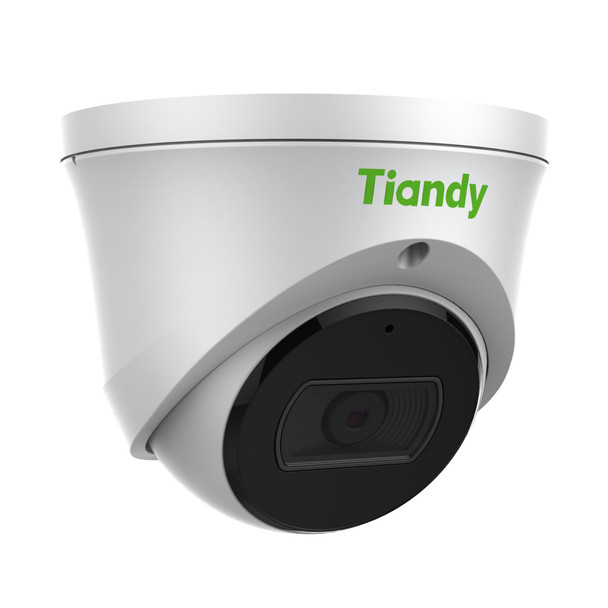

Tiandy TC-C35XS Spec I3/E/Y/M/H/2.8mm/V4.1 5MP AI Pro IR Turret IP Security Camera

Tiandy TC-C35XS Spec I3/E/Y/M/H/2.8mm/V4.1 5MP AI Pro IR Turret IP Security Camera grants superb performance, functions, quality and a compact design all at the best price. Yielding up to 5-megapixel or 3K video with excellent starlight (low light) performance and wide area coverage, this Eyeball camera promises strict unfailing protection even in zero lux with IR Night Vision. Equipped with a 2.8mm super wide angle lens this turret security camera also includes a built-in microphone for comprehensive area surveillance. Supplied with the latest in efficient video compressions, vast network IT protocols and rich menu settings the TC-C35XS Spec I3EYMH2.8mmV4.1 5MP AI Pro IR Turret IP Camera is built to satisfy a wide range of pro video surveillance or other pro-video system demands.

Tiandy TC-C35XS Spec I3EYMH2.8mmV4.1 5MP AI Pro IR Turret IP Cameras also provide many more modern advantages such as their plug-in free, full function web browser interface. if you pair that with large capacity edge storage and Artificial Intelligence powered Video Analytics, it is easy to realize the device is likewise able to provide smart protection all alone. From a compact design with robust weatherproof rating to flexible power input and Audio / Alarm I/O integration, the device offers best in class features at the best cost. NDAA Compliance also means this Turret Camera is ready to serve in all types of projects.

Tiandy TC-C35XS Spec I3-E-Y-M-H-2.8mm-V4.1 Main Features:

• Up to 5MP,2880×1620@30fps
• S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Fixed 2.8mm Super Wide Lens
• Color:0.002Lux@ (F1.6, AGC ON), B/W:0Lux with IR
• IR range up to 30m
• Built-in Mic
• Support microSD/microSDHC/microSDXC card, up to 512GB
• Support smart surveillance, face capture
• Support AI video analytics & human/vehicle classification
• Operating conditions -40°~65°C (-40°~149°F), ≤95%RH
• DC12V±25%, Max. 7W, PoE: IEEE 802.3af, Max. 8W
• IP67 Weatherproof
• NDAA Compliant

Tiandy TC-C35XS Spec I3-E-Y-M-H-2.8mm-V4.1 Specifications:

Camera
Image Sensor 1/2.7"CMOS
Min. Illumination Color:0.002Lux@ (F1.6, AGC ON), B/W:0Lux with IR
Shutter Time 1s-1/100000s
Day & Night IR-cut filter with auto switch (ICR)
WDR 120dB
S/N >39dB
Angle Adjustment 0-340°;0-75°;0-360°

Lens
Lens Type Fixed
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.6, Fixed
Field of View 109°(H); 59°(V); 125.4°(D)

DORI Distance
Detect:56m
Observe:22m
Recognize:11m
Identify:5.6m

Illuminator
IR LEDs 2
IR Distance 30m
Wavelength 850nm
White LEDs N/A
White light Distance N/A

Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32k-16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8kHz/32kHz/48kHz

Max. Resolution 2880x1620@30fps
Main Stream
PAL:25fps(2880x1620,2688x1520,2560x1440,2304x1296)
50fps(1920x1080,1280x720)
NTSC:30fps(2880x1620,2688x1520,2560x1440,2304x1296)
60fps(1920x1080,1280x720)
Sub Stream
PAL:25fps(704x576,704x288,352x288,640x360)
NTSC:30fps(704x480,704x240,352x240,640x360)
Third Stream
PAL:25fps(1920x1080,1280x720,704x576,640x360,704x288,352x288)
NTSC:30fps(1920x1080,1280x720,704x480,640x360,704x240,352x240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance
Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
ROI 8 rectangular static regions
Corridor mode Yes
OSD 5regions;2 lines; max 127 characters: 16*16/32*32/48*48/64*64/96*96
Picture Overlay 1 region 200x200 pixel BMP 24 color bit
Privacy Mask 4 regions
Defog Yes

Feature
General Alarm: Motion Detection; Mask Alarm; Alarm Input
Exceptions Alarm: Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception
Linkage Method: Send Email; Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output
Video Analytics: Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Lost; Heatmap; Loitering; Running; Parking; People Counting; Crowed; Safety Helmet Detection; On Duty Detection; Video Abnormal; Audio Abnormal
Rules of Behavior Analyses In 1 Scene: 8
Face Mode: Face Capture
Face Detection Performance: Detect up to 32 faces at the same scene; Capture up to 16 faces at the same scene

Network
ANR ANR
Protocols: HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; SSL; 802.1X; QoS; IPv4; IPv6; PPPOE; Unicast; Multicast; RTCP; ARP; RTP; SRTP; RTSP; FTP; SFTP; NAS
System Compatibility ONVIF Profile S/T/G/M; CGI; Milestone; RTMP
Remote Connection ≤7
Client Easy7 Smart Client
Mobile Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port
Audio I/O 1;1
Alarm I/O 1channel in,3mA,3.3VDC;1channel out,30mA,12VDC
Built-In Mic Yes
Built-In Speaker N/A
On-board storage Built-in Micro SD card slot, up to 512 GB
RTC YES

General
Web Client Language
19languages
Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/
Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/
Portuguese/Albanian
Operating Temperature -40°-65°C
Operating Humidity 0-95%(non-condensing)
Storage Temperature -40°-65°C
Storage Humidity 0-95%(non-condensing)
Power Supply DC12V±25%, MAX 7W; POE 802.3af, MAX 8W
Protection Surge protection 4000V; Lightning proof 6000V; IP67
Product Dimensions 117(L)117(W)96(H)mm
Package Dimensions 140(L)140(W)120(H)mm
Gross Weight 0.7kg
Net Weight 0.5kg
