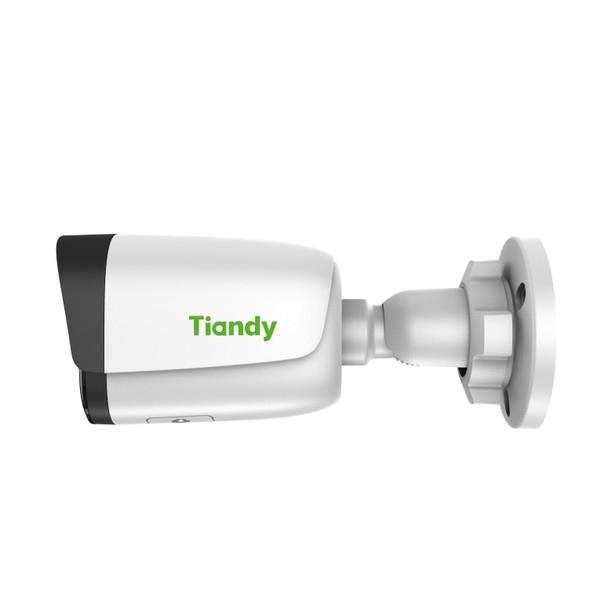

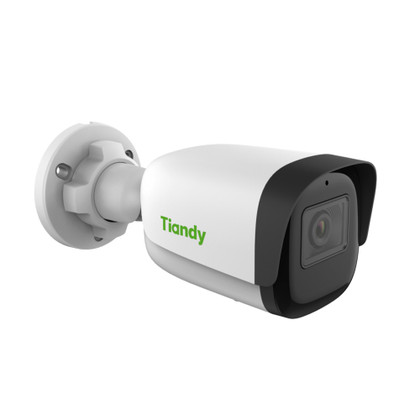

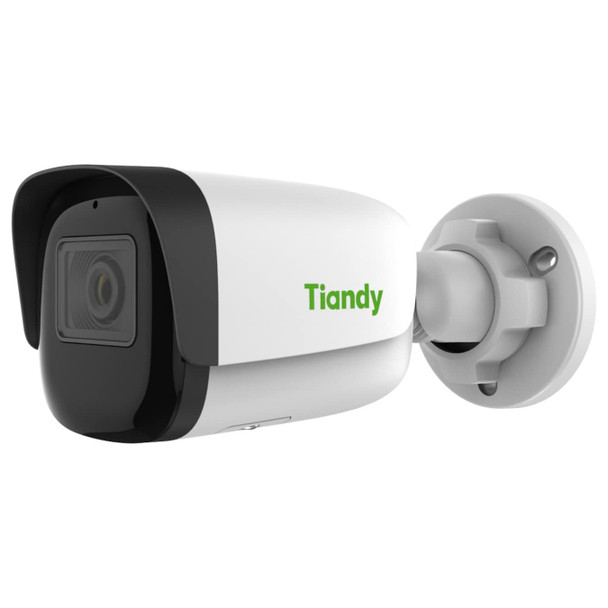

Tiandy TC-C36WS Spec I5/E/Y/M/S/H/2.8mm/V4.0 6MP AI Eco-Pro IP IR Bullet Security Camera

Tiandy TC-C36WS Spec I5/E/Y/M/S/H/2.8mm/V4.0 6MP AI Eco-Pro IR Bullet Security Camera delivers top tier performance, smart functions, quality build and the best pricing. Featuring new 6-Megapixel Image Sensor yielding a noticeable boost in detail and coverage area, the device incorporates modern attributes from starlight low light abilities to efficient video compression methods to ensure optimal image clarity. Added, high-powered IR Night Vision grants this compact bullet camera exceptional night vision range while its fixed 2.8mm lens achieves a super wide field of view. Perks like a built-in Microphone, large capacity Micro SD Card slot to full operation, plug-in free web browser interface are only a few of the advantages on-board. Another notable benefit is A.I. empowered video analytics offering advanced detection abilities capable of target classification and greatly improving detection accuracy. Tiandy TC-C36WS Spec I5-E-Y-M-S-H-2.8mm-V4.0 6MP AI Eco-Pro IR Bullet IP Security Camera is compact yet well-constructed in a full metal housing with weatherproof IP67 rating making it perfect for even harsh outdoor demands. Be it for stand-alone operation or part of a larger security camera system, the device offers potential not strictly limited to Tiandy systems. With a vast selection of pro IT network protocol standards, the units are built to support diverse integration with 3rd party video systems, security and otherwise.

Tiandy TC-C36WS Spec I5EYMSH2.8mmV4.0 Main Features:

• Up to 6MP, 3072X2048@30fps S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Color:0.002Lux@ (F1.6, AGC ON), B/W:0Lux with IR
• IR range up to 50m
• Built-in Mic
• Support microSD/microSDHC/microSDXC card, up to 512GB
• Support smart surveillance, face capture
• Support A.I. human/vehicle classification
• Operating conditions -40°~65°C(-40°~149°F), ≤95%RH
• DC12V±25%, Max. 7W, PoE: IEEE 802.3af, Max. 8W
• IP67 Weatherproof Full Metal Housing
• NDAA

TC-C36WS Spec I5/E/Y/M/S/H/2.8mm/V4.0 Specifications:

Camera
Image Sensor 1/2.7"CMOS 6-Megapixel
Min. Illumination Color:0.002Lux@ (F1.6, AGC ON), B/W:0Lux with IR
Shutter Time 1s-1/100000s
Day & Night IR-cut filter with auto switch (ICR)
WDR 120dB
S/N >39dB
Angle Adjustment 0-360°;0-75°;0-360°

Lens
Lens Type Fixed
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.6, Fixed
Field of View 104.2°(H);58.8°(V);119.6°(D)

DORI Distance
Detect:56m
Observe:22m
Recognize:11m
Identify:5.6m

Illuminator
IR LEDs 2
IR Distance 50m
Wavelength 850nm
White LEDs N/A
White light Distance N/A

Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32k-16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8kHz/32kHz/48kHz

Max. Resolution 3072X2048@30fps (6-Megapixel)
Main Stream
PAL:25fps (3072X2048, 2880x1620,2688x1520,2560x1440,2304x1296) 50fps(1920x1080,1280x720)
NTSC:30fps (3072X2048, 2880x1620,2688x1520,2560x1440,2304x1296)
Sub Stream
PAL:25fps(704x576,704x288,352x288,640x360)
NTSC:30fps(704x480,704x240,352x240,640x360)
Third Stream
PAL:25fps(1920x1080,1280x720,704x576,640x360,704x288,352x288)
NTSC:30fps(1920x1080,1280x720,704x480,640x360,704x240,352x240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance
Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium
lamp/Incandescent lamp/Locked white balance
ROI 8 regions
Corridor mode Yes
EIS N/A
OSD 5regions;16*16/32*32/48*48/64*64/96*96
Picture Overlay 1 region
Privacy Mask 4 regions
Defog Yes

Feature
Alarm Trigger
Motion Detection; Mask Alarm; Voltage Alarm; Disk Full; Disk R/W Error; IP Address
Conflict; MAC Address Conflict; FTP Server Exception; Event Input, Event Output
Video Analytics Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal
Rules of behavior analyses in 1 scene: 8
Early Warning (EW) N/A
Face Mode Face Capture
Face Detection Performance: Detects up to 8 faces at the same scene
Linkage Method send email; trigger sound; trigger recording; trigger capture; notify surveillance center

Network
ANR ANR
Protocols
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; SSL;802.1X; QoS; IPv4; IPv6; PPPOE; Unicast; Multicast; RTCP; ARP; RTP; SRTP; RTSP;
FTP; SFTP; NAS
System Compatibility ONVIF Profile S/T/G/M; CGI; Milestone; RTMP
Remote Connection ≤2
Client Easy7 Smart Client
Mobile Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port
Audio I/O N/A
Alarm I/O N/A
Built-In Mic Yes
Built-In Speaker N/A
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB
Additional interfaces N/A

General
Web Client Language (19 languages): Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -40°-65°C
Operating Humidity 0-95%(non-condensing)
Storage Temperature -40°-65°C
Storage Humidity 0-95%(non-condensing)
Power Supply DC12V±25%, MAX 7W; POE 802.3af, MAX 8W
Protection Surge protection 2000V; Lightning proof 6000V; IP67
Boundary Dimensions 160(L)73(W)73(H)mm
Package Dimensions 195(L)95(W)105(H)mm
Gross Weight 0.65kg
Net Weight 0.52kg
