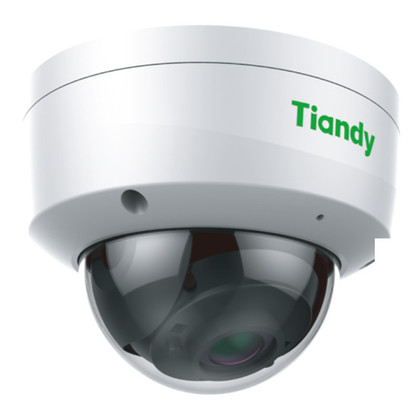

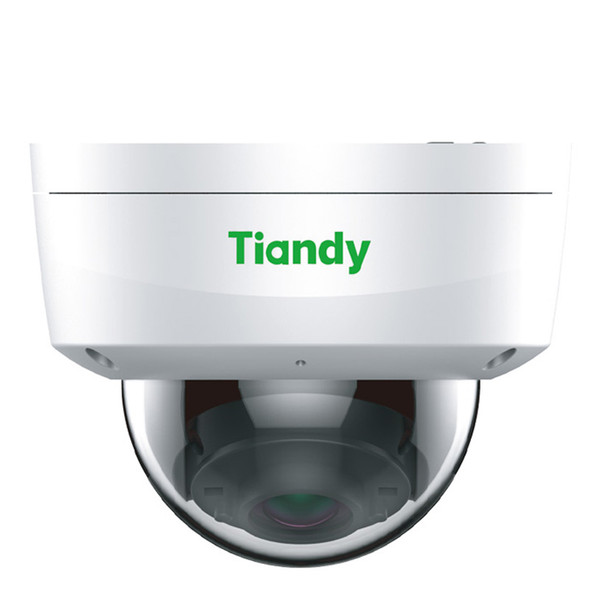

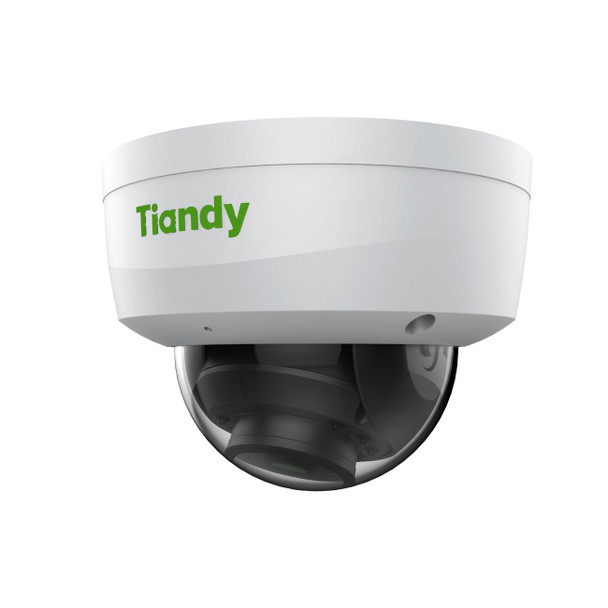

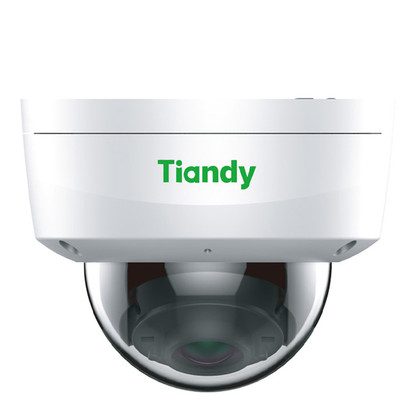

Tiandy TC-C38KS Spec I3/E/Y/M/H/2.8mm/V4.0 4K AI IR Vandal Dome IP Security Camera

Tiandy TC-C38KS Spec I3/E/Y/M/H/2.8mm/V4.0 4K AI IR Vandal Dome IP Security Camera is a solid choice for high performing, smart surveillance in harsh environments. Boasting above average low light color performance with an 8-megapixel image sensor, the device yields impressive evidence detail while its added smart IR Night Vision guarantees around the clock protection. Outfitted with a fixed 2.8mm lens the unit provides a super wide field of view while other perks like its built-in microphone help achieve full scene awareness. A rich selection of video and audio compression methods, multi-streaming to diverse IT protocols promise superior performance and vast 3rd party system integration. Other advantages like a suite of video analytics including A.I. powered video content analysis the device offers multiples of detection types and smart purpose-built functions like People counting to achieve a wide array of system requirements.

Tiandy TC-C38KS Spec I3-E-Y-M-H-2.8mm-V4.0 4K AI IR Vandalproof Dome IP Camera includes the classic vandal-resistant dome style casing which includes a high impact rating of IK10 built in a rugged metal casing with polycarbonate dome that is also of course weatherproof to high standards. As part of the Pro series, the device offers a variety of benefits including external device support for Alarm and Audio I/O, high-capacity edge storage to flexible power input and optional mounting accessories allowing for all sorts of install demands. With NDAA compliance, the Vandal Dome is ready to serve practically anywhere.

Tiandy TC-C38KS Spec I3EYMH2.8mmV4.0 Main Features:

• Up to 3840×2160@30fps (4K Ultra HD)
• S+265/H.265/H.264/M-JPEG
• Min. illumination Color: 0.003Lux@F1.6
• Smart IR, IR Range: 30m
• Support Video Analytics
• Support A.I. Human/Vehicle Classification
• Built-in Mic
• Plugin Free Web Browser Interface
• Wide Temp. Range: -40°~65°C, 0~95% RH
• Full Metal Case - Polycarbonate Dome
• High Impact Vandal IK10, Weatherproof IP67
• audio I/O 1/1, alarm I/O 1/1
• 12VDC or PoE 802.3af
• NDAA

Tiandy TC-C38KS Spec I3EYMH2.8mmV4.0 Specifications:

Camera
Image Sensor 1/2.8" CMOS 8-Megapixel
Signal System PAL/NTSC
Min. Illumination Color: 0.003Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~330°, tilt 0~75°, rotate 0~350°

Lens
Lens Type Fixed
Focus 2.8mm
Lens Mount M12
Aperture F1.6, Fixed
FOV Horizontal field of view: 96°

Illuminator
IR LEDs 8
IR Range Up to 30m
Wavelength 850nm

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps

Max. Resolution 3840×2160
Main Stream
PAL: 25fps (3840×2160, 3072x2048), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 30fps (3840×2160, 3072x2048), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×480, 352×288)
NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
Third Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD: 16x16, 24x24, 32x32, 48x48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 8

Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes
Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address
Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap,
Safety Helmet Detection, Human/Vehicle Classification

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP, NFS
System Compatibility ONVIF (PROFILE S/T/G/M), SDK, Milestone, CGI, P2P
Remote Connection 7
Client Easy7, EasyLive
Web Version Web6
Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port
Audio 1/1, Mic in
Alarm 1/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512GB

General
Firmware Version -
Web Client Language (17 languages): English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, Ukrainian, German
Operating Conditions -40°～65°C, 0～95% RH
Power Supply DC12V±25%/PoE
Power Consumption MAX: 5W (12V) MAX: 6W (PoE)
Protection IP67, IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Dimensions: Ø 120 x 90mm (Ø 4.72 x 3.54inch)
Weight 0.45Kg (0.99lb)
