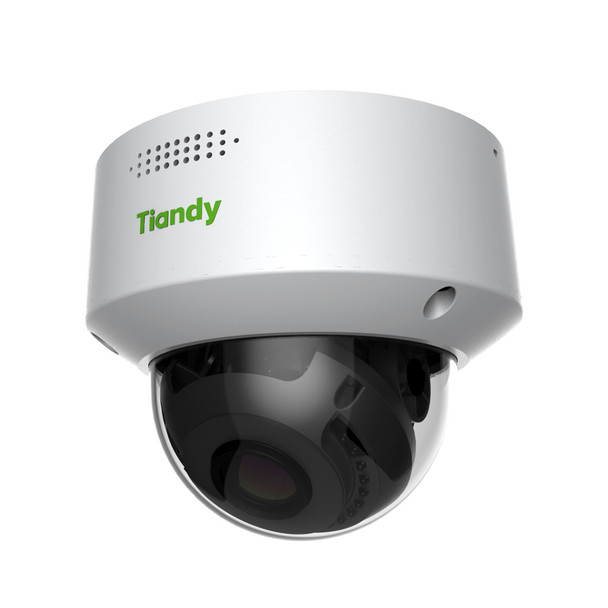

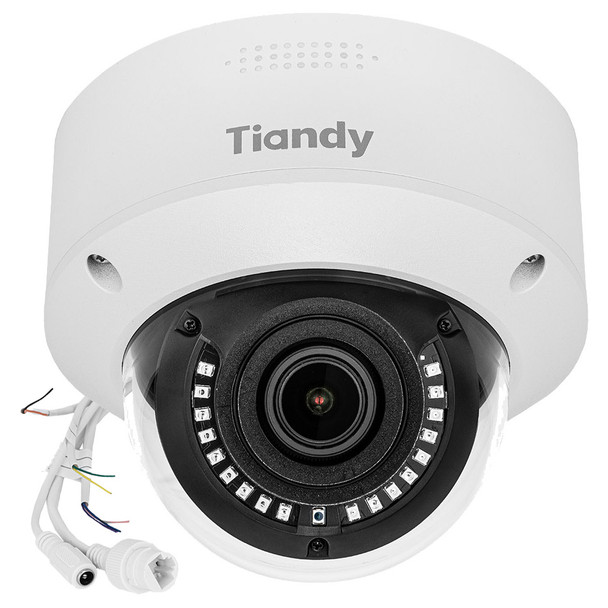

Tiandy TC-C38MS Spec I5/A/E/Y/M/H/2.7-13.5mm/V4.0 4K AI Pro IR Vandal Dome IP Security Camera

Tiandy TC-C38MS Spec I5/A/E/Y/M/H/2.7-13.5mm/V4.0 4K AI Pro Starlight IR Vandal Dome IP Security Camera is a full featured vandalproof dome for professional demands. The camera enables super low light Color imaging and boast up to 4K (8-megapixel) Ultra HD video evidence for incredible scene detail. Benefits including added image enhancements, powerful IR Night Vision and a motorized 5x varifocal lens all combine to offer optimal video security in all types of challenging conditions. Advanced video and audio compressions, multi-streaming to diverse network protocol support ensure industry wide adaptation to all sorts of needs as well as 3rd party system demands, including security, surveillance or otherwise. A wealth of Video Content Analysis options, including A.I. powered video analytic functions are also on-board enabling a wide range of sophisticated detection capabilities with ease.

Tiandy TC-C38MS Spec I5-A-E-Y-M-H-2.7-13.5mm-V4.0 4K AI Pro Starlight IR Vandal Dome IP Security Camera is packed with highly desired attributes from functions like a built-in Microphone to large capacity edge storage couple with its other attributes to enable powerful security even all on its own. The Tiandy Pro Vandalproof Dome Camera is of course built to high rugged standards, its IK10 High Impact, Wide Temp. Range & Weatherproof construction all guarantee reliable operation in even the severest outdoor conditions. Flexible power input to adaptable Alarm and Audio I/O external device connections are all supplied, helping this unit easily adapt to all sorts of installation situations.

Tiandy TC-C38MS Spec I5AEYMH2.713.5mmV4.0 Main Features:

• Up to 8MP / 4K Ultra HD, 3840×2160 @ 30fps
• S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Color:0.002 Lux@ (F1.6, AGC ON), B/W:0Lux with IR
• Motorized 2.7-13.5mm Lens
• IR Night Vision range up to 80m
• Built-in Mic
• Support microSD/ microSDHC /microSDXC card, up to 512GB
• Support smart surveillance
• Support A.I. human/vehicle classification
• Alarm and Audio I/O Connection Support
• Plug-in Free Web Browser Interface
• Vast IT Protocol Support
• Operating conditions -40°C~65°C(-40°F~149°F)
• DC12V±25%, Max. 9.5W, PoE: IEEE 802.3af, Max. 10.5W
• Metal housing with IP67 weatherproof rating
• NDAA Compliant

Tiandy TC-C38MS Spec I5AEYMH2.713.5mmV4.0 Specifications:

Camera
Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.003Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~330°, tilt 0~75°, rotate 0~350°

Lens
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount 14
Aperture F1.6~F3.3, Fixed
FOV Horizontal field of view: 102.7°~29°

Illuminator
IR LEDs 18
IR Range Up to 50m
Wavelength 850nm

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps

Max. Resolution 3840×2160 (4k UHD - 8-megapixel)
Main Stream
PAL: 25fps (3840×2160, 3072x2048), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 30fps (3840×2160, 3072x2048), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement: BLC/3D DNR/HLC/Corridor Format
ROI: Support 8 fixed regions of coding
OSD: 16 16, 24 24, 32 32, 48 48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature
Alarm Trigger: Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics: Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap,
Safety Helmet Detection, Human/Vehicle Classification

Network
ANR N/A
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP, NFS
System Compatibility ONVIF (PROFILE S/T/G/M), SDK, Milestone, CGI, P2P
Remote Connection 7
Client Easy7, EasyLive
Web Version Web6

Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port, RS 485
Audio 1/1, Mic in
Alarm 2/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General
Web Client Language (17 languages): English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, Ukrainian, German
Operating Conditions -35 ～65°C, 0～95% RH
Power Supply DC12V±25%/PoE
Power Consumption MAX: 7.5W (12V) MAX: 9W (PoE)
Protection IP67, IK10,
Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions Φ143×124mm (Φ5.63×4.88inch)
Weight 0.95Kg (2.09lb)
