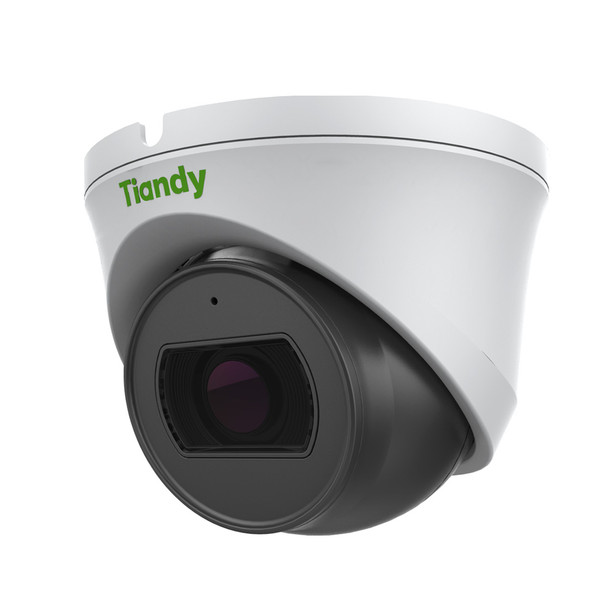

Tiandy TC-C38SS Spec I5/A/E/Y/M/H/2.7-13.5mm 4K AI Pro Starlight IR Turret IP Security Camera

Tiandy TC-C38SS Spec I5/A/E/Y/M/H/2.7-13.5mm 4K AI Pro Starlight IR Turret IP Security Cameras are full featured surveillance solutions boasting high performance and smart functionality. The device enables super low lux Color imaging with a powerful 8-megapixel image sensor that is enhanced with various advanced image processing techniques. Further powerful Smart IR Night Vision combines with a motorized varifocal lens enabling wide area coverage to more semi-telephoto fields of view for easy adaptation to all sorts of requirements. From the latest video and audio compression methods offering superior quality and efficiency, the device likewise includes vast IT network protocols like ONVIF, RTMP or RTSP for industry wide 3rd party system integration including security and otherwise pro-video system demands. Additionally, an extensive suite of Video Analytics including A.I. empowered detections to special purpose analysis are all on-board enabling countless automated abilities with greater effectiveness than ever before.

Tiandy TC-C38SS Spec I5-A-E-Y-M-H-2.7-13.5mm 4K AI IR Turret IP Cameras are a great choice for top tier video security at a great price. The device is compact, yet it’s all metal casing, wide operating temperature range and solid IP67 weatherproof build allow the camera to easily adapt to indoor or outdoor demands even in the harshest environments. Added benefits are numerous, Plug-in Free Web Browser, large edge storage (via micro-SD) to full spectrum alarm and audio I/O connections for external devices are all provided. Simply stated, this Tiandy Turret IP Camera is a top choice for endless professional needs.

Tiandy TC-C38SS Spec I5AEYMH2.713.5mm Main Features:

• Up to 8MP / 4K Ultra HD, 3840×2160 @ 30fps
• S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Color:0.003 Lux@ (F1.6, AGC ON), B/W:0Lux with IR
• Motorized 2.7-13.5mm Lens
• IR Night Vision range up to 80m
• Built-in Mic
• Support microSD/microSDHC/microSDXC card, up to 512GB
• Support smart surveillance
• Support A.I. human/vehicle classification
• Alarm and Audio I/O Connection Support
• Plug-in Free Web Browser Interface
• Vast IT Protocol Support
• Operating conditions -40°C~65°C(-40°F~149°F)
• DC12V±25%, Max. 9.5W, PoE: IEEE 802.3af, Max. 10.5W
• Metal housing with IP67 weatherproof rating
• NDAA Complian

Tiandy TC-C38SS Spec I5AEYMH2.713.5mm  Specifications:

Camera
Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.003Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~340°, tilt 0~75°, rotate 0~360°

Lens
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount 14
Aperture F1.6~F3.3, Fixed
FOV Horizontal field of view: 102.7°~29°

Illuminator
IR LEDs 2
IR Range Up to 50m
Wavelength 850nm

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps

Image:
Max. Resolution 3840x2160 (4k Ultra HD) - 8-Megapixel
Main Stream:
PAL: 25fps (3840×2160, 3072x2048), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 30fps (3840×2160, 3072x2048), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×480, 352×288)
NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
Third Stream:
PAL: 25fps (1280×720, 704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (1280×720, 704×480, 704×240, 640×360, 352×240)

Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD 16 16, 24 24, 32 32, 48 48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 8
Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap,
Safety Helmet Detection, Human/Vehicle Classification

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP, NFS
System Compatibility: ONVIF (PROFILE S/T/G/M), SDK, Milestone, CGI, P2P
Remote Connection: ≤7
Client Easy7, EasyLive
Web Version Web6

Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port, RS 485
Audio 1/1, Mic in
Alarm 2/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General
Web Client Language
17 languages: English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, Ukrainian, German
Operating Conditions -35°C ～ 65°C, 0～95% RH
Power Supply DC12V±25%/PoE
Power Consumption MAX: 8W (12V) MAX: 9.5W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Dimensions Φ132×100mm (Φ5.2×3.94inch)
Weight 0.65Kg (1.43lb)
