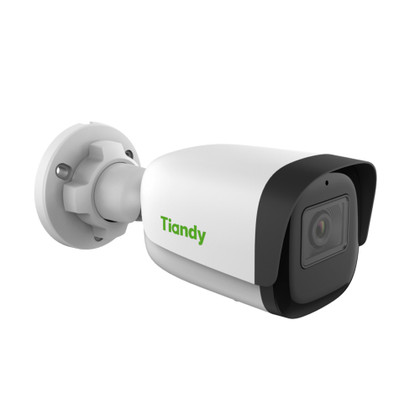

Tiandy TC-C38WS Spec I5/E/Y/M/H/2.8mm/V4.0 4K AI Pro Compact IR Bullet IP Security Camera

Tiandy TC-C38WS Spec I5/E/Y/M/H/2.8mm/V4.0 4K AI IR Bullet IP Security Camera provides rich pro functions, high performance and affordable cost. Boasting an 8-megapixel image sensor the device provides Ultra HD 4k video evidence with superb low light abilities, includes image enhancements and absolute IR Night Vision ensuring optimal 24/7 protection. Offered with a 2.8mm (default) super wide or 4mm (optional) wide fixed lens, the device offers excellent area coverage. Many other benefits can be realized starting with advantages like full function web browser operation that is plug-in free. Likewise, from rich video and audio compression selections to diverse functionality and integration, this Tiandy Pro Bullet Camera delivers even more possibilities than your average security camera. A.I. powered video analytics with human and vehicle classification to unique abilities such as safety helmet detection or heatmap functions, the device is built to enable sophisticated abilities all on its own.

Tiandy TC-C38WS Spec I5-E-Y-M-H-2.8mm-V4.0 4K AI Pro series IR Bullet IP Camera is a compact, weatherproof IP67 rated unit with a wide operating temperature range and full metal housing for reliable use in even harsh outdoor environments. But even more than this, the device is equipped with countless advantages like benefitting 3rd party system integration with vast IT protocol support including ONVIF for security systems and beyond. The Bullet Camera also of course supports edge storage with micro-SD card slot, but even further, it includes a built-in mic, supports Alarm and Audio I/O for external devices and allows easy PoE or 12VDC power input.

Tiandy TC-C38WS Spec I5EYMH2.8mmV4.0 Main Features:

• Up to 3840×2160@30fps (4K Ultra HD)
• S+265/H.265/H.264/M-JPEG
• Min. illumination Color: 0.003Lux@F1.6
• Smart IR, IR Range: 50m
• Support Video Analytics
• Support A.I. Human/Vehicle Classification
• Built-in Mic
• Plugin Free Web Browser Interface
• Wide Temp. Range: -40°~65°C, 0~95% RH
• Full Metal Housing Weatherproof IP67
• audio I/O 1/1, alarm I/O 1/1
• 12VDC or PoE 802.3af
• NDAA

AVAILABLE MODEL
TC-C38WS SPEC: I5/E/Y/M/H/2.8MM/V4.0
TC-C38WS SPEC: I5/E/Y/M/H/4MM/V4.0

Tiandy TC-C38WS Spec I5EYMH2.8mmV4.0 Specifications:

Camera
Image Sensor 1/2.8" CMOS 8-Megapixel
Signal System PAL/NTSC
Min. Illumination Color: 0.003Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, rotate 0~360°

Lens
Lens Type Fixed
Focus 2.8mm/4mm
Lens Mount M12
Aperture F1.6, Fixed
FOV Horizontal field of view: 96° (2.8mm)/84.8° (4mm)

Illuminator
IR LEDs 2
IR Range Up to 50m
Wavelength 850nm

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps

Max. Resolution 3840×2160 (4K Ultra HD)
Main Stream
PAL: 25fps (3840×2160, 3072x2048), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 30fps (3840×2160, 3072x2048), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 8 fixed regions of coding
OSD: 16×16, 24×24, 32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time,
Total 8 Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Video Abnormal, Audio Abnormal
Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty Detection, Heatmap, Safety
Helmet Detection, Human/Vehicle Classification

Network
ANR Yes (Only Support Tiandy ANR NVR)
Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,802.1x, SNMP, SSL, QoS, Telnet, RTMP; SFTP; Multicast; NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
Remote Connection 7
Client Easy7, EasyLive
Web Version Web6

Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port
Audio 1/1, Mic in
Alarm 1/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General
Web Client Language (17 languages): English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, Ukrainian, German
Operating Conditions -40°～65°C, 0～95% RH
Power Supply DC12V±25%/PoE
Power Consumption MAX: 6W (12V) MAX: 7W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Dimensions: 160.8 × 68 × 74.5mm (6.33 × 2.68 × 2.93inch)
Weight 0.50Kg (1.10lb)
