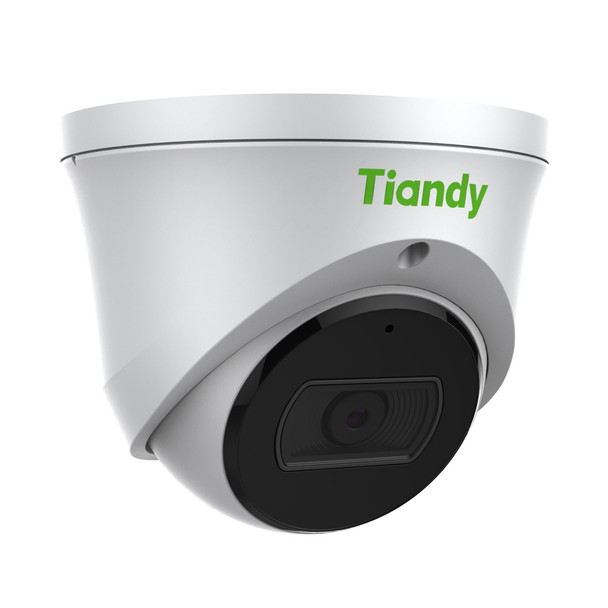

Tiandy TC-C38XS Spec I3/E/Y/M/H/2.8mm/V4.0 4K AI IR Turret IP Security Camera

Tiandy TC-C38XS Spec I3/E/Y/M/H/2.8mm/V4.0 4K AI IR Turret IP Security Camera provide impressive ultra-HD video, smart functionality, diverse integration, excellent quality and more all at a great cost. The units 8-megapixel image sensor not only provides exceptional 4K Ultra HD clarity, but it along with Tiandy’s image enhancements achieves leading low light performance which is further coupled with a super wide-angle lens and unfailing IR night vision for around the clock, wide area protection with maximum clarity. Cutting edge video and audio compression methods are paired with diverse IT network protocol support, ensuring vast integration capabilities to 3rd party systems with protocols like ONVIF, RTMP, RTSP and so on. Beyond that, this Tiandy Pro series Turret Security Camera featuring a range of intelligent abilities like A.I. powered Video Analytics capable of numerous detection types and functions for a new age in smart security.

Tiandy TC-C38XS Spec I3-E-Y-M-H-2.8mm-V4.0 4K AI IR Turret IP Camera are compact yet robust being constructed in a full metal housing that has a rugged IP67 weatherproof rating. Install is easily achieved on nearly any surface while optional mounts exist. Flexible connectivity for Alarm and Audio I/O enables customized external device support while a built-in microphone makes comprehensive scene surveillance easy. From edge storage to easy p2p remote connectivity, the Tiandy Pro series Bullet cameras are smartly made to satisfy.

Tiandy TC-C38XS Spec I3EYMH2.8mmV4.0 Main Features:

• Up to 3840×2160@30fps (4K Ultra HD)
• S+265/H.265/H.264/M-JPEG
• Min. illumination Color: 0.003Lux@F1.6
• Smart IR, IR Range: 30m
• Support Video Analytics
• Support A.I. Human/Vehicle Classification
• Built-in Mic
• Plugin Free Web Browser Interface
• Wide Temp. Range: -40°~65°C, 0~95% RH
• Full Metal Housing Weatherproof IP67
• audio I/O 1/1, alarm I/O 1/1
• 12VDC or PoE 802.3af
• NDAA

Tiandy TC-C38XS Spec I3EYMH2.8mmV4.0 Specifications:

Camera
Image Sensor 1/2.8" CMOS 8-Megapixel
Signal System PAL/NTSC
Min. Illumination Color: 0.003Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~340°, tilt 0~75°, rotate 0~360°

Lens
Lens Type Fixed
Focus 2.8mm
Lens Mount M12
Aperture F1.6, Fixed
FOV Horizontal field of view: 96°

Illuminator
IR LEDs 2
IR Range Up to 30m
Wavelength 850nm

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps

Max. Resolution 3840×2160 (4K Ultra HD)
Main Stream:
PAL: 25fps (3840×2160, 3072x2048), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 30fps (3840×2160, 3072x2048), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream:
PAL: 25fps (704×576, 704×288, 640×480, 352×288)
NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
Third Stream:
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Image Setting: Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI: Support 8 fixed regions of coding
OSD 16 16, 24 24, 32 32, 48 48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 8
Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address
Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap,
Safety Helmet Detection, Human/Vehicle Classification

Network
ANR Yes (Only Support Tiandy ANR NVR)
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP,
NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
Remote Connection 7
Client Easy7, EasyLive
Web Version Web6

Interface
Communication Interface 1 RJ45 10M/ 100M self-adaptive Ethernet port
Audio 1/1, Mic in
Alarm 1/1
Reset Button N/A
On-board storage Built-in Micro SD card slot, up to 512GB

General
Web Client Language (17 languages): English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, Ukrainian, German
Operating Conditions -40° ～65°C, 0～95% RH
Power Supply DC12V±25%/PoE
Power Consumption MAX: 6W (12V) MAX: 7W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions 116.6 83.7mm (4.59 3.30inch)
Weight 0.50Kg (1.10lb)
