Tiandy TC-H3169M Spec: 63X/LW/P/A/AR 16MP Panoramic 63x AEW IR PTZ IP Security Camera

Tiandy TC-H3169M-Spec-63X-LW-P-A-AR 16MP Panoramic 63x AEW IR PTZ Security Camera demonstrates comprehensive intelligent IP video surveillance with large area protection from a single device. Featuring the combination of a 180° Panoramic Camera array plus an ultra-high powered 63x Pan-Tilt-Zoom 4-Megapixel Camera within a single housing this Tiandy surveillance solution unveils numerous market leading attributes and capabilities. Tiandy well known for producing innovative PTZ IP cameras once again introduces the next generation in intelligent video security with this 16MP Panoramic Pan-Tilt-Zoom Camera. Packed with cutting edge advances in all aspects, the device combines superior imaging with superior function and design. Boasting powerful IR Night Vision, White Light and Flashing Light LEDs, Green Laser Pointer and even built-in speaker the device incorporates enhanced video analytics with operations of "Active Deterrence" which Tiandy refers to as Auto-Tracking Early Warning (AEW) allowing this unit to perform impressive stand-alone automated deterrent actions.

Tiandy TC-H3169M-Spec-63X-LW-P-A-AR 16MP Panoramic 63x AEW IR PTZ Security Cameras are a high-end, professional surveillance system solution loaded with pro features. Edge storage to full function, plug-in free web browser interface is but only the beginning, with a wide variety of operating modes the device can easily adapt to various demands. Advantages like universal 3rd party system integration are enabled with protocols like ONVIF while from network protocols to I/O integration for external devices, the Tiandy 16MP Panoramic PTZ Network Camera promises diverse integration abilities. From exceptional long range 63x optical zoom, to high precision, high speed Pan and Tilt movement, the function list rivals any Pro PTZ camera system. Tiandy PTZ Camera TC-H3169M Spec: 63X/LW/P/A/AR is built with a weatherproof IP66 rating and with perks like a built-in Wiper to extended operating temperature range, there is few places this Panoramic PTZ Camera can't conquer.

TC-H3169M Spec: 63X/LW/P/A/AR Main Features:

• Panoramic 180° 12MP (13.25MP) + 63x 4MP PTZ Camera in one
• Powerful IR Night Vision
• Intelligent AEW (auto-tracking early warning)
• LASER POINTER, WHITE / RED / BLUE FLASHING LIGHT LEDS
• Built-in Speaker & Microphone - Two Way Audio
• Built-in Wiper (PTZ)
• RS-485 PTZ Control - BNC (for debug)
• Multi-Language Plug-in Free Web Browser
• IP66 Weatherproof Outdoor Ready
• ONVIF for 3rd party systems
• NDAA
• Supports DC 36V POWER

Panoramic Camera Features:

·Four 1/1.8" CMOS
·Up to 5520x2400@30fps (13.25MP)
·Horizontal: 180°, Verticle:85°
·Min. illumination Color: 0.0004Lux @ F1.0
·Support region clipping
·Support distortion correction

PTZ Camera Features:

·Up to 2560*1440@30fps
·Optical zoom: 63×, digital zoom 16×
·Support 3d position
·Laser Distance: 500m
·Auto-Tracking Early Warning (AEW)
·Auto Wiper
·IP66

Camera

Image Sensor
Panorama: 1/1.8"CMOS
Detail: 1/1.8"CMOS

Min. Illumination:
Panorama:0.0004lux
Detail:0.001lux

Shutter Time:
1s~1/100000s

Day Night:
IR-cut filter with auto switch (ICR)
Smart IR: Yes
WDR:
Panorama: DWDR
Detail:120dB

Lens

Focal Length
Panorama:2.8mm
Detail:5.7mm～359mm

Optical Zoom
Detail:63X

Digital Zoom
Detail:16X

Zoom Speed
Detail:<8s

Aperture Range
Panorama: F1.0
Detail: F1.63~F4.94

Aperture Type
Panorama: Fixed
Detail: Auto(P-Iris)

Field of View
Panorama:180°±10°(H);90°±10°(V)
Detail:60°~1.5°(H); 35.5°~0.87°(V); 67.5°~1.77°(D)
Focus Control
Detail: Auto/Semi-auto/Manual
Close Focus Distance
Panorama:200mm
Detail:1000mm~3000mm
DORI Distance
Panorama: Detect:63m; Observe:25m; Recognize:12m; Identify:6m
Detail: Detect:3800m; Observe:1508m; Recognize:760m; Identify:380m

Pan & Tilt Specs

Pan Range
Detail: 0°~360°
Pan Speed
Detail: Manual Speed:0.1°～200°/s; Preset Speed:240°/s
Tilt Range
Detail: -21°~90° (Default -13°~90°)
Tilt Speed
Detail: Manual Speed:0.1°～120°/s; Preset:180°/s

3D Position: Yes
Presets: 500
Cruise: 16, up to 32 presets per cruise
Scan: 8
Patterns: 8, each with 600s memory or 1000 orders
Scheduled Task: Preset, Cruise, Scan, Pattern
North Point: Yes
Power-off Memory: Yes
Preset Freezing: Yes

Illuminator

IR LEDs
Detail:11
IR Distance
Detail:300m
Wavelength
Detail:850nm
IR Irradiation Angle
Detail: Yes

White LEDs
Detail:2
White light Distance
Detail:30m
Red and Blue Alarm Flash Yes

Laser Distance Detail: 500m

Compression Standards

Video Compression
Panorama:S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG (MJPEG) Detail:S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG (MJPEG)
Video Bit Rate
Panorama:32Kbps~16Mbps
Detail:32Kbps~16Mbps

Audio Compression: G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate: 8KHz/32KHz/48KHz

Image Max. Resolution
Panorama:5520×2400@30fps
Detail:2560×1440@30fps

Main Stream:
Panorama:
PAL:25fps (5520×2400,4096×1800,3840×1680,2784×1200)
NTSC:30fps (5520×2400,4096×1800,3840×1680,2784×1200)
Detail:
PAL:25fps (2560×1440,2304×1296,1920×1080,1280×720) NTSC:30fps (2560×1440,2304×1296,1920×1080,1280×720)

Sub Stream
Panorama:
PAL:25fps (2048×896,1280×560,704×320)
NTSC:30fps (2048×896,1280×560,704×320)
Detail:
PAL:25fps (704×576,704×288,352×288,640×360)
NTSC:30fp (704×480,704×240,352×240,640×360)

Third Stream
Panorama:
PAL:25fps (1280×560)
NTSC:30fps (1280×560)
Detail:
PAL:25fps (704×576,704×288,352×288,640×480)
NTSC:30fps (704×480,704×240,352×240,640×480)

BLC: Yes
HLC: Yes
AGC: Yes
3DNR: Yes
White Balance
Auto/Semi-Auto/Manual/Sunshine/Natural Light/Warm light Lamp/Daylight Lamp/Filament Lamp/Lock White Balance

ROI
Panorama: 7 Fixed Areas for Both Main and Sub Stream Detail 7 rectangular 3D fixed focus areas, supporting 1 rectangular dynamic tracking ROI

EIS (Electronic Image Stabilization)
Panorama/A
Detail: Yes

OSD 5 regions (Each region can have a maximum of 127 characters, up to 5 lines);
Panorama: 16*16/24*24/32*32/48*48/64*64/72*72/96*96/128*128/adaptable size
Detail: 16*16/24*24/32*32/48*48/64*64/96*96/adaptable size

Defog: Yes

Flip
Panorama: Normal
Detail: Normal/Inverted Flip

Regional Exposure Detail: Yes
Regional Focus Detail: Yes
Demist: Yes

Privacy Mask
Panorama:8 regions
Detail:24 regions

Feature

General Alarm
Panorama: Motion Detection
Detail: Motion detection; Mask Alarm; Alarm Input

Exceptions Alarm:
Disk Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address Conflict; FTP Server Exception; Network cable disconnected

Linkage Method:
Send Email; Trigger Sound; trigger warm light; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output

A.I. Video Analytics:
Panorama: Tripwire, Double Tripwire, Heatmap, Human/Vehicle Classification
Detail: Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Loitering, Running, Parking, Crowed Detection, People Counting, Safety Helmet Detection, On Duty Detection, Video Abnormal, Audio Abnormal, Human/Vehicle Classification

Auto Early Warning (AEW): Yes
Auto-Tracking: Yes
Face Mode: Face Capture
Face Capture Performance
Detect up to 32 faces at the same scene; Capture up to 16 faces at the same scene

Network
ANR Yes
Protocols
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6; PPPoE; Unicast; Multicast; ARP; RTP; SRTP; FTP; SFTP

System Compatibility
ONVIF (Profile S/T/G/M); SDK; CGI; RTSP; RTMP
Remote Connection ≤7
User/Host
Up to 32 users. 4 user levels
Client
Easy7 VMS
Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface
Communication Interface
1*RJ45 (10/100Base-T)
Audio I/O:
1*Input Impedance 1kΩ,2.0~2.4Vp-p; 1*Output Impedance 600Ω
Alarm I/O:
8*Switching; 2*Switching, Voltage≤DC24V, Current≤1A
Built-in Speaker 1,4Ω4W
Reset Button Yes

On-board Storage
Built-in Micro SD card slot, up to 512 GB

Additional Interfaces /Functions:
RS485; BNC
Wiper: Yes
Electronic Compass: Yes

General
Web Client Language:
17 languages:
Simple Chinese/English/Traditional Chinese/Spanish/Italian/Korean/Turkish/Russian/Thai/ Polish/French/Dutch/Hebrew/Vietnamese/Arabic/German/Ukrainian

Operating Temperature -40°C~70°C (-40°F~158°F)
Operating Humidity: ≤95%RH
Storage Temperature -40°C~70°C (-40°F~158°F)
Power Supply
DC36V±25%
Power Consumption
50W (IR OFF); 76W (IR ON)

Protection: Surge4000V; ESD6000V; IP66
Material: Metal

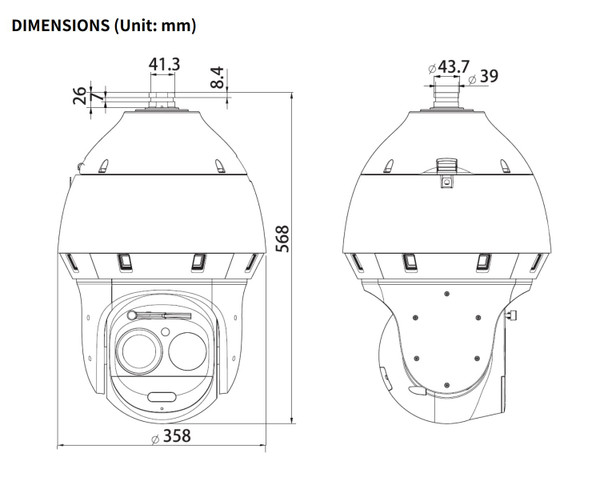

Product Dimensions: 358mm(D)x568mm(H)
Package Dimensions: 565(L)485(W)750(H)mm
Gross Weight: 21.7kg
Net Weight: 14.8kg
