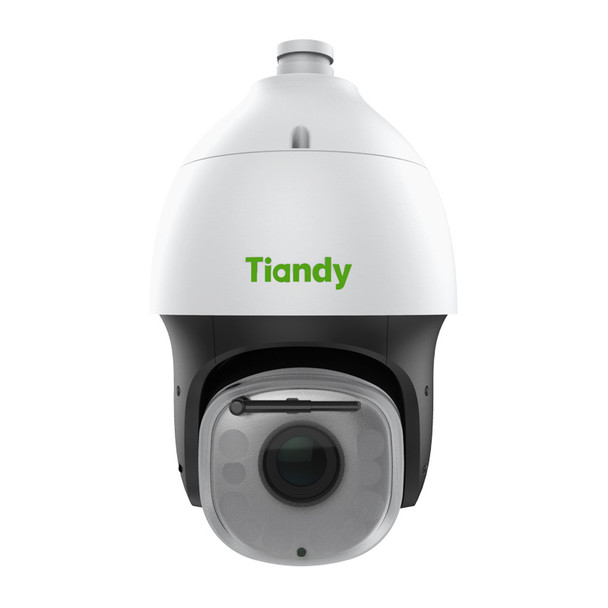

Tiandy TC-H326M Spec: 44X/IW/A/Am 2MP AI 44x AEW IR IP PTZ Security Camera

Tiandy TC-H326M Spec: 44X/IW/A/Am 2MP AI 44x AEW IR IP PTZ Security Camera is a top performer with best-in-class attributes and innovative intelligence. The device boasts a Super Starlight or best in class ultra-low light performance and delivers high-frame rate, high efficiency 2-megapixel (1080P) Full HD video with support for multi-streaming. From image enhancements like (WDR Wide Dynamic Range), DNR (2D+3D Digital Noise Reduction), EIS (Electronic Image Stabilization) to Defog, the device can easily adapt to all sorts of challenging lighting and environmental conditions. In fact, the Tiandy TC-H326M Spec-44X-IW-A-Am 2MP AI 44x AEW IR PTZ IP Camera is also equipped with powerful IR Night Vision as well as a built-in White Light LED array enabling diverse, yet absolute illumination even in zero lux scenarios. The Pan-Tilt-Zoom Camera likewise serves perfectly as part of a larger system including video security or other pro-video demands with vast IP protocol support with the likes of ONVIF, SIP, RTSP and RTMP formats all supported.

Tiandy TC-H326M-Spec-44X-IW-A-Am 2MP AI 44x AEW IR IP PTZ Security Cameras yield powerful active or automated security capable of covering large areas. With its 44x optical zoom lens combined with high speed, high accuracy Pan and Tilt operation distant to quick moving objects of interest are all within reach. Built to deliver next generation IP surveillance the device is empowered by A.I. (Artificial Intelligence) Video Analytics as well as Tiandy's AEW (PTZ auto-tracking early warning) active deterrence functions enabling automated video security of large areas even autonomously with high effectiveness. Combining its diverse illumination abilities, including a Green Laser Pointer along with its Built-in Speaker the device can protect large areas even as a stand-alone device with impressive results.

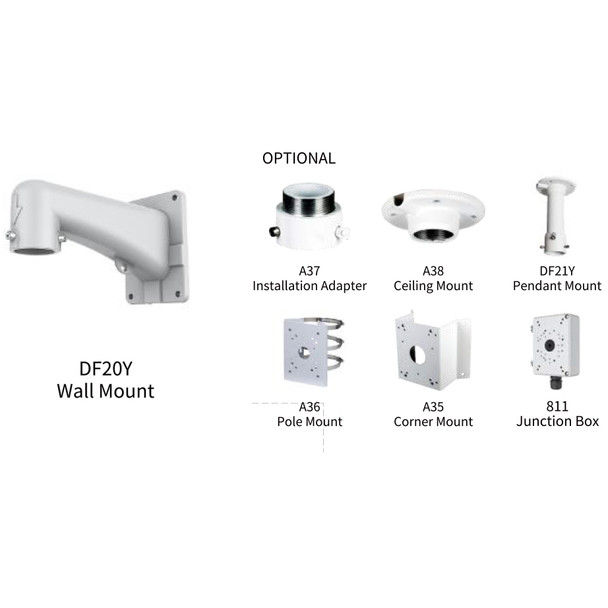

Constructed in an all-metal housing to IP66 weatherproof standards with a wide temperature operating range plus featuring an integrated wiper, this Tiandy PTZ is ready to conquer harsh environments. Likewise, the PTZ camera has a variety of optional mounting accessories supporting the full range of professional install demands. Numerous advantages yet to be mentioned include P2P Q-Code quick connectivity, a full function, plug-in free web browser interface or Free Apps and Software to edge-storage are but a few of the many attributes on-board. For premium performance, quality, functions and even cost, this Tiandy Pan-Tilt-Zoom network camera stands out above most.

Tiandy TC-H326M Spec: 44X/IW/A/Am Main Features:

• Up to 1920×1080 @ 60fps (2x Real-Time)Min. illumination Color: 0.0008 Lux @ F1.5
• Leading Compression Methods: S+265/H.265/H.264/M-JPEG
• Optical zoom: 44×, digital zoom 16×
• Built-in Speaker & Mic - Two-Way Audio
• Support A.I. Human/Vehicle Classification
• Face Capture/intelligent monitoring mode
• Auto-Tracking Early Warning (AEW)
• Smart IR, IR Range: 200m
• White Light LED Illumination
• Green Laser Pointer
• IP66 weatherproof, wide temp, electrical protections
• 24VAC Power Input
• NDAA

Specifications:

Image Sensor 1/1.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.0008 lux @ (F1.6, AGC ON), BW: 0lux with IR
Shutter Time 1s to 1/100,000s
Day & Night IR Cut Filter with Auto Switch

Lens
Optical Zoom 44X (+ Digital Zoom 16X)
Focal Length 6mm~264mm
Zoom Speed <5s
Field of View
Horizontal field of view: 61.8° (w)~2.3° (t)
Vertical field of view:36.3° (w)~1.3° (t)
Aperture Range F1.6~F5.3
Focus Control Auto/Manual
Iris Control Auto
Close Focus Distance 1m‒3m

Pan & Tilt
Pan Range 360°
Pan Speed Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s
Tilt Range -16°~90° (Default -3°~90°)
Tilt Speed Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s
3D Position Yes
Preset 500
Preset Accuracy ±0.3°
Cruise 16, up to 32 presets per cruise
Scan 8
Pattern 8, each with 600s memory or 1000 orders
Scheduled Task Preset, Cruise, Scan, Pattern, Alarm output
Park Action Yes
Power-off Memory Yes
Preset Freezing Yes

Illuminator
IR LEDs 8
IR Distance Up to 200m
IR Irradiation Angle Adjustable by Zoom
White LEDs 2
Green Laser Pointer

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8K～48Kbps

Max. Resolution 2MP (1920x1080)
Main Stream PAL: 50fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480)
NTSC: 60fps (1920x1080, 1280x960, 1280x720, 704x480, 640x480)
Sub Stream PAL: 25fps (704x576, 704x288, 640x360, 352x288)
NTSC: 30fps (704x480, 704x240, 640x360, 352x240)
Third Stream PAL: 25fps (704x576, 704x288, 352x288)
NTSC: 30fps (704x480, 704x240, 352x240)
BLC Yes
HLC Yes
WDR True WDR

Image Stabilization EIS
Fog Digital
White Balance Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
AGC Yes
Noise Reduction 2D/3D
ROI: 7 Dynamic Areas for Both Main and Sub Stream, support 1 auto-tracking ROI
Picture Overlay Yes
Privacy Mask Yes
Smart Defog Yes
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Flip Yes
OSD 16x16, 24x24,32x32, 48x48, 64x64,96x96, adaptable size, Letters such as Week, Date, Time, Total 5 Regions

Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Crowd, People Counting, On Duty Detection, Safety Helmet Detection, Video Abnormal, Audio Abnormal
Early Warning (EW) Yes
Auto-Tracking Yes
Face Detection and Analytics
Operating Mode Face capture, intelligent monitoring optional, default intelligent monitoring
Face Detection Performance Detects up to 16 faces at the same scene
Face Exposure Brightness Default 35, 1~100 brightness optional
Min. Face Pixel Default 80, 19-1920 optional

Network
Protocols:
TCP/HTTP/MULTICAST/UPnP/PPPoE/DDNS/SIP/FTP/NTP/RTSP/RTMP/SNMP/SMTP/802.1X/QoS/HTTPS/IPV4
System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI, P2P
ANR
Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)
Remote Connection ≤7
User/Host Up to 32 users. 4 user levels
Web Version web6
Interface

Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio I/O 1/1
Alarm I/O 8/2
Built-In Speaker Yes
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512GB
RS-485 Yes
BNC Yes (Debugging use)
Wiper Yes
Electronic Compass N/A
GPS/BDS N/A

General
Protection IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Web Client Language
16 languages
Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkish/ Russian/ Thai/ French/ Polish/ Dutch/ Hebraism/ Farsi/Arabic/ Vietnamese
Operating Conditions -30°C~70°C (IR OFF), -30°C~40°C (IR ON), 0-95%RH
Power Supply AC24V±15%
Power Consumption 22W (IR OFF), 43W (IR ON)
Heater N/A
Material ADC12
Package/Boundary Dimensions Φ310x500mm (Φ222x372mm)
Gross/Net Weight 8.9kg (5.45kg)
