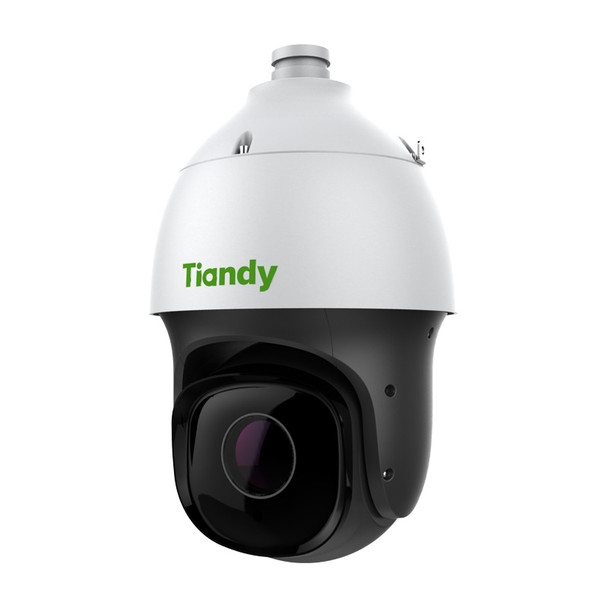

Tiandy TC-H326S Spec: 33X/I/E+/A/V3.0 2MP AI 33x IR PTZ IP Security Camera

Tiandy TC-H326S Spec: 33X/I/E+/A/V3.0 2MP AI 33x IR PTZ IP Security Camera grants exceptional performance, quality and functions for pro network surveillance systems at an effective cost. Delivering sharp 1080p HD video which is rendered in real-time, the camera offers superior low light capabilities plus efficient video compressions and premium image enhancements for optimal video. Further, fundamental attributes like high powered IR Night Vision to long range optical zoom promise the next level in active video security. Harnessing the power A.I. (Artificial Intelligence) with diverse VCA (video content analysis) the PTZ provides next generation smart functions like PTZ auto-tracking to human and vehicle classification for automated operations and more accurate alarm triggers.

Tiandy TC-H326S Spec: 33X/I/E+/A/V3.0 2MP AI 33x IR PTZ IP Camera is packed with numerous perks from the latest technology advances and standards. From a built-in full function, plug-in free web browser interface to easy remote connectivity with P2P and free mobile Apps plus PC software, this Tiandy PTZ is ready to deliver professional IP surveillance, even all on its own. However, a vast selection of IT protocols enabling universal third-party system integration is likewise seamlessly supported, and so for video security and other pro-video demands the device is ready to deliver. Across the board users and installers will find all the key abilities to satisfy a wide range of demands. Requirements including different mounting options or NDAA compliance, edge-storage or a built-in Microphone are only a few of such examples.

Tiandy TC-H326S Spec: 33X/I/E+/A/V3.0 Main Features:

• Up to 1920X1080 @ 30fps (1080p Full HD Real-time)
• Min. illumination Color: 0.001 Lux @ F1.5
• Optical zoom: 33×, digital zoom 16×
• WDR (Wide Dynamic Range) 140dB
• Leading Compression Methods: S+265/H.265/H.264/M-JPEG
• Support Auto-tracking
• S+265/H.265/H.264/M-JPEG
• Built-in Microphone
• Support A.I. Human/Vehicle Classification
• Face Capture/intelligent monitoring mode
• Smart IR, IR Range: 200m
• 12VDC or POE+ (IEEE 802.3at)
• IP66 weatherproof, wide temp, electrical protections
• NDAA

Camera
Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR
Shutter Time 1s to 1/100,000s
Day & Night IR Cut Filter with Auto Switch

Lens
Optical Zoom 33X (Digital Zoom 16X)
Focal Length 4.6mm~152mm
Zoom Speed <4s
Field of View
Horizontal field of view: 60° (w)~2.3° (t)
Vertical field of view: 34.4° (w)~1.5° (t)
Diagonal field of view: 66.7°(w)~2.8° (t)
Aperture Range F1.5~F4.3
Focus Control Auto/Manual
Iris Control Auto
Close Focus Distance 1m‒1.5m

Pan & Tilt
Pan Range 360°
Pan Speed Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s
Tilt Range -16°~90° (Default -3°~90°)
Tilt Speed Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s
3D Position Yes
Preset 500
Preset Accuracy ±0.4°
Cruise 16, up to 32 presets per cruise
Scan 8
Pattern 8, each with 600s memory or 1000 orders
Scheduled Task Preset, Cruise, Scan, Pattern, Alarm output
Park Action Yes
Power-off Memory Yes
Preset Freezing N/A

Illuminator
IR LEDs 10
IR Distance Up to 200m
IR Irradiation Angle Adjustable by Zoom

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8K～48Kbps

Max. Resolution 2MP (1920x1080)
Main Stream PAL: 25fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480)
NTSC: 30fps (1920x1080, 1280x960, 1280x720, 704x480, 640x480)
Sub Stream PAL: 25fps (704x576, 704x288, 640x360, 352x288)
NTSC: 30fps (704x480, 704x240, 640x360, 352x240)
Third Stream PAL: 25fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 704x288, 352x288)
NTSC: 30fps (1920x1080, 1280x960, 1280x720, 704x480, 640x480, 704x240, 352x240)
BLC Yes
HLC Yes
WDR True WDR
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.

Image Stabilization N/A
Fog Digital
White Balance Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
AGC Yes
Noise Reduction 2D/3D
ROI 7 Dynamic Areas for Both Main and Sub Stream, support 1 auto-tracking ROI
Picture Overlay Yes
Privacy Mask Yes
Smart Defog Yes
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Flip Yes
OSD 16x16, 24x24,32x32, 48x48, 64x64, adaptable size, Letters such as Week, Date, Time, Total 5 Regions

Feature
Alarm Trigger Event Input, Event Output, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Crowd, People Counting, On Duty Detection, Safety Helmet Detection, Video Abnormal, Audio Abnormal
Early Warning (EW) N/A
Auto-Tracking Yes
Face Detection and Analytics
Operating Mode Face capture, intelligent monitoring optional, default intelligent monitoring
Face Detection Performance Detects up to 32 faces at the same scene
Face Exposure Brightness Default 35, 1~100 brightness optional
Min. Face Pixel Default 80, 19~1920 optional

Network
Protocols HTTP/HTTPS/TCP/UDP/UPnP/SNMP/DHCP/DNS/DDNS/Easy/DDNS/NTP/SMTP/SSL/802.1X/QoS/IPv4/IPv6/PPPOE/SSH/Unicast/Multicast/RTMP/RTP/RTSP/NFS/SMB/CIFS/FTP
System Compatibility ONVIF (PROFILE S/T/G/M), SDK, CGI, P2P
ANR
Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)
Remote Connection ≤7
User/Host Up to 32 users. 4 user levels
Web Version web6

Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio I/O 1/1
Alarm I/O 1/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB

General
Protection IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Web Client Language
18 languages
Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkish/ Russian/ Thai/French/ Polish/ Dutch/Hebrew/ Arabic/ Vietnamese/ German/ Ukrainian/Portuguese
Operating Conditions -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH
Power Supply DC12V±10% / POE+(IEEE 802.3at)
Power Consumption 14W (IR OFF), 24W (IR ON)
Heater N/A
Material ADC 12
Package/Boundary Dimensions Φ310x500mm (Φ222x372mm)
Gross/Net Weight 7.8kg (5.3kg)
