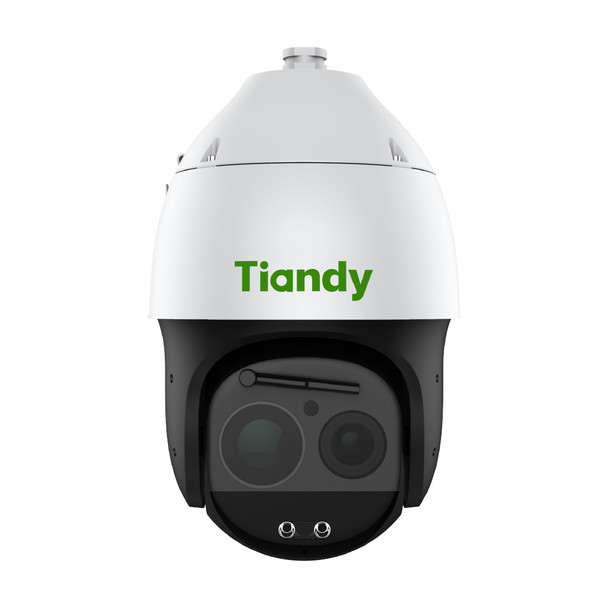

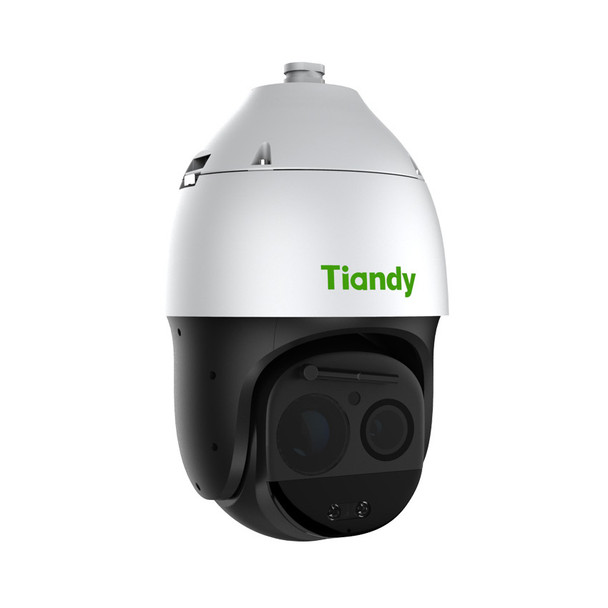

Tiandy TC-H348M Spec: 63X/IL/E++/A 4MP 63x AI AEW IR PTZ IP Camera

Tiandy TC-H348M Spec: 63X/IL/E++/A 4MP 63x AI AEW IR PTZ IP Camera is a high-end Pan-Tilt-Zoom security camera loaded with market leading attributes. The device features a large format Sony Starvis Low Light 4-Megapixel Image Sensor rendering up to real-time 2K (4MP) QHD video with added image enhancements and built-in high-powered illumination. The device is constructed with an industry top 63x (5.7~359mm) optical zoom lens enabling detailed surveillance of distant areas. Cutting edge video compressions like H.265, deep image adjustment settings, multi-streaming to IT protocol standards like RTSP are all on-board for any professional video security or other pro-video system demands. A full function, plug-in free web browser interface along with functions like edge-storage support can easily enable stand-alone operation while other integration standards like the latest ONVIF formats likewise ensure easy adaptation to 3rd party security camera systems.

Tiandy TC-H348M-Spec-63X-ILE++A 63x 4MP AI IR IP PTZ security camera further includes smart capabilities like it's A.I. (Artificial Intelligence) empowered video analysis with operational capabilities like Tiandy's AEW. The PTZ auto-tracking early warning (AEW) solution is an automated, active deterrence solution which utilizes powerful video detections, Pan-Tilt-Zoom intruder Tracking combined with built-in tools like its green laser pointer plus white light LEDs, red and blue light flashing LEDs as well as built-in speaker to deliver visual and audible warnings to deter anyone who enters the PTZ's large protected area. Numerous other advantages are realized on every aspect of the Tiandy TC-H348M Spec: 63X/IL/E++/A PTZ camera build. For instance, the device is fully ready for harsh outdoor conditions with an extended operating temperature range, IP66 weatherproof build and an integrated Wiper. From single cable install support with PoE++ to a variety of optional mounting accessories, the PTZ is well suited for installation in endless scenarios.

Main TC-H348M-Spec-63X-IL-E++-A Main Features:

• 1/1.8" CMOS Sensor
• Up to 4MP 2560x1440@30fps
• Optical zoom: 63×, digital zoom 16×
• Min. illumination Color: 0.001Lux@F1.6
• Smart IR, IR Range: 300m
• Laser Distance: 500m
• Built-in Speaker & Microphone - Two Way Audio
• Built-in Wiper
• Built-in Electronic Compass
• S+265/H.265/H.264/M-JPEG
• Monitoring/Intelligent Monitoring/ Face Capture mode
• Auto-tracking Early Warning (AEW)
• Support Laser Point
• Alarm 8 in and 2 out, Audio 1 in and 1 out
• Plugin Free
• IP66
• DC36V±25%，POE++(IEEE 802.3bt)
• NDAA

Camera
Image Sensor 1/1.8" CMOS 4 Megapixel
Signal System PAL/NTSC
Min. Illumination Color: 0.001 lux@ (F1.6, AGC ON), B/W:0.0001lux@ (F1.6, AGC ON), 0 lux with IR
Shutter Time 1s to 1/100,000s
Day & Night IR Cut Filter with Auto Switch
Optical Zoom 63X
Digital Zoom 16X
Lens Focal Length 5.7-359mm
Zoom Speed <7s
Field of View
Horizontal field of view: 60° (w)~1.54° (t),
Vertical field of view: 35.5° (w)~0.87° (t),
Diagonal field of view:67.5°(w)~1.77(t)
Aperture Range F1.6~F5.0
Focus Control Auto/Manual
Iris Control Auto
Close Focus Distance 1m‒3m

Pan Tilt
Pan Range 360°
Pan Speed Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 240°/s
Tilt Range -21°~90° (Default -13°~90°)
Tilt Speed Tilt Manual Speed: 0.1°~180°/s, Tilt Preset Speed: 180°/s
3D Position Yes
Preset 500
Preset Accuracy ±0.1°
Cruise 16, up to 32 presets per cruise
Scan 8
Pattern 8, each with 600s memory or 1000 orders
Scheduled Task: Preset, Cruise, Scan, Pattern, Alarm output
Park Action Yes
Power-off Memory Yes
Preset Freezing Yes

Illuminator
IR LEDs 11
IR Distance Up to 300m
IR Irradiation Angle Adjustable by Zoom
White LEDs 2, support white/blue/red light flash
Laser 6, Wavelength 850nm
Laser Distance Up to 500m

Compression Standard
Video Compression S+265/H.265/H.264 (High profile, Main profile, Baseline)
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8K～48Kbps

Max. Resolution 4MP (2560x1440)
Main Stream PAL: 25fps(2560x1440,2304x1296,1920x1080,1280x720)
NTSC: 30fps(2560x1440,2304x1296,1920x1080,1280x720)
Sub Stream PAL: 25fps(704x576,704x288,352x288,640x360)
NTSC: 30fps(704X480,704X240,352X240,640x360)
Third Stream PAL:25fps(704x576,704x288,352x288,640x480)
NTSC: 30fps(704X480,704X240,352X240,640x480)
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.

BLC: Yes
HLC: Yes
WDR: True WDR, only in monitoring mode
Image Stabilization EIS, only in monitoring mode
Fog: Digital
White Balance: Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
AGC: Yes
Noise Reduction: 2D/3D
ROI: 7 Dynamic Areas for Both Main and Sub Stream, support 1 auto-tracking ROI
Picture Overlay: Yes
Privacy Mask: Yes
Smart Defog: Yes
Image Setting: Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Flip: Yes
OSD: 16x16, 24x24,32x32, 48x48, 64x64,96x96, adaptable size, Letters such as Week, Date, Time, Total 5 Regions

Feature
Alarm Trigger: Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics: Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Crowd,
People Counting, On Duty Detection, Safety Helmet Detection, Video Abnormal, Audio Abnormal
Early Warning (EW) Three level, Voice warning support 35 voice messages; Laser driven away; Three-light flash warning
Auto-Tracking Yes
Face Detection and Analytics
Operating Mode: Face capture, intelligent monitoring optional, default intelligent monitoring
Face Detection Performance: Detects up to 32 faces at the same scene
Face Exposure Brightness: Default 35, 1~100 brightness optional
Min. Face Pixel Default 80, 19~2560 optional

Network
Protocols TCP/HTTPS/DHCP/DNS/DDNS/EasyDDNS/NTP/SMTP/UpnP/802.1X/QoS/IPv4/IPv6/UDP/PPPOE/SSL/SNMP/Unicast/Multicast
System Compatibility ONVIF (PROFILE S/T/G/M), SDK, CGI, RTSP
ANR {Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)}
Remote Connection: 4
User/Host: Up to 32 users. 4 user levels
Web Version web6
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio I/O: 1/1
Alarm I/O: 8/2
Built-In Speaker: Yes
Reset Button: Yes
On-board storage Built-in Micro SD card slot, up to 512 GB
RS-485: Yes
BNC: Yes (Debugging use)
Wiper: Yes
Electronic Compass: Yes
GPS/BDS: N/A

General
Protection: IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Web Client Language:
17 languages
Simplified Chinese / traditional Chinese / English / Spanish / Italian / Korean / Turkish / Russian / Thai / Polish / French / Dutch / Hebrew / Vietnamese / Arabic / German / Ukrainian

Operating Temperature -40°C~70°C (-40°F~158°F) - (40°C IR on)
Operating Humidity: ≤95%RH
Storage Temperature -40°C~70°C (-40°F~158°F)
Storage Humidity 10%~95%RH (non-condensing)
Power Supply: DC36V±25%; PoE: IEEE 802.3bt
Power Consumption: 37W (IR OFF); 62W (IR ON)
Protection: Surge4000V; ESD6000V; IP66
Material: Metal
Boundary Dimensions 308mm(D)x505mm(H)
Package Dimensions 460(L)460(W)720(H)mm
Gross Weight 17.95kg
Net Weight 12.75kg
