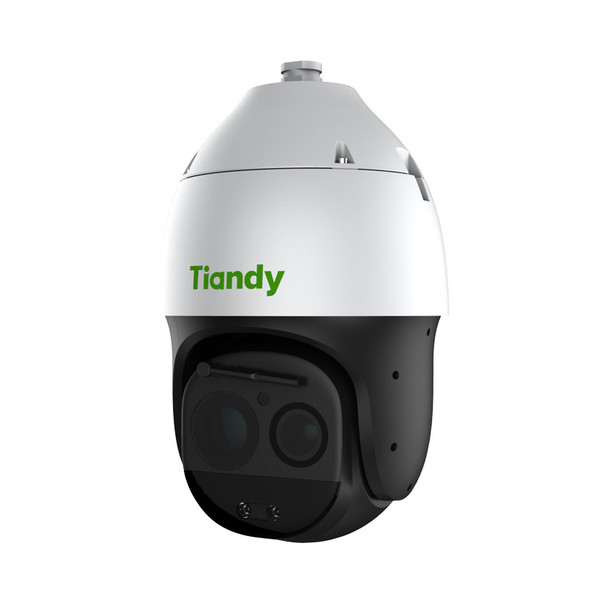

Tiandy TC-H388M Spec: 44X/IL/E++/A 44x 4K AEW AI IR PTZ IP Camera

Tiandy TC-H388M Spec: 44X/IL/E++/A 44x 4K AEW AI IR PTZ IP Camera is a top performing Pan-Tilt-Zoom Security Camera boasting market leading attributes and functions all around. The device couples a large format Sony Starvis 8-Megapixel (4K) UHD sensor with powerful IR Night Vision and numerous image enhancements like True Wide Dynamic Range for superior video clarity in all types of lighting conditions. From real-time video to aspects like multi-streaming or H.265 and like cutting edge compressions methods, this 4K Pan-Tilt-Zoom network security camera promises top tier functionality. In addition to powerful IR Night Vision range of up to 300 meters, the device is also equipped with specialized lighting such as White Light LED illumination. Other unique functions like a Green Laser Pointer as well as other lighting like it's Red and Blue Flashing LEDs combine to benefit part of its active deterrence mode. Featuring Tiandy’s AEW (auto-tracking early warning) the PTZ camera along with other abilities like A.I. Video Analytics or its built-in speaker as well as the aforementioned lighting all couple together for powerful, automated protection capabilities.

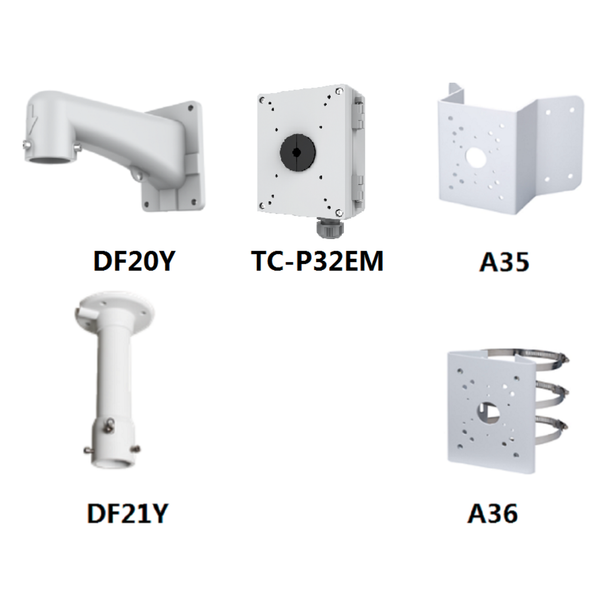

Tiandy TC-H388M-Spec-44X-IL-E++-A 4K 44x AEW IR PTZ IP Security Camera is equally equipped on all fronts. Take for instance its intuitive full operation web browser interface and edge-storage or its universal protocol support the most advanced ONVIF standards and its clear this Tiandy PTZ is ready to impress, be it stand-alone or as part of even larger 3rd party systems. With a robust outdoor IP66 weatherproof construction, wide operating temperature range and built-in Wiper, almost any harsh environment is what this unit was built for. Like any professional, modern PTZ camera this device also offers numerous optional mounting accessories to accommodate all sorts of installs, like pole, wall, ceiling and more. Furthermore, with DC 36v or PoE++ 802.3bt power input, installation can be achieved even with a single network cable. If you seek top tier video surveillance performance plus the advantages of A.I. (artificial intelligence), look no further than Tiandy's TC-H388M-Spec-44XILE++An AI IR PTZ network camera!

Tiandy TC-H388M-Spec-44X-IL-E++-A PTZ Main Features:

• Up to 8MP / 4K 3840×2160 @ 30fps
• 1/1.8” CMOS Sensor Low Light Image Sensor
• Min. illumination Color: 0.001Lux @ F1.6 / 0 Lux w/IR or White Light On
• Built-in Wiper
• Built-in Electronic Compass and EIS
• Built-in Speaker & Microphone - Two Way Audio
• S+265/H.265/H.264/M-JPEG
• Laser & IR LED Night Vision range up to 300m
• Laser Pointer up to 500m
• White Light LED up to 30m + Red / Blue Flashing LEDs
• Built-in Micro SD card slot, up to 512 GB
• Support smart surveillance, detect up to 32 faces at the same scene
• Support AI human/vehicle classification
• Auto-tracking Early Warning (AEW)
• Plugin Free Web Browser
• IP66 Weatherproof
• DC36V±25% or POE++(IEEE 802.3bt)
• NDAA compliant

SPECIFICATIONS:

Image Sensor 1/1.8" CMOS
Min. Illumination Color:0.001lux@ (F1.6, AGC ON),0lux with IR
Shutter Time 1s~1/100000s
Day Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR 120dB, Only supported in monitoring mode, mutually exclusive with anti-shake

Lens
Focal Length 5.7mm～250mm Optical Zoom 44X
Digital Zoom 16X
Zoom Speed <6s
Aperture Range F1.63~F4.94
Aperture Type Auto(P-Iris)
Field of View 60°~2.31°(H); 35.5°~1.3°(V); 67.5°~2.65°(D)
Focus Control: Auto/Semi-auto/Manual
Close Focus Distance: 1000mm~3000mm
DORI Distance: Detect:3800m Observe:1508m Recognize:760m Identify:380m

Pan Tilt
Pan Range 360°
Pan Speed: Manual Speed:0.1°～200°/s / Preset Speed:240°/s
Tilt Range: -21°~90° (Default -13°~90°)
Tilt Speed: Manual Speed:0.1°～120°/s / Preset:180°/s
3D Position Yes
Presets: 500
Cruise: 16, up to 32 presets per cruise
Scan: 8
Pattern: 8, each with 600s memory or 1000 orders
Scheduled Task: Preset, Cruise, Scan, Pattern
North Point: Yes
Power-off Memory: Yes
Preset Freezing: Yes

Illuminators
IR LEDs 11
IR Distance Up to 300m
Wavelength 850nm
IR Irradiation Angle Yes
White LEDs 2
White light Distance 30m
Red and Blue Alarm Flash: Yes
Laser: 6
Laser Distance
Up to 500m

Compression Standard
Video Compression: S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate: 32Kbps~16Mbps
Audio Compression: G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate: 8KHz/32KHz/48KHz

Max. Resolution: 8MP / 4k or 3840×2160 @ 30fps
Main Stream
PAL:25fps (3840×2160,3072×1728,2560×1440,2304×1296,1920×1080,1280×720)
NTSC:30fps (3840×2160,3072×1728,2560×1440,2304×1296,1920×1080,1280×720)
Sub Stream
PAL:25fps (704×576,704×288,640×360,352×288)
NTSC:30fps (704×480,704×240,640×360,352×240)
Third Stream
PAL:25fps (1920×1080,1280×720,704×576,704×288,352×288,640×480)
NTSC:30fps (1920×1080,1280×720,704×480,704×240,352×240,640×480)
BLC Yes
HLC Yes
AGC Yes
3DNR Yes
White Balance:
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warm light Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI:
7 rectangular 3D fixed focus areas, supporting 1 rectangular dynamic tracking ROI
EIS (Electronic Image Stabilization: Yes
OSD: 5 regions (Each region can have a maximum of 127 characters, up to 5 lines); 16*16/24*24/32*32/48*48/64*64/96*96/adaptable size; Vector/Lattice
Defog: Yes
Flip: Normal/Inverted Flip
Regional Exposure: Yes
Regional Focus: Yes
Demist: Yes
Privacy Mask: 24 regions

Feature
General Alarm: Motion Detection; Mask Alarm; Alarm Input

Exceptions Alarm:
Disk Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address Conflict; FTP Server Exception; Network cable disconnected

Linkage Method:
Send Email; Trigger Sound; trigger warm light; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output

AI Video Analytics:
Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Heatmap; Loitering; Running; Parking; People Counting; Crowed Detection; Safety Helmet Detection; On Duty Detection; Video Abnormal; Audio Abnormal

Auto Early Warning (AEW): Yes
Auto-Tracking: Yes
Face Mode: Face Capture
Face Capture Performance:
Detect up to 32 faces at the same scene; Capture up to 16 faces at the same scene

Network
ANR: Yes

Protocols:
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6; PPPoE; Unicast; Multicast; ARP; RTP; SRTP; FTP; SFTP

System Compatibility
P2P; ONVIF (Profile S/T/G/M); SDK; CGI; RTSP; RTMP

Remote Connection: ≤4
User/Host: Up to 32 users. 4 user levels
Client:
Easy7 VMS
Mobile Client
EasyLive Plus
Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface
Communication Interface: 1*RJ45 (10/100Base-T)
Audio I/O:
1*Input Impedance 1kΩ,2.0~2.4Vp-p; 1*Output Impedance 600Ω
Alarm I/O:
8*Switching; 2*Switching, Voltage≤DC24V, Current≤1A
Built-in Speaker:
1,4Ω4W
Reset Button: Yes
On-board Storage: Built-in Micro SD card slot, up to 512 GB

Additional Interfaces

RS485; BNC
Wiper: Yes
Electronic Compass: Yes

General
Web Client Language
17 languages
Simple Chinese/English/Traditional Chinese/Spanish/Italian/ Korean/Turkish/Russian/Thai/ Polish/French/Dutch/ Hebraism/Vietnamese/Arabic/German/Ukrainian

Operating Temperature -40°C~70°C (-40°F~158°F)
Operating Humidity: ≤95%RH
Storage Temperature -40°C~70°C (-40°F~158°F)
Storage Humidity 10%~95%RH (non-condensing)
Power Supply: DC36V±25%; PoE: IEEE 802.3bt
Power Consumption: 37W (IR OFF); 62W (IR ON)
Protection: Surge4000V; ESD6000V; IP66
Material: Metal
Boundary Dimensions 308mm(D)x505mm(H)
Package Dimensions 460(L)460(W)720(H)mm
Gross Weight 17.95kg
Net Weight 12.75kg
